Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

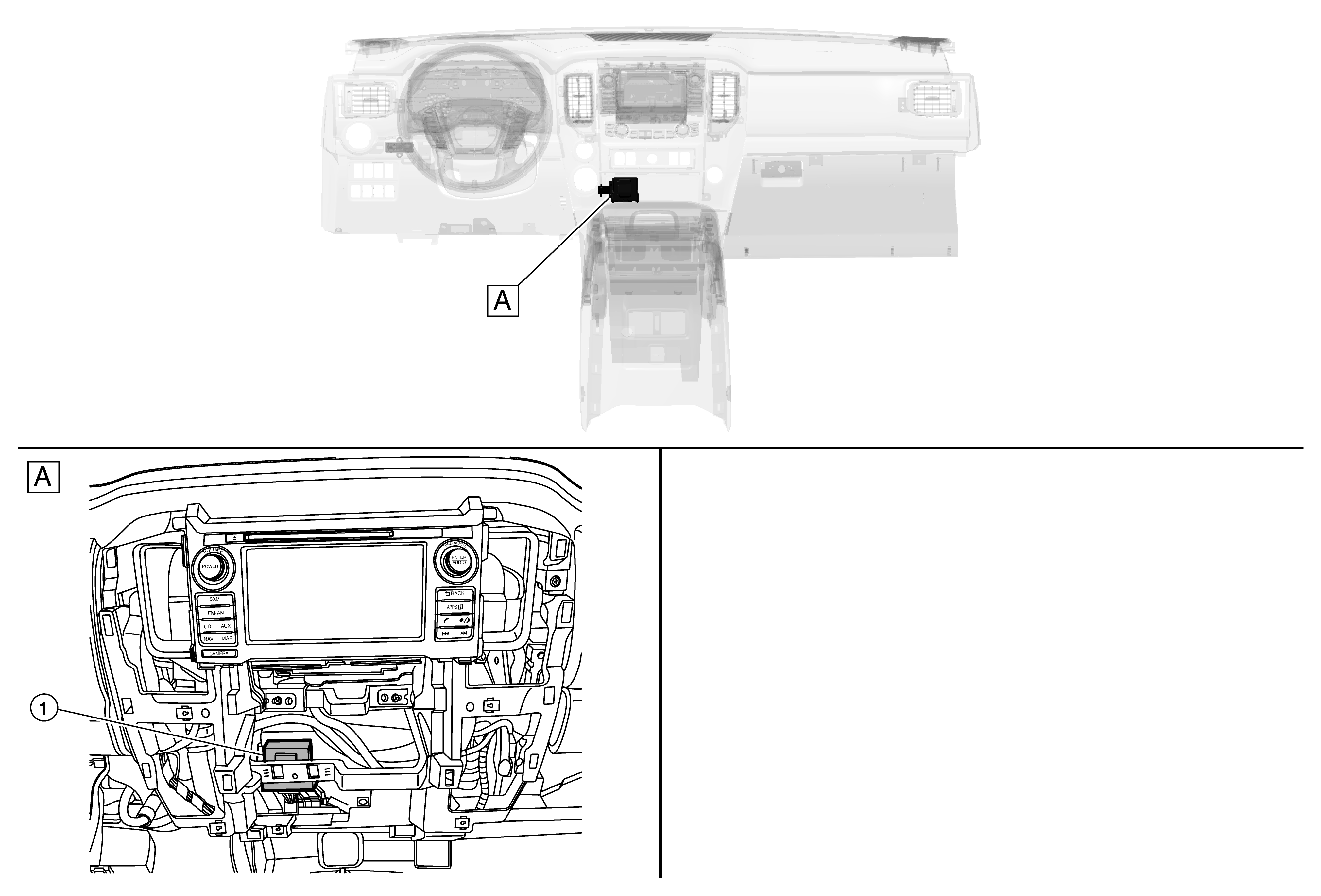

A.
|
View with center console assembly removed.
|
|
No.
|
Component
|
Description
|
|
1.
|
ADAS control unit
|
- Controls each system, based on CAN communication and ITS communication signals received from each control unit.
- Transmits signals necessary for control between CAN communication and ITS communication.
|
