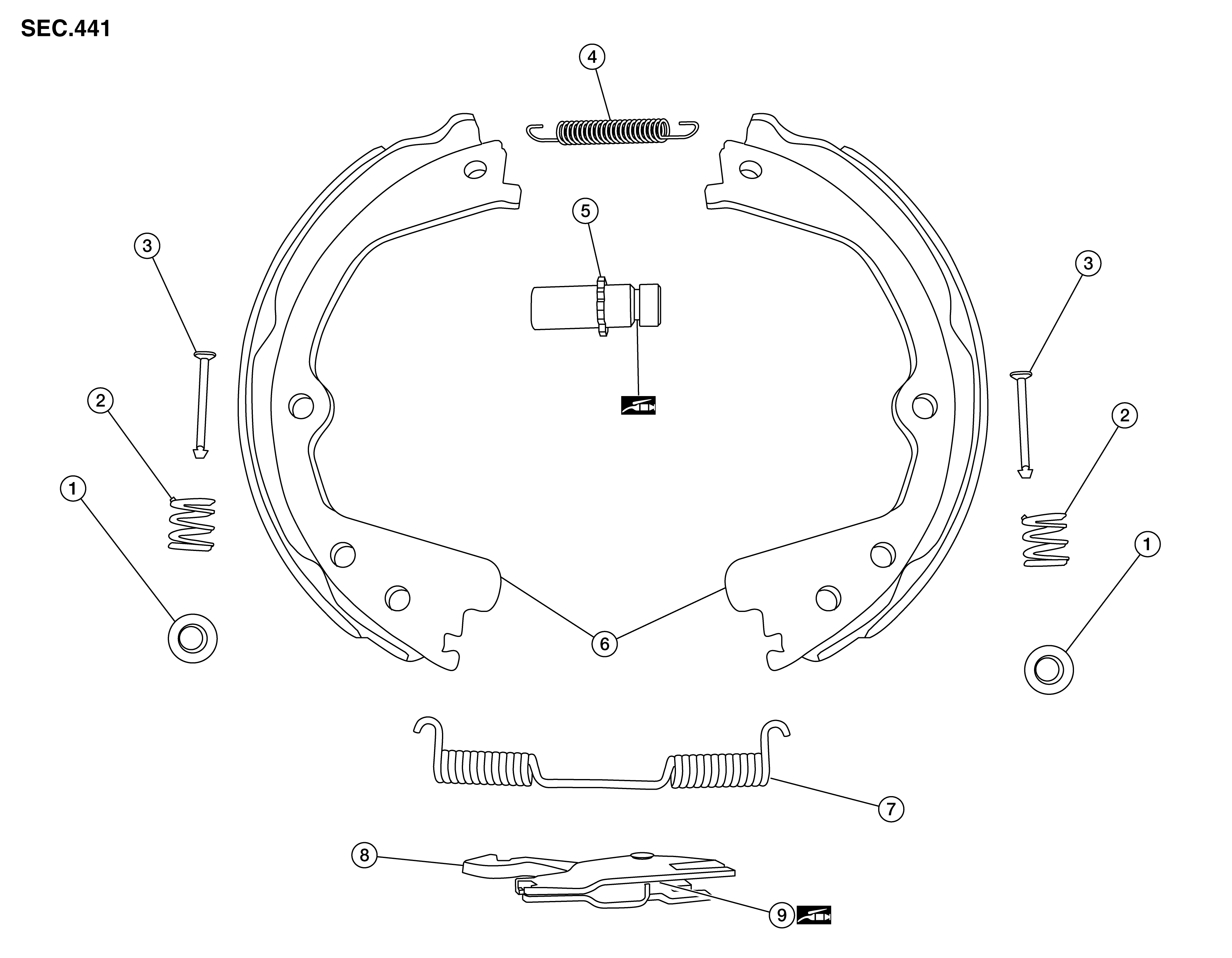

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Retainers
|
2.
|
Retainer springs
|
3.
|
Anti-rattle pins
|
|
4.
|
Upper return spring
|
5.
|
Adjuster
|
6.
|
Parking brake shoes
|
|
7.
|
Lower return spring
|
8.
|
Toggle lever
|
9.
|
Bushing
|
|
|
Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
|
