Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect harness connector from parking brake switch.

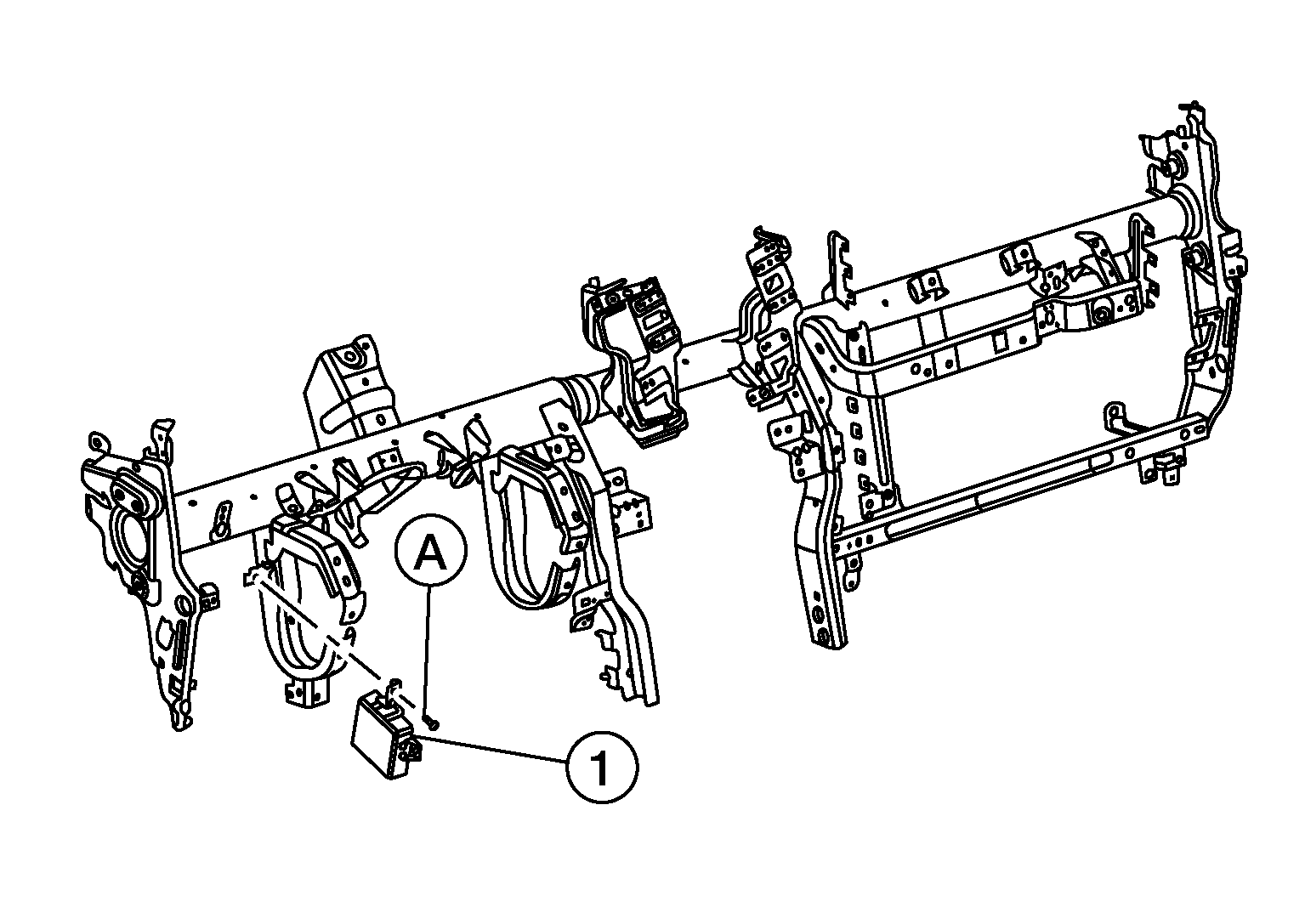

  3. Remove screw (A) and remove sonar control unit (1).
    GNSALNIA1801Z-801Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove harness retainer screw from steering member.

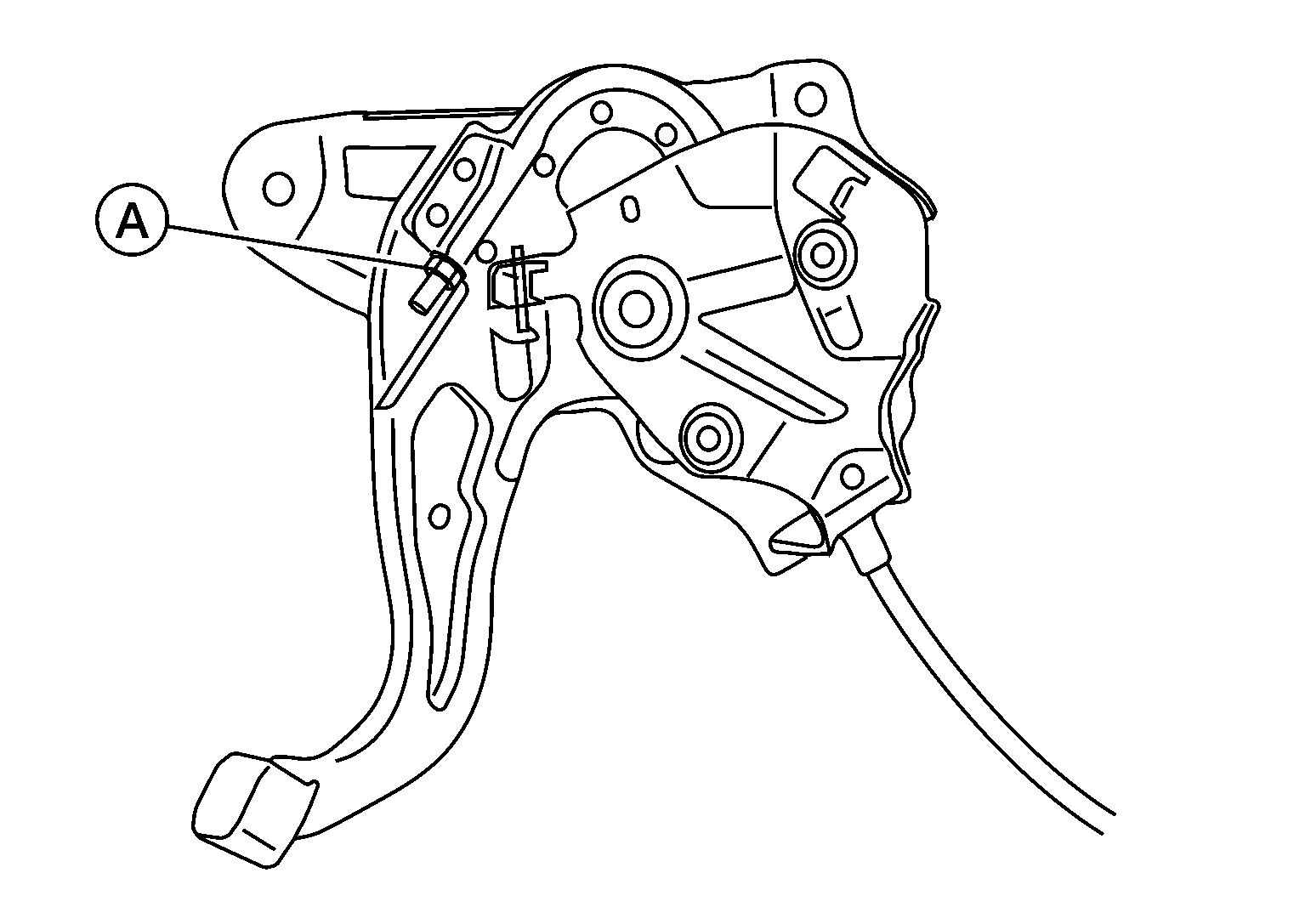

  5. Remove adjusting nut (A).
    GNSALFIA0615Z-615Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse adjusting nut.
  6. Remove parking brake control nuts and remove parking brake control.
  7. Separate parking brake front cable from parking brake control.
  8. Remove parking brake switch.
