Drum Inner Diameter Inspection

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

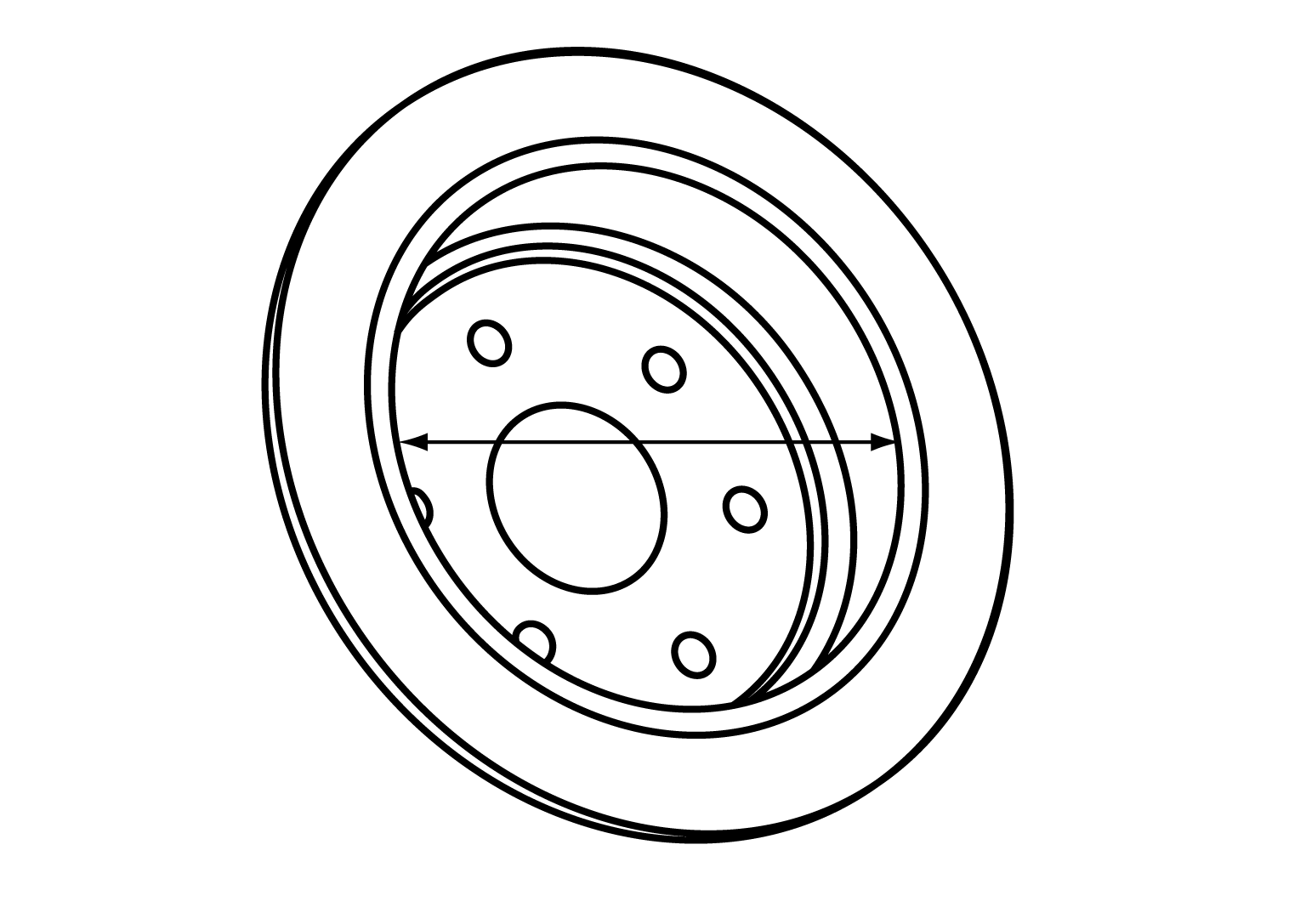

Check inner diameter of drum in rear disc brake rotor using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

Standard inner diameter (new)	: Refer to Parking Drum Brake .
Wear limit of inner diameter	: Refer to Parking Drum Brake .
