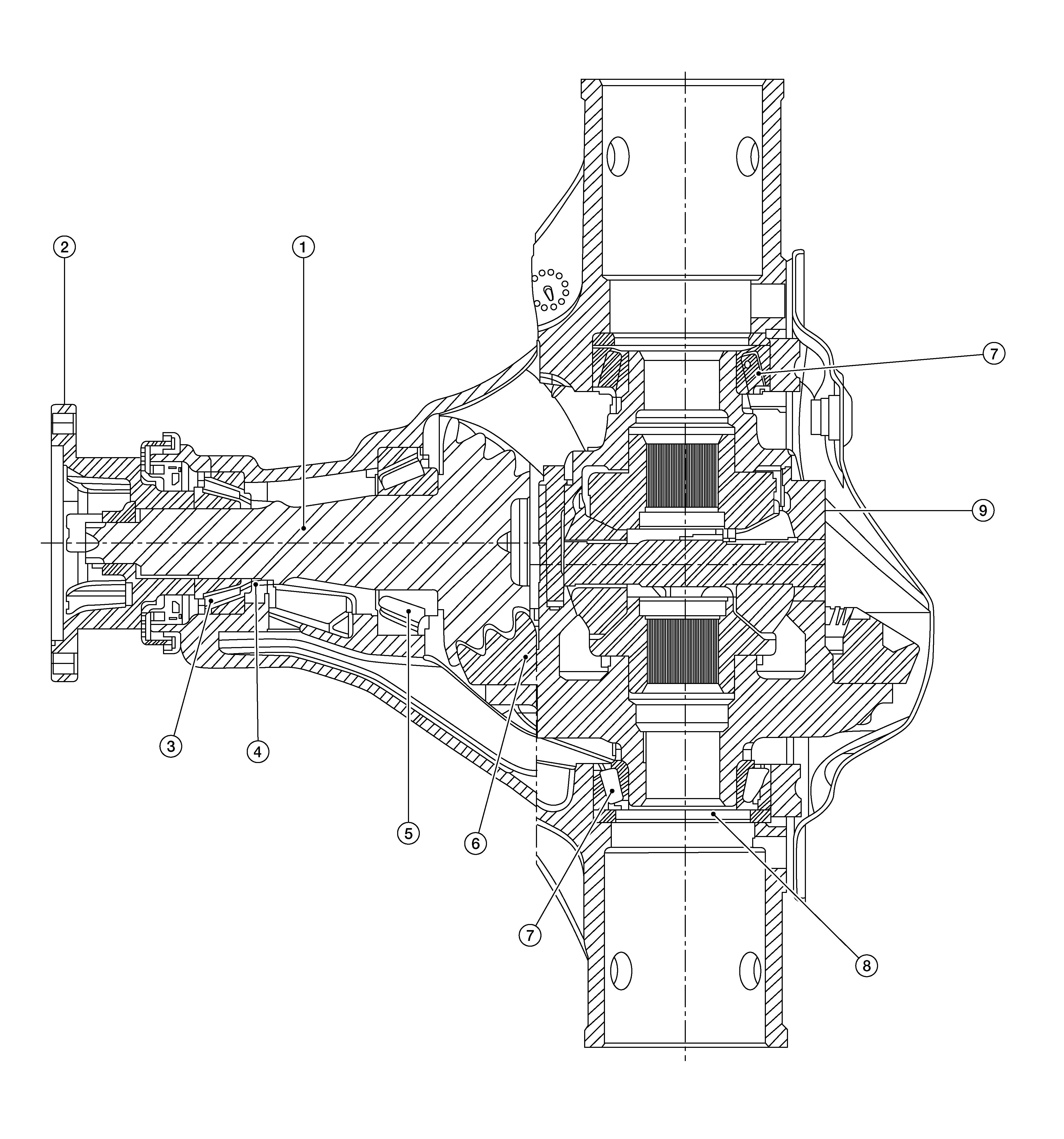

Cross-Sectional View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Drive Pinion
|
2.
|
Companion Flange
|
3.
|
Drive Pinion Front Bearing
|
|
4.
|
Collapsible Spacer
|
5.
|
Drive Pinion Rear Bearing
|
6.
|
Drive Gear
|
|
7.
|
Differential Side Bearing
|
8.
|
Side Bearing Adjusting Shim
|
9.
|
Differential Case
|
