Component Inspection
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK DIFFERENTIAL LOCK POSITION SWITCH
- Turn the ignition switch OFF.
- Remove differential lock position switch. Refer to Removal and Installation .
- Check the continuity between differential lock position switch connector terminals.
Differential lock position switch
Condition
Continuity
Terminal
1
2

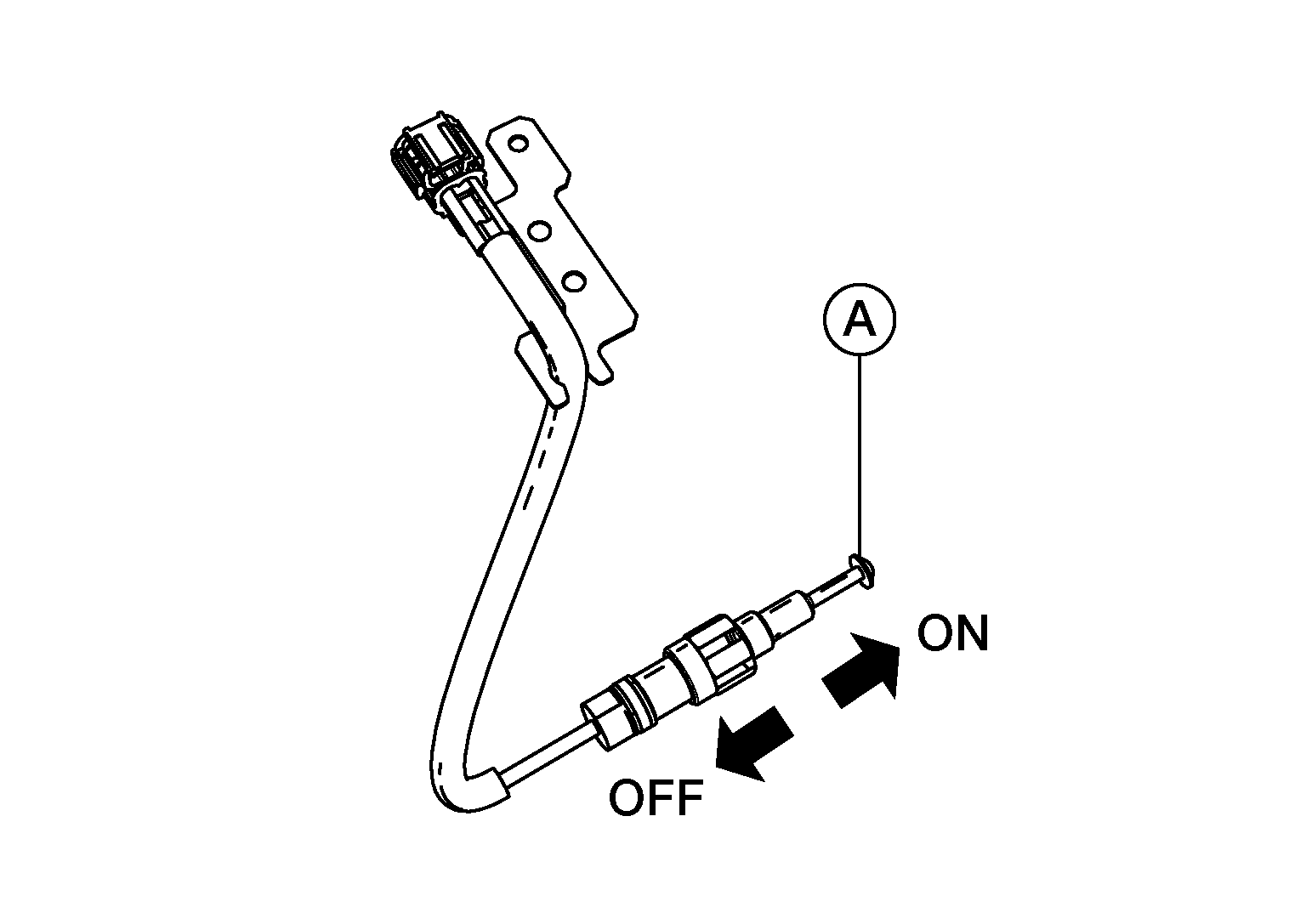

While pulling rod
of differential lock position switch
(Differential system is locked state.)
Yes
While pushing rod
(Differential system is unlocked state.)
No
Is the inspection result normal?
YES
Inspection End.
NO
Replace differential lock position switch. Refer to Removal and Installation .
