Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer assembly under cover. Refer to Removal and Installation .
  2. Remove rear propeller shaft. Refer to Removal and Installation .
  3. Remove front propeller shaft. Refer to Removal and Installation .
  4. Disconnect the harness connectors from the transfer motor, transfer rotary position sensor, mode sensor, and range sensor and separate harnesses from transfer assembly.
  5. Remove transfer breather hose A from transfer assembly. Refer to Exploded View  (Cummins 5.0L models), Removal and Installation - VK56VD Models  (VK56VD models).

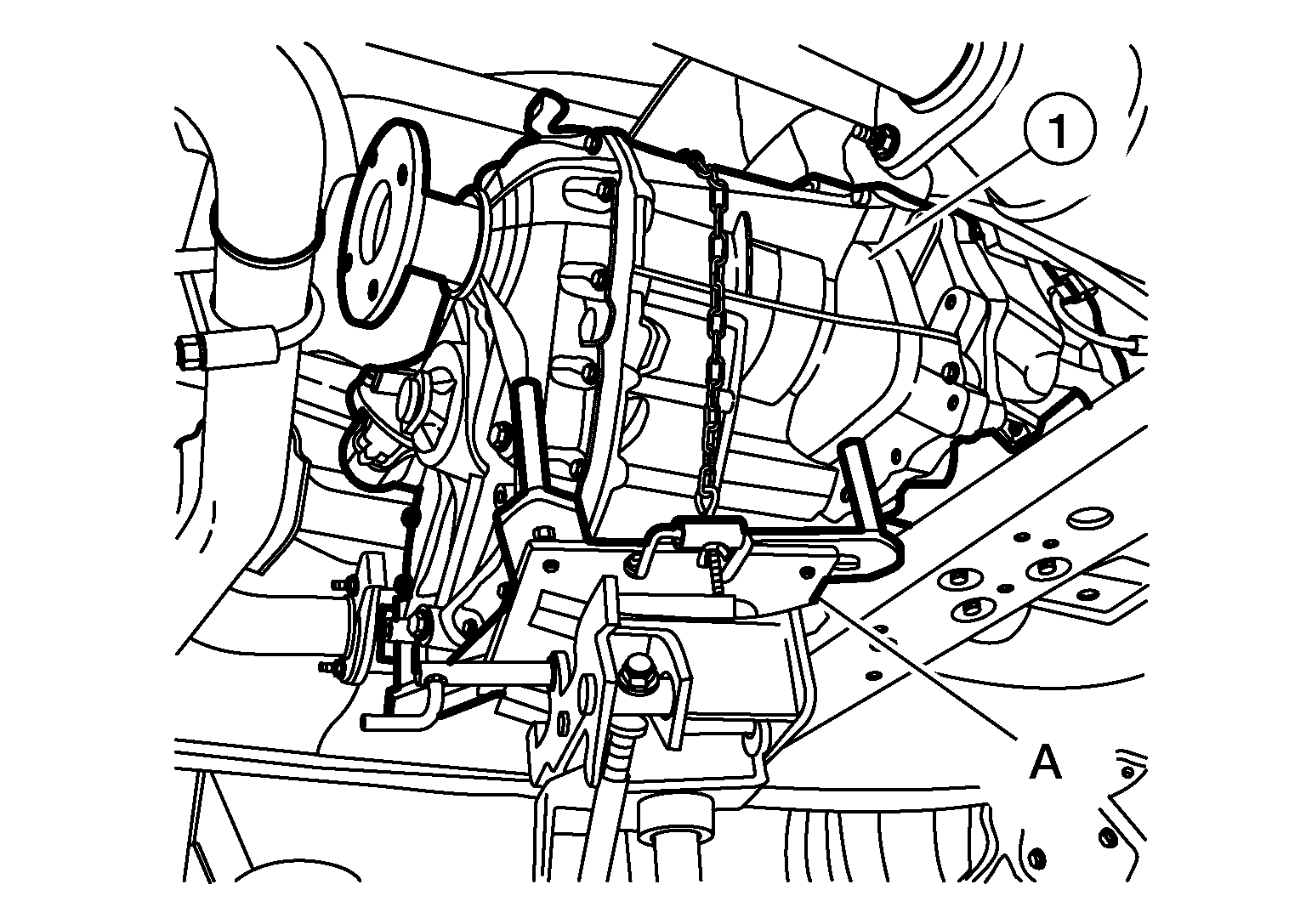

  6. Support transfer assembly (1) with a jack (A).
    GNSDB118025Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Secure transfer assembly to a jack.
  7. Remove transfer mounting bolts and separate transfer from A/T assembly.
    CAUTION: Secure transfer assembly to a jack.
