Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation in the reverse order of removal.

Cummins 5.0L Models:

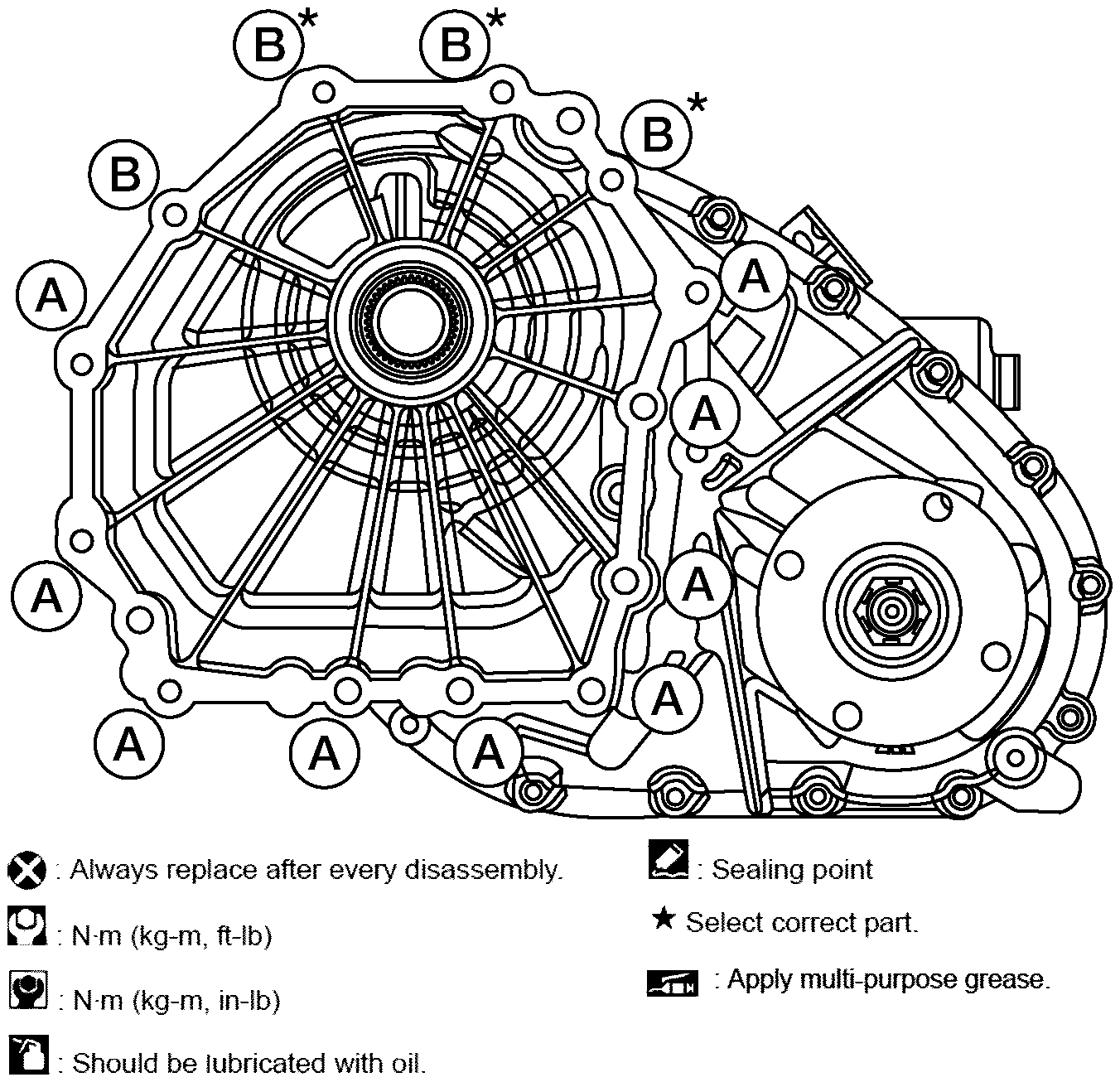

When installing the transfer to the A/T assembly, install the bolts following the standard below, tighten bolts to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol	A	B
Insertion direction	Transmission to transfer	Transfer to transmission

*Tighten bolt with bracket

VK56VD Models:

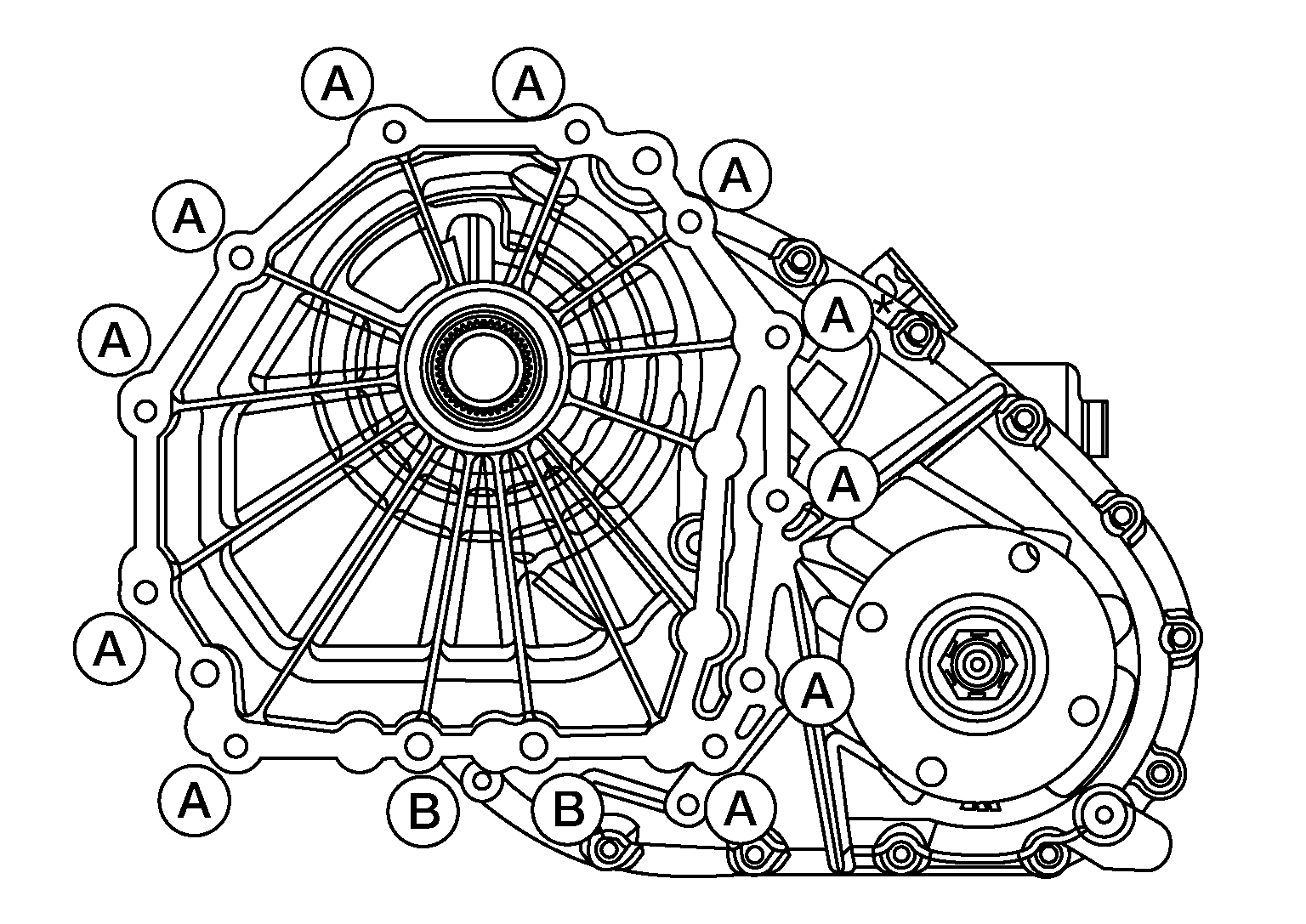

When installing the transfer to the A/T assembly, install the bolts following the standard below, tighten bolts to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol	A	B
Insertion direction	Transmission to transfer	Transfer to transmission

*Tighten bolt with bracket
