Torque Distribution Flow

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

2WD Mode

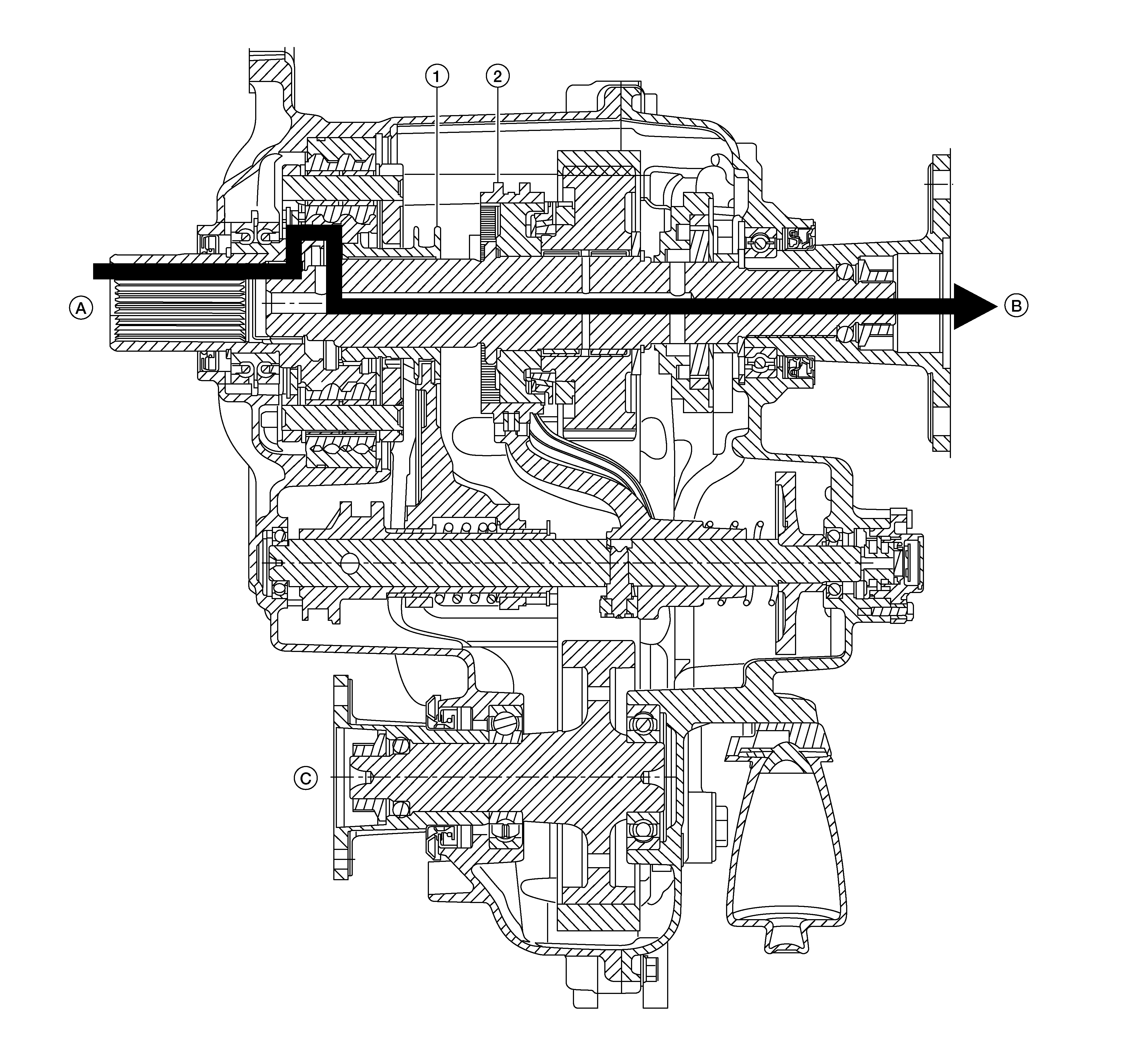

GNSALDIA1091Z-091Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

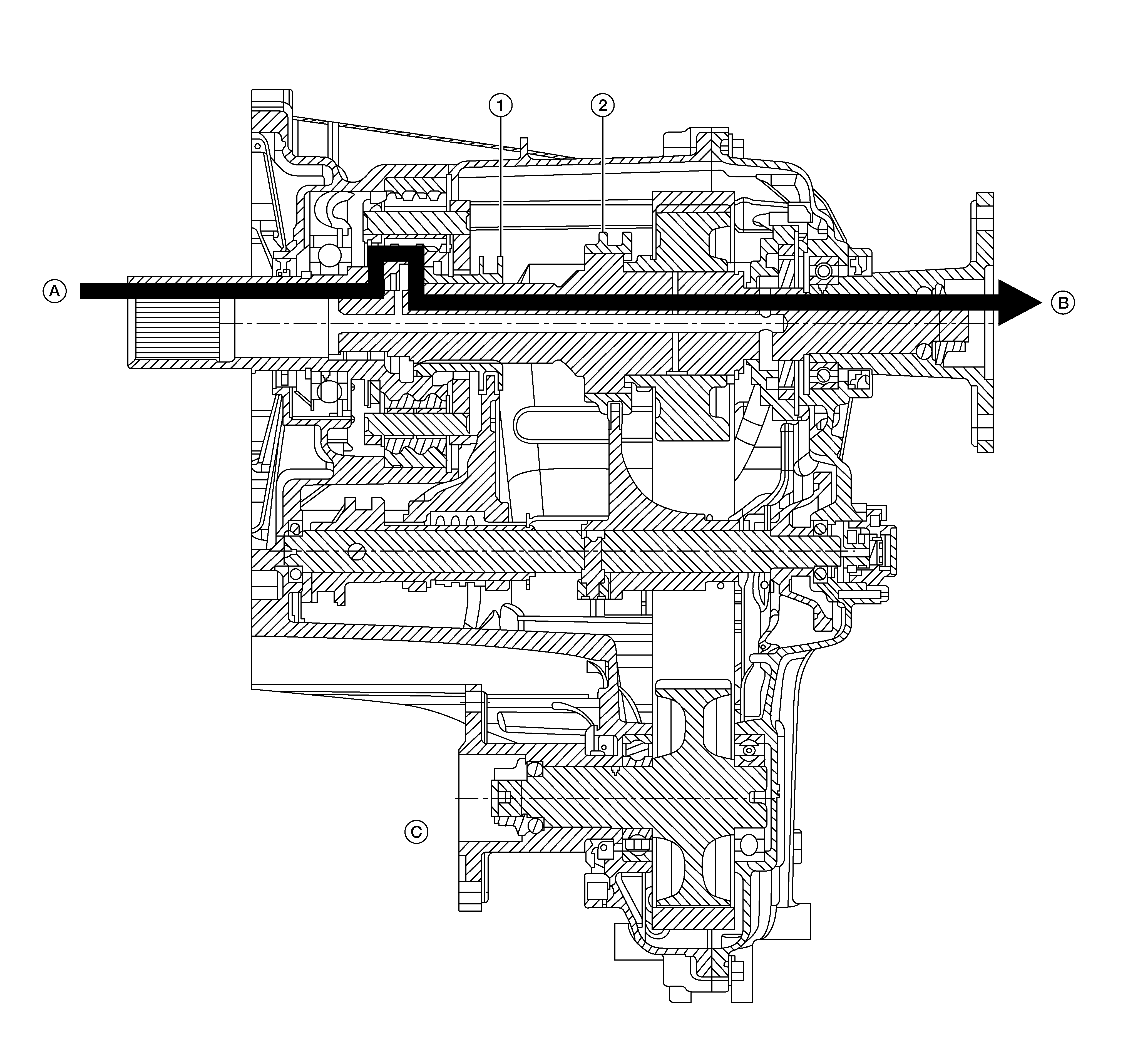

GNSDB117252Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

4H Mode

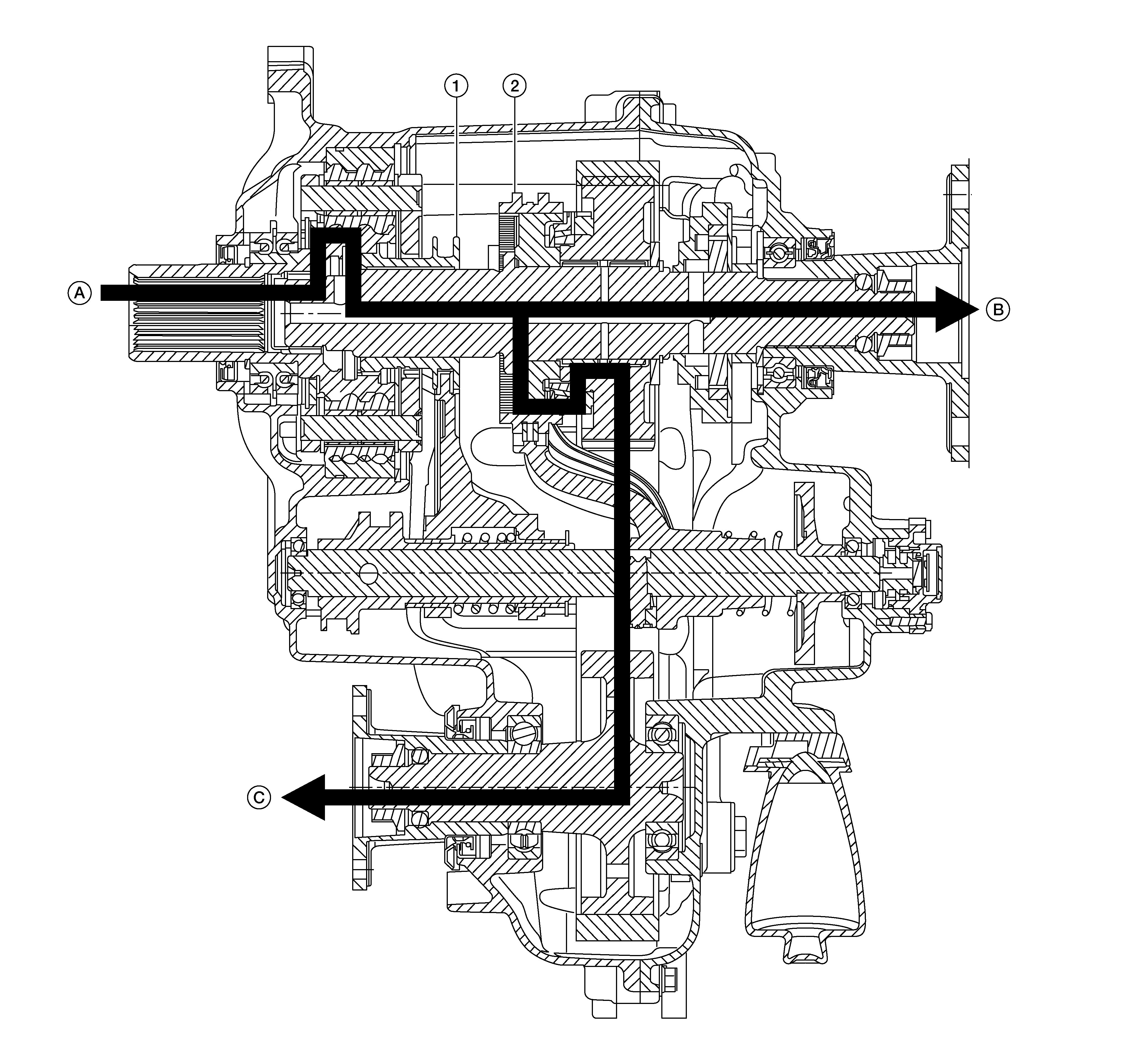

GNSDB114017Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

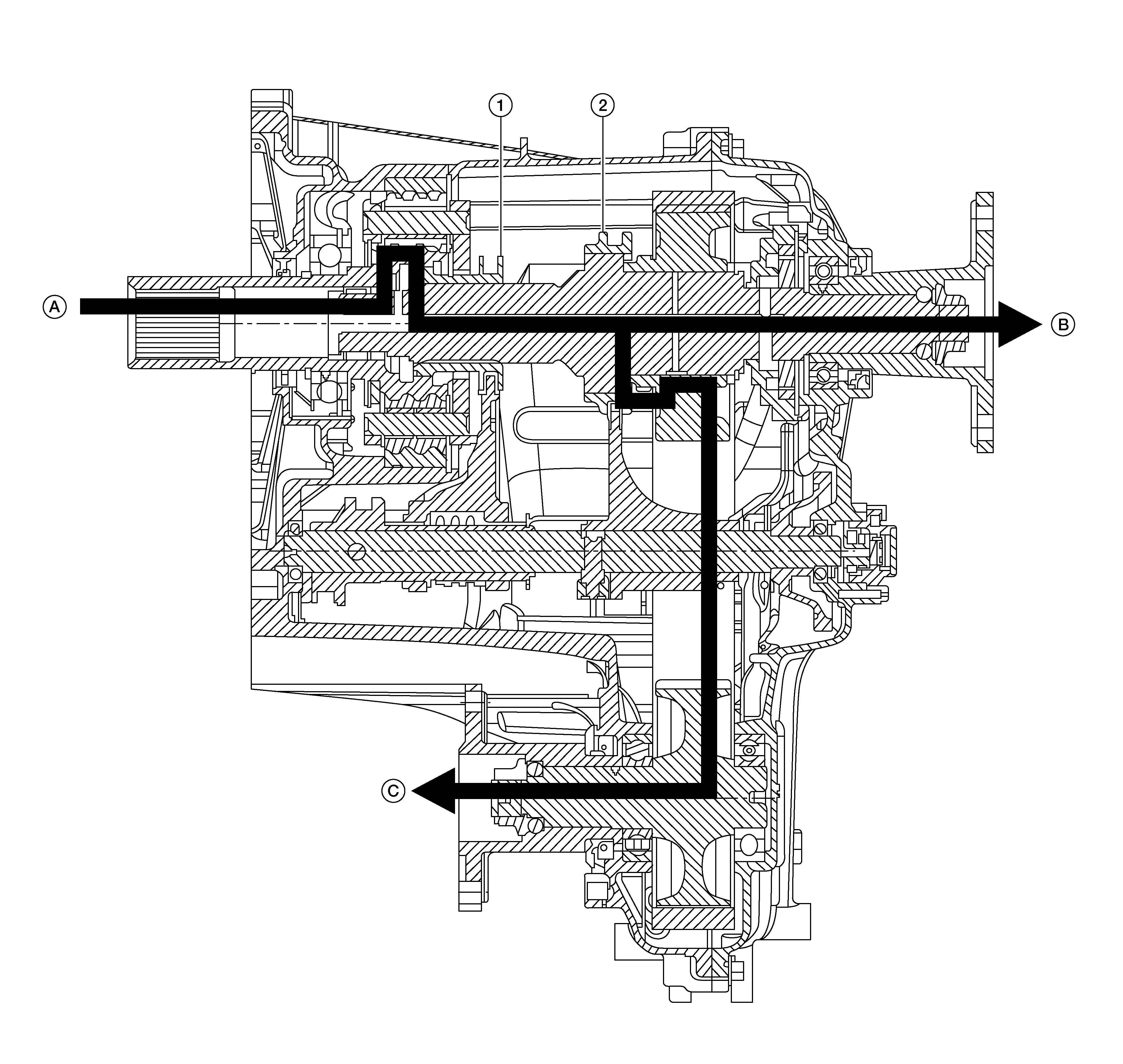

GNSALDIA1094Z-094Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

4LO Mode

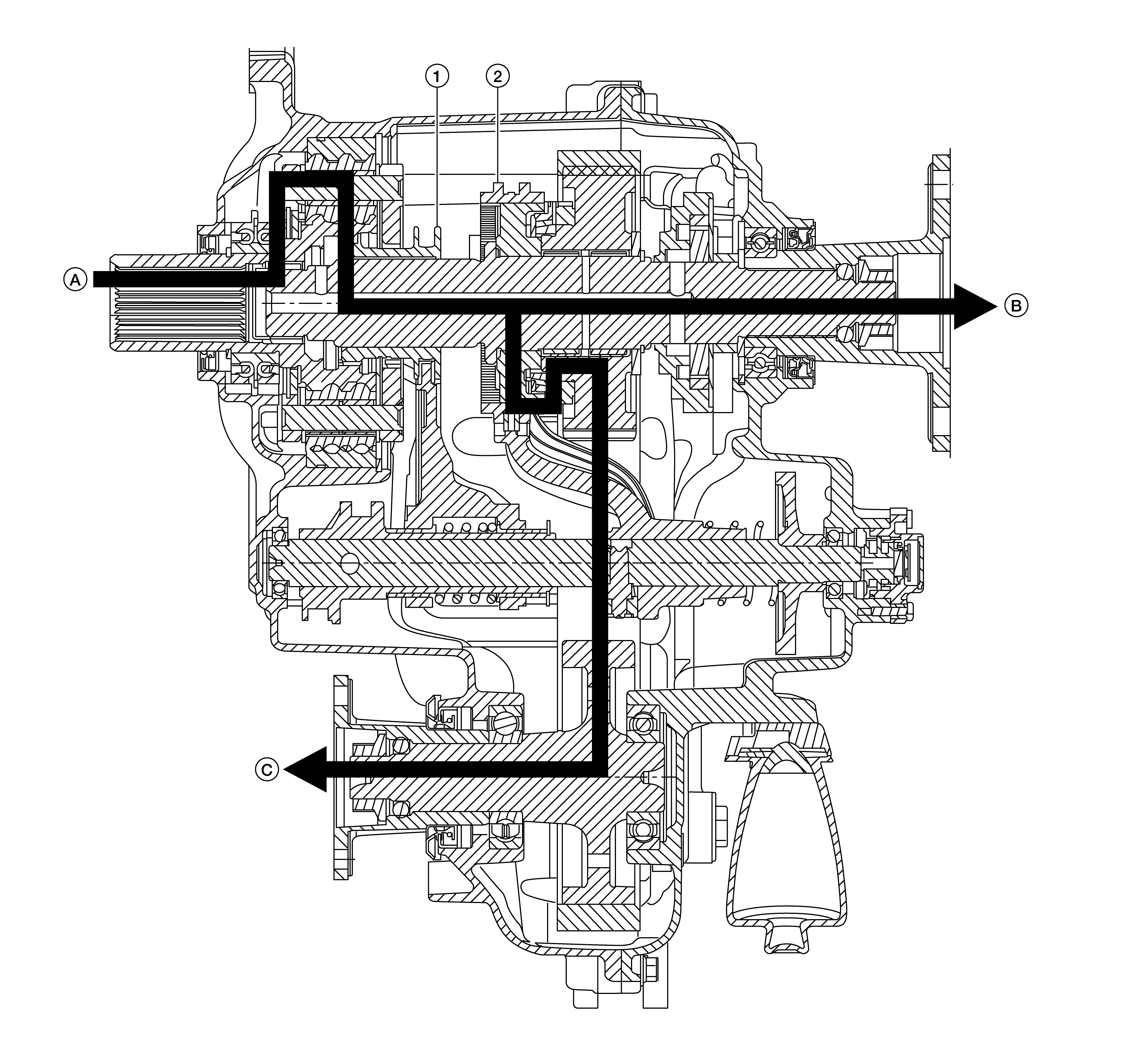

GNSDB118664Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft

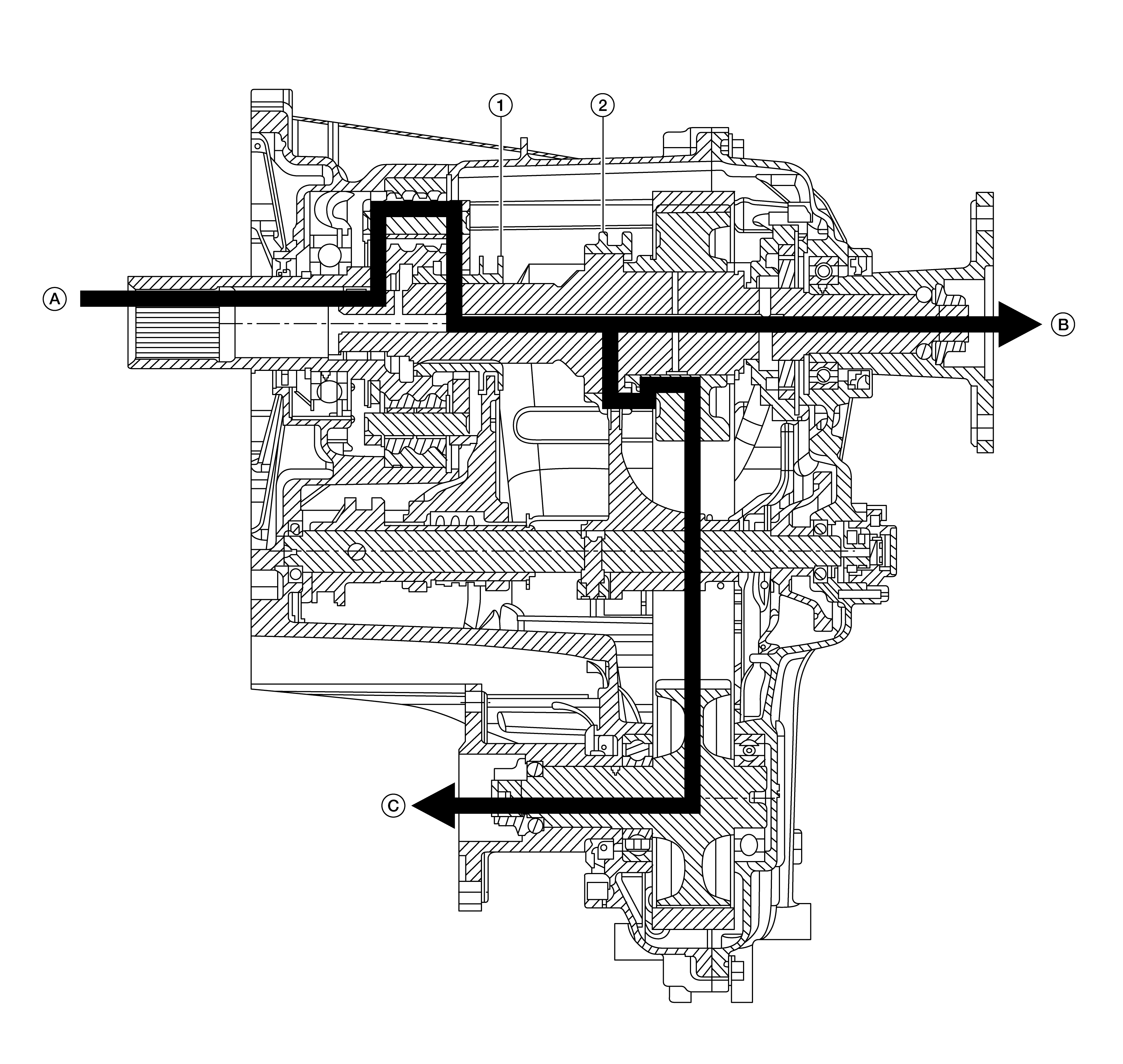

GNSDB123313Courtesy of NISSAN NORTH AMERICA, INC.

1.

2-4 sleeve

2.

H-L sleeve

A.

From transmission

B.

To rear propeller shaft

C.

To front propeller shaft
