Sectional View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|

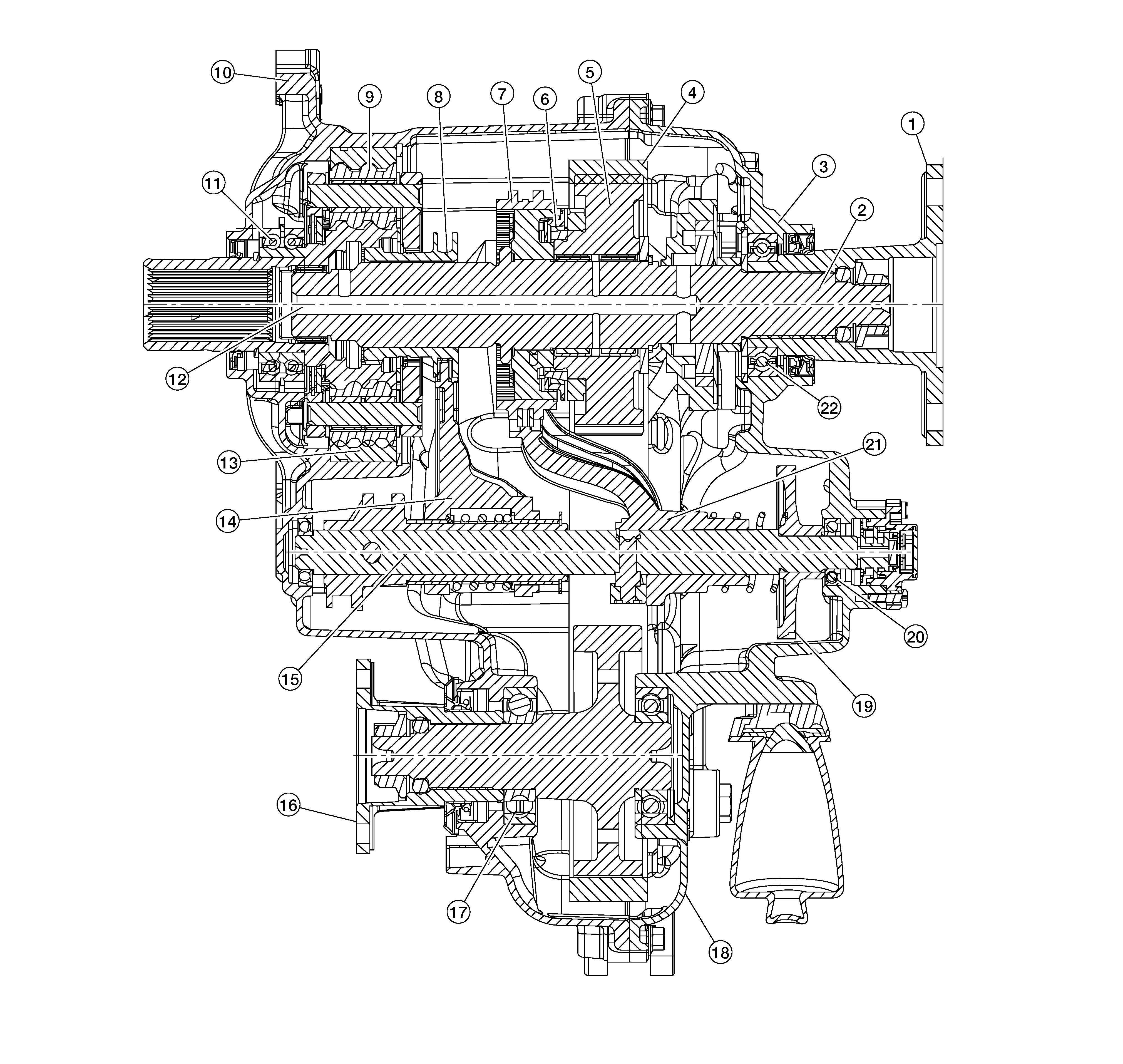

1. |
Rear companion flange |
2. |
Main shaft |
3. |
Extension case |
|
4. |
Drive chain |
5. |
Sprocket |
6. |
Synchronizer |
|
7. |
2-4 sleeve |
8. |
H-L sleeve |
9. |
Sun gear |
|
10. |
Front case |
11. |
Input bearing |
12. |
Input shaft |
|
13. |
Internal gear |
14. |
Range fork |
15. |
Actuator shaft |
|
16. |
Front companion flange |
17. |
Front bearing |
18. |
Rear case |
|
19. |
Shift rail gear |
20. |
Shift rail bearing |
21. |
Mode fork |
|
22. |
Rear bearing |
|

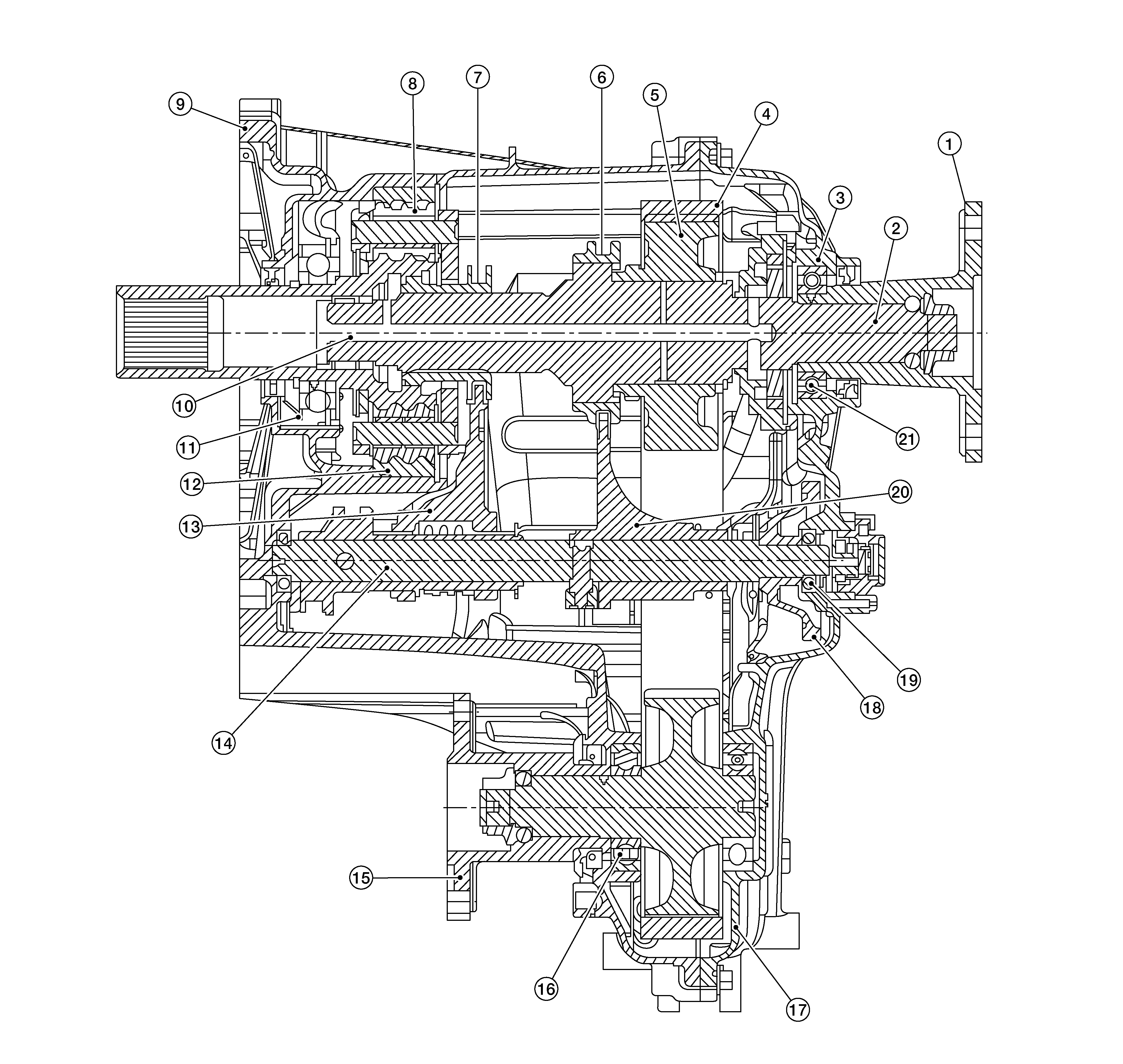

1. |
Rear companion flange |
2. |
Main shaft |
3. |
Extension case |
|
4. |
Drive chain |
5. |
Sprocket |
6. |
2-4 sleeve |
|
7. |
H-L sleeve |
8. |
Sun gear |
9. |
Front case |
|
10. |
Input shaft |
11. |
Input bearing |
12. |
Internal gear |
|
13. |
Range fork |
14. |
Actuator shaft |
15. |
Front companion flange |
|
16. |
Front bearing |
17. |
Rear case |
18. |
Shift rail gear |
|
19. |
Shift rail bearing |
20. |
Mode fork |
21. |
Rear bearing |
