Axle Disconnect Device Relay

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

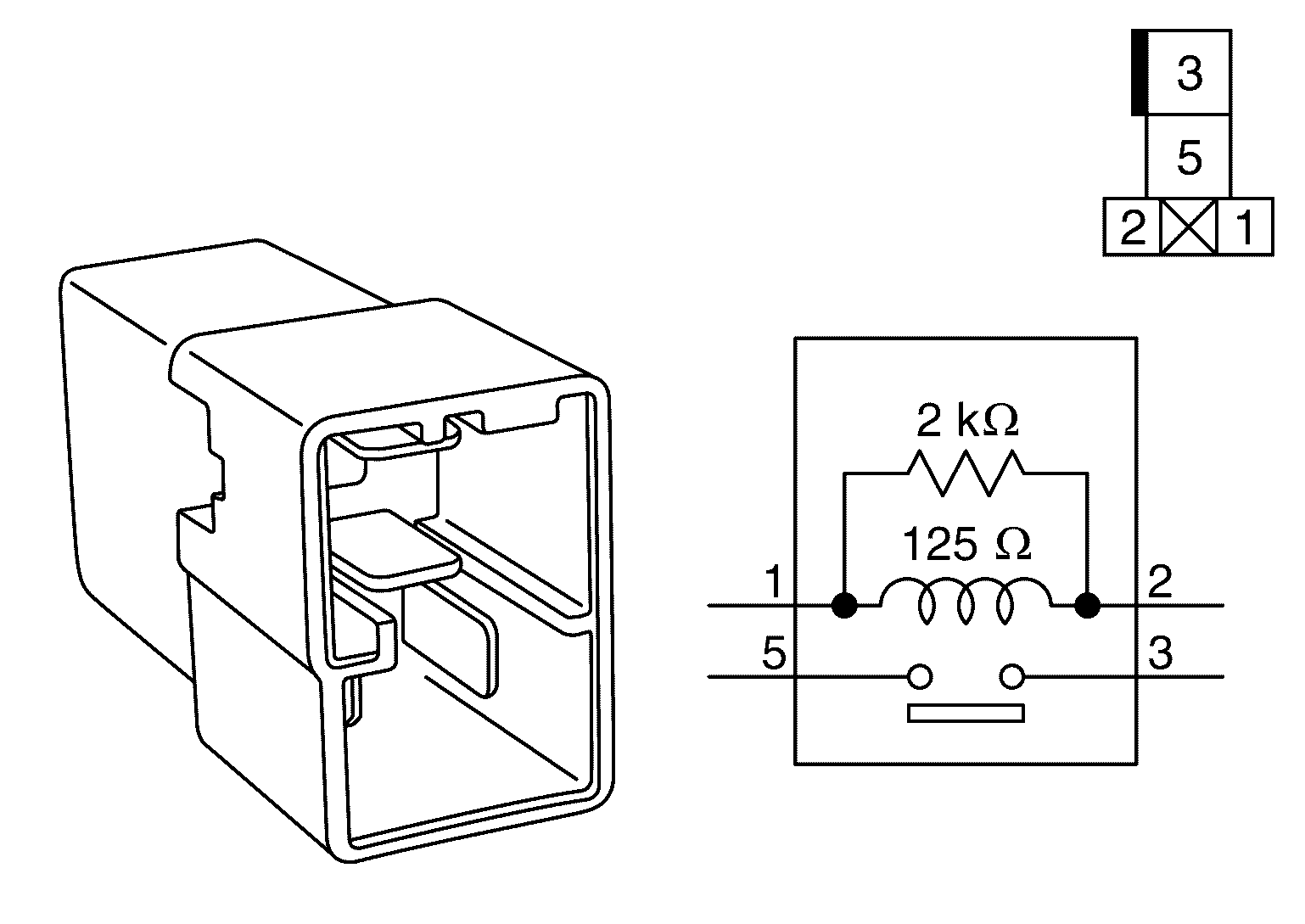

Axle disconnect device relay is installed in the engine room (right side engine compartment).

Courtesy of NISSAN NORTH AMERICA, INC.
To connect/disconnect the power supply circuit of the axle disconnect device actuator, axle disconnect device relay is activated by the transfer control unit outputs axle disconnect device relay control signal.
