Axle Disconnect Device Actuator

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

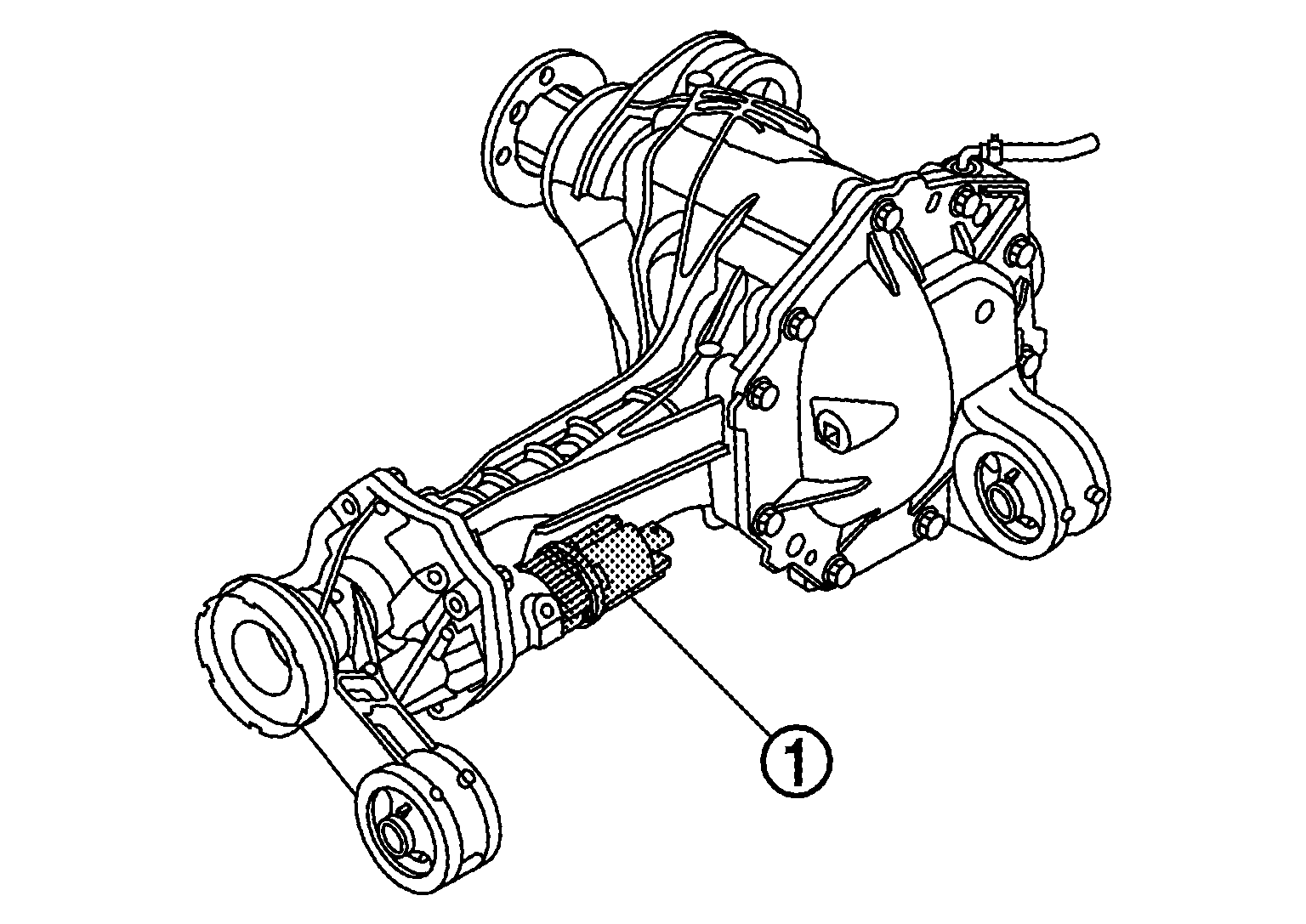

Axle disconnect device actuator is installed to right side of front final drive assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Motor and position detection switch are equipped with axle disconnect device actuator.
When axle disconnect device actuator control signal is output by transfer control unit, the power supply is supplied to axle disconnect device actuator through relay and it operates motor. Accordingly axle disconnect device is worked and drive revolution is decoupled from front tire.
