Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

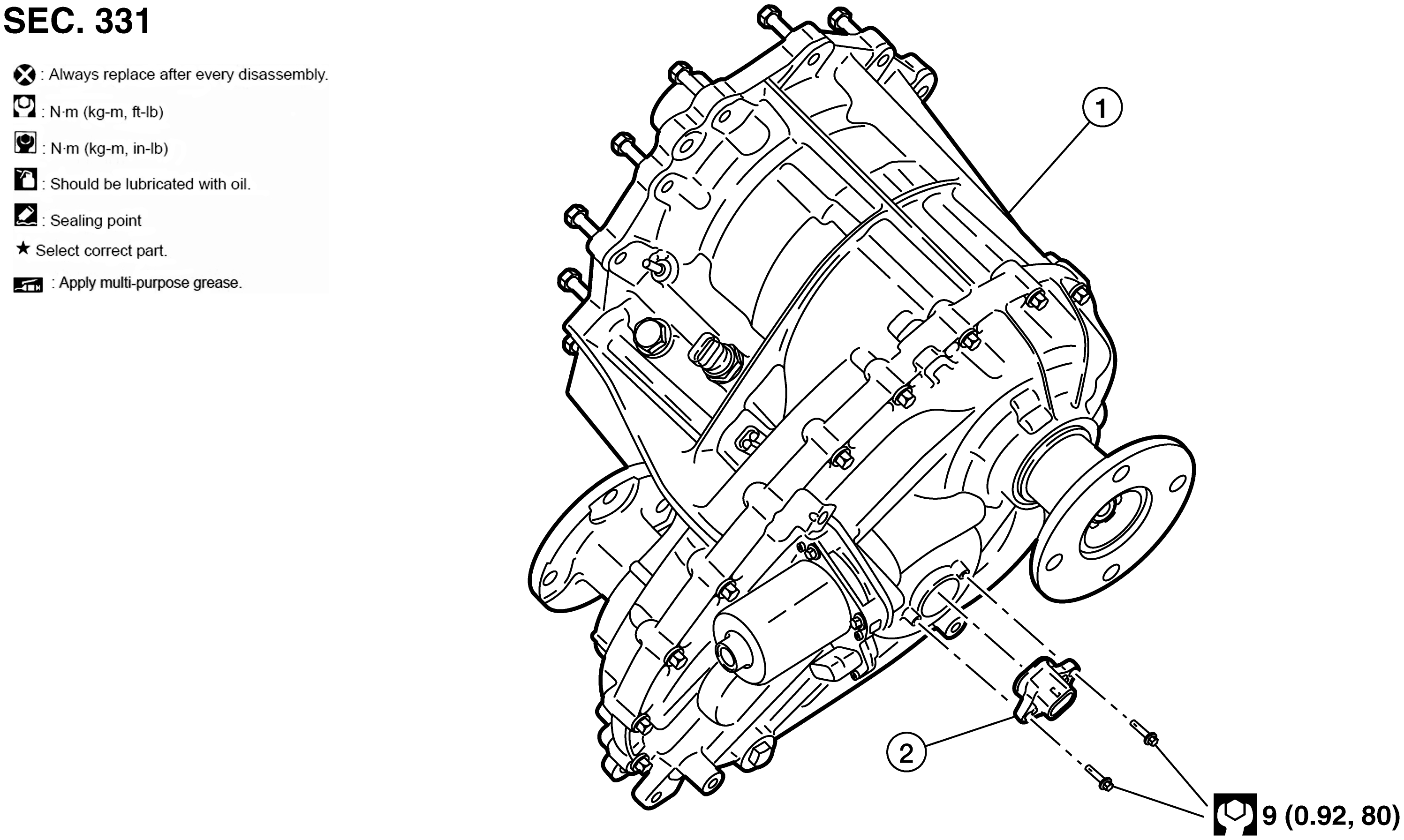

Fig 1: Transfer Rotary Position Sensor Replacement Components With Torque Specifications (XD Models)
|
1. |
Transfer assembly |
2. |
Transfer rotary position sensor |

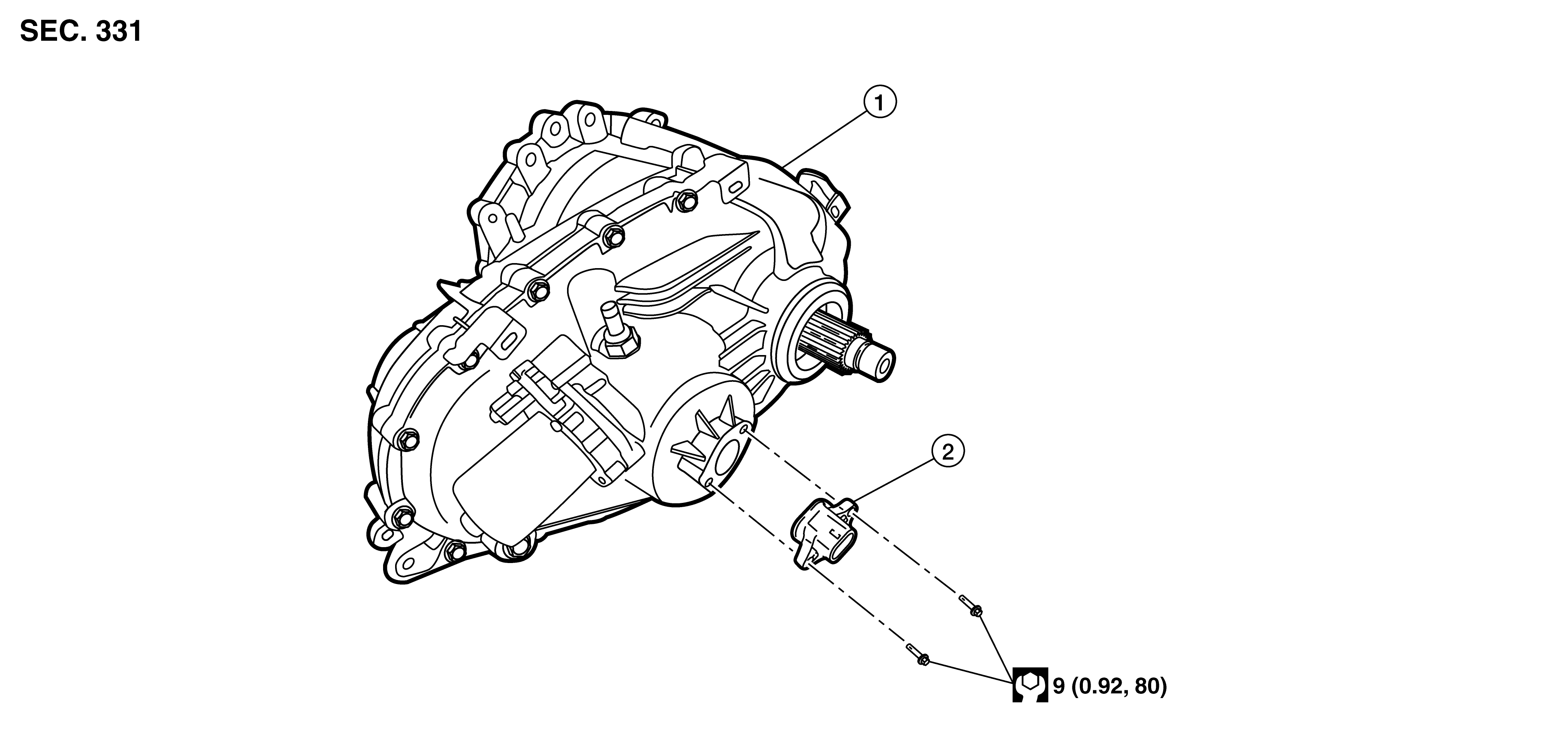

Fig 2: Transfer Rotary Position Sensor Replacement Components With Torque Specifications (Non-XD Models)
|
1. |
Transfer assembly |
2. |
Transfer rotary position sensor |
