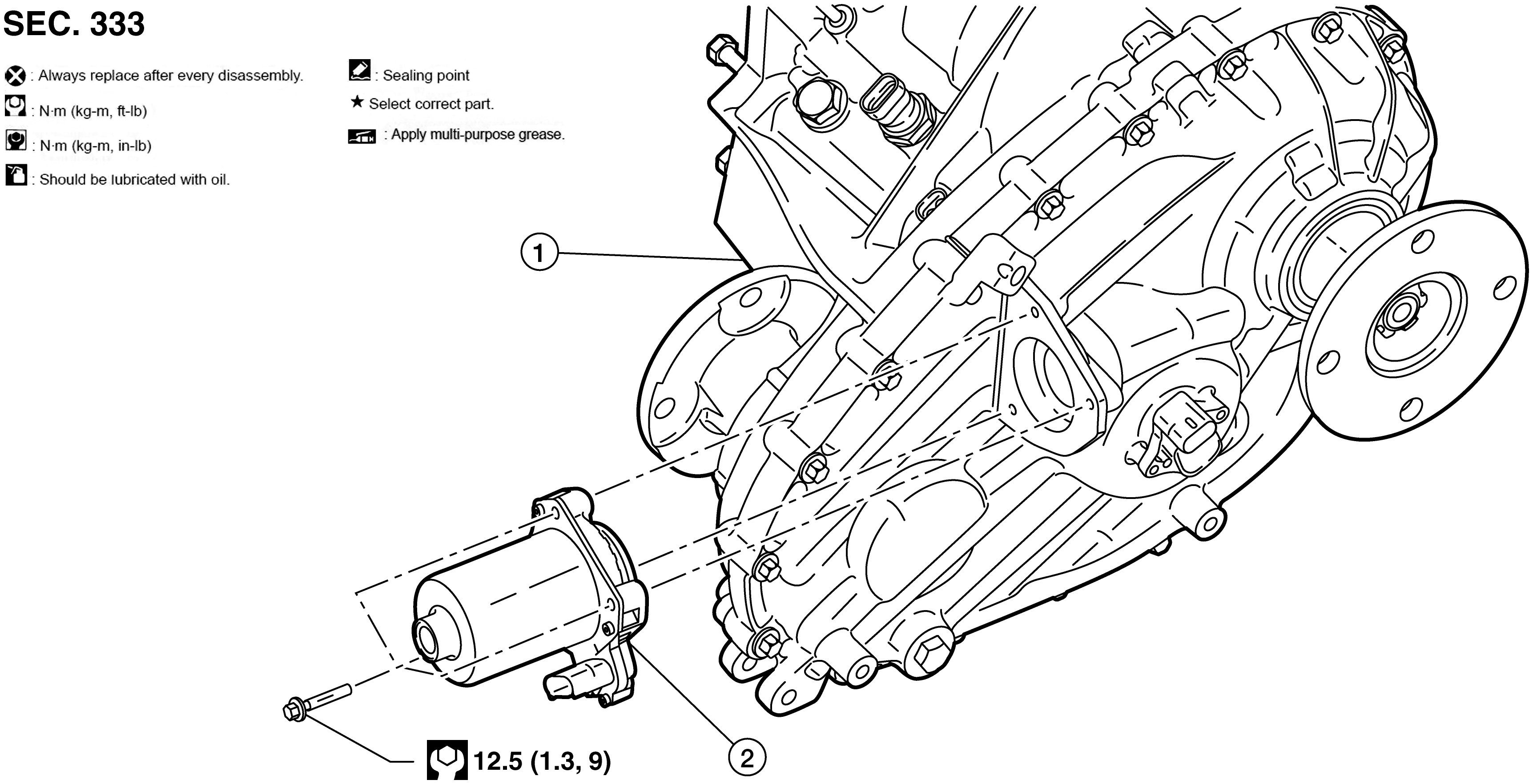

Fig 1: Transfer Motor Replacement Components With Torque Specifications (XD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transfer assembly
2.
Transfer motor

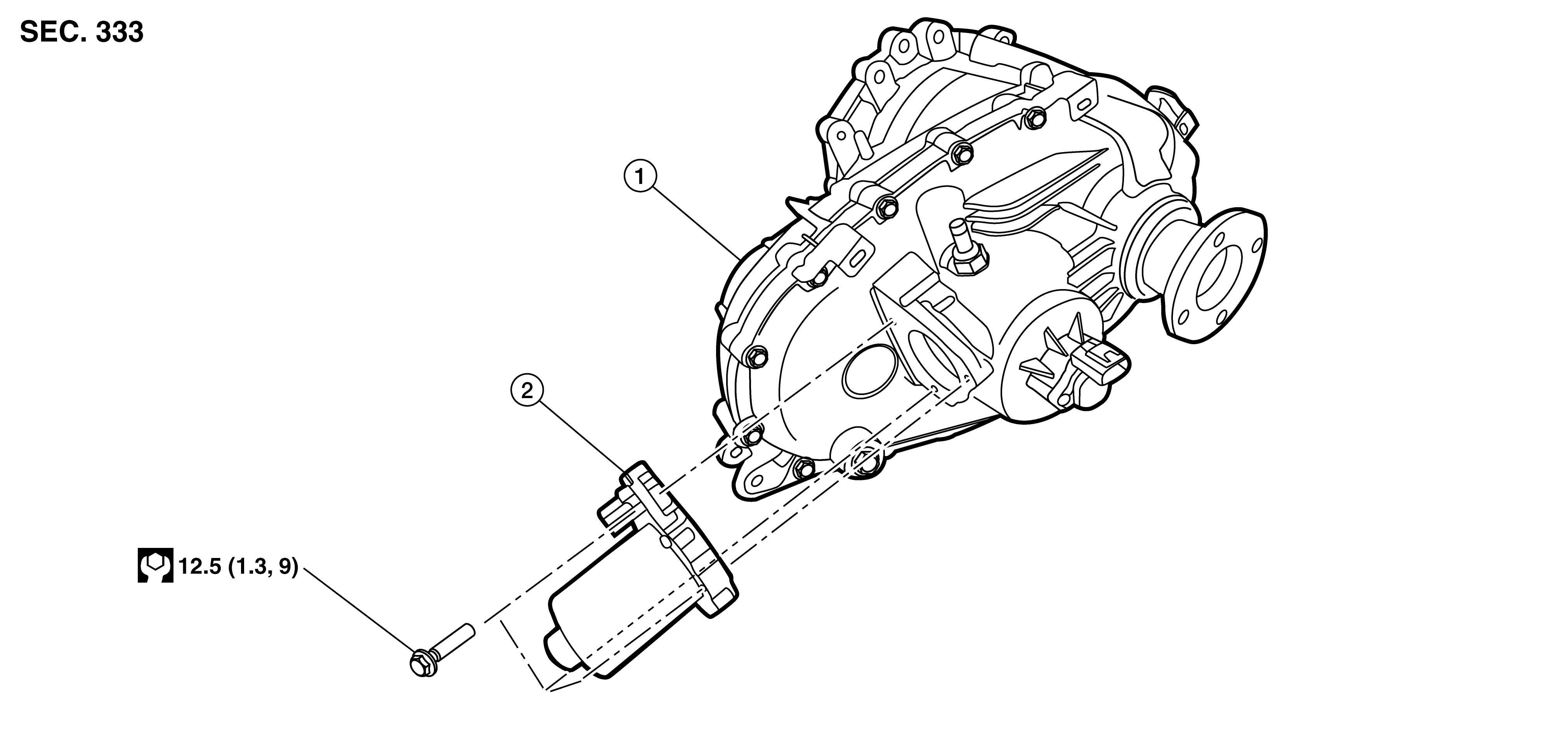

Fig 2: Transfer Motor Replacement Components With Torque Specifications (Non-XD Models)
