Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

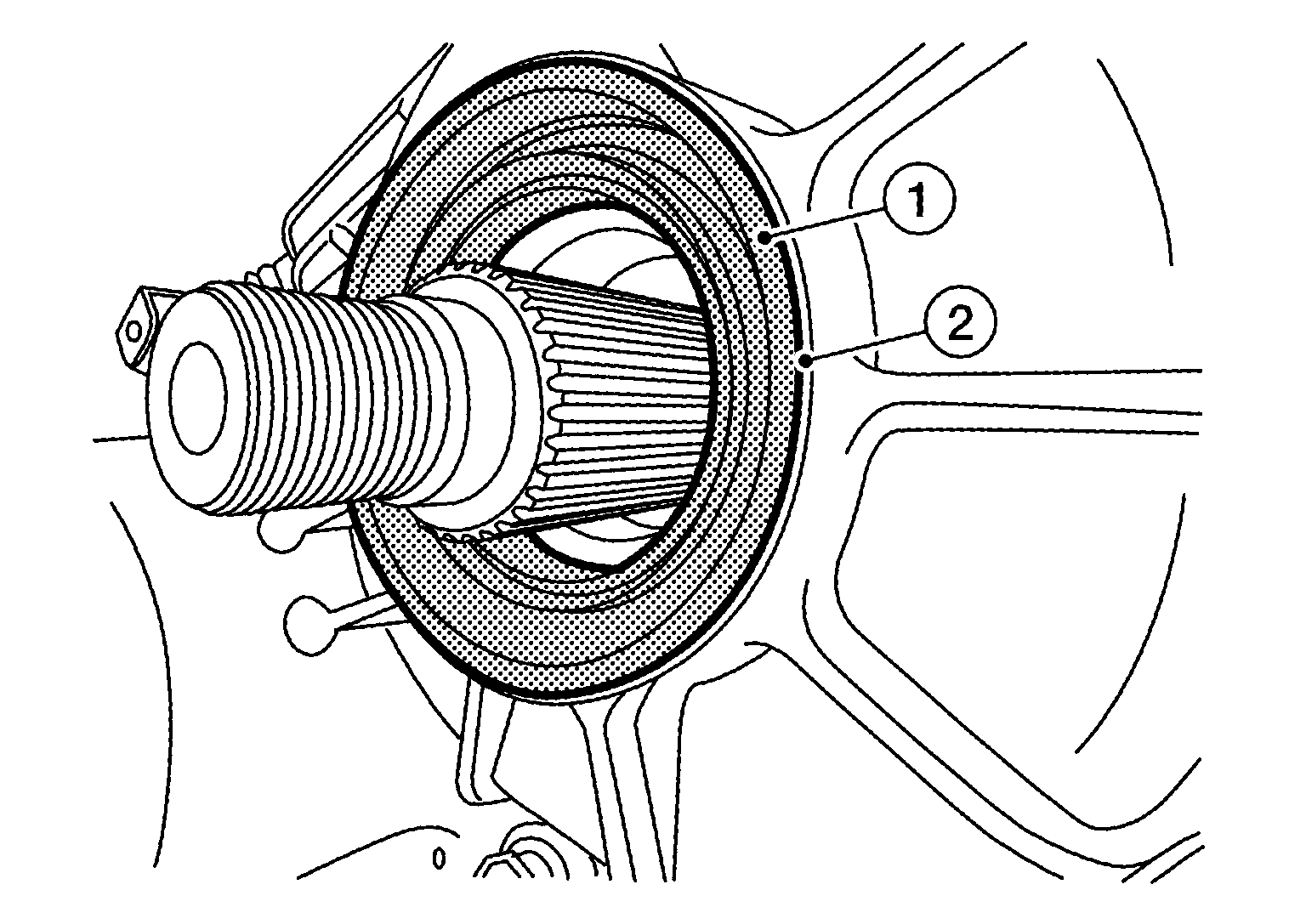

  1. Install rear oil seal using drift Tool specified until rear oil seal (1) is flush with transfer case assembly (2).
    GNSDB124177Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number

    : KV40104710 (-)
    CAUTION:
    • Do not reuse rear oil seal.
    • Apply transfer fluid onto circumference of oil seal.
  2. Align matching mark on rear output shaft (B) with matching mark on rear companion flange (A), then install rear companion flange.
    GNSAWDIA1367Z-367Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage rear oil seal.
  3. Install O-ring between rear companion flange and self locking nut.
    CAUTION:
    • Do not reuse O-ring.
    • Do not damage O-ring.
  4. Tighten self-locking nut.
    CAUTION: Do not reuse self-locking nut.
  5. Install rear propeller shaft. Refer to Removal and Installation .
  6. Fill with transfer fluid. Refer to Refilling .
    CAUTION: Do not reuse transfer fluid.
