Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

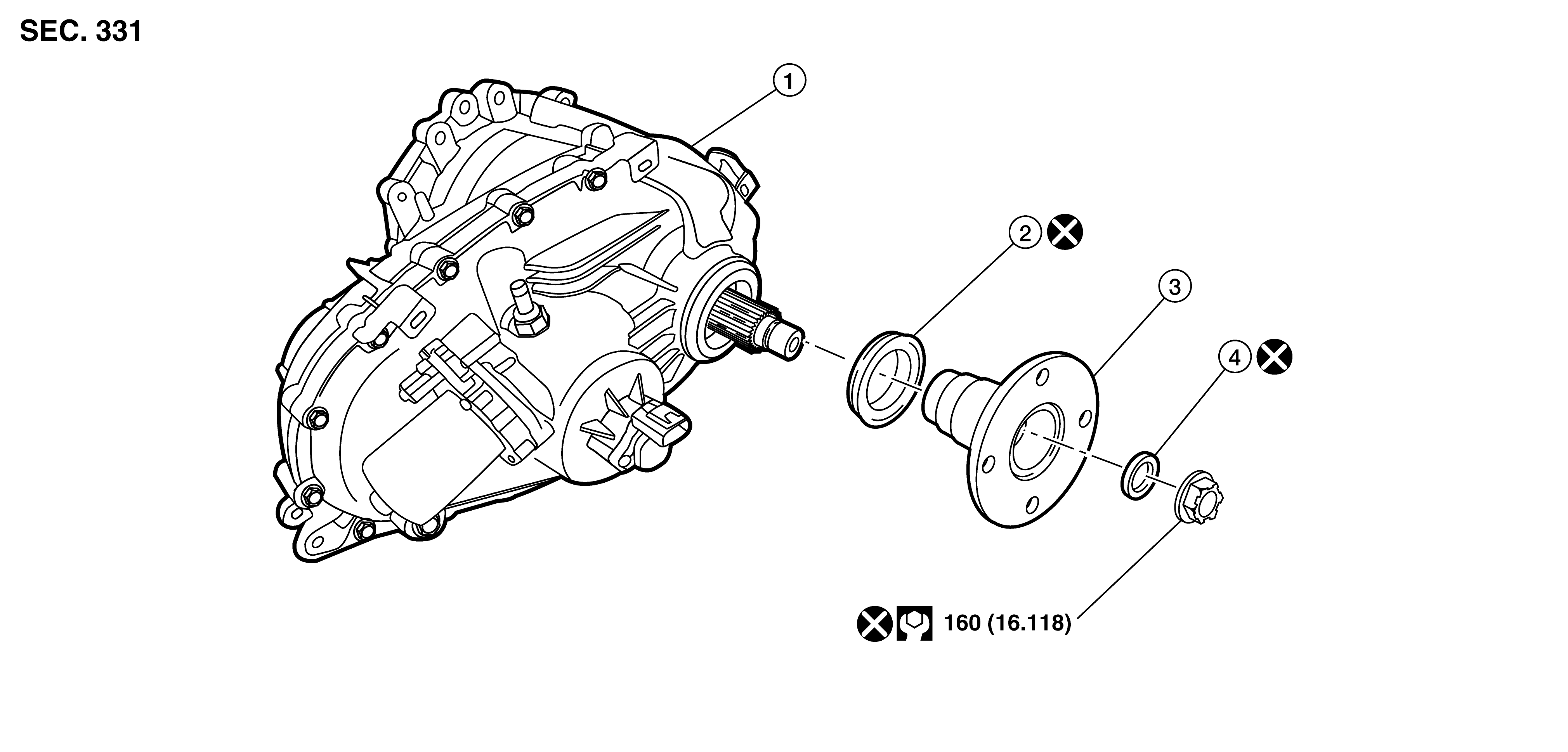

Fig 1: Rear Oil Seal Replacement Components With Torque Specifications (XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Rear companion flange	3.	Rear oil seal
4.	Transfer assembly

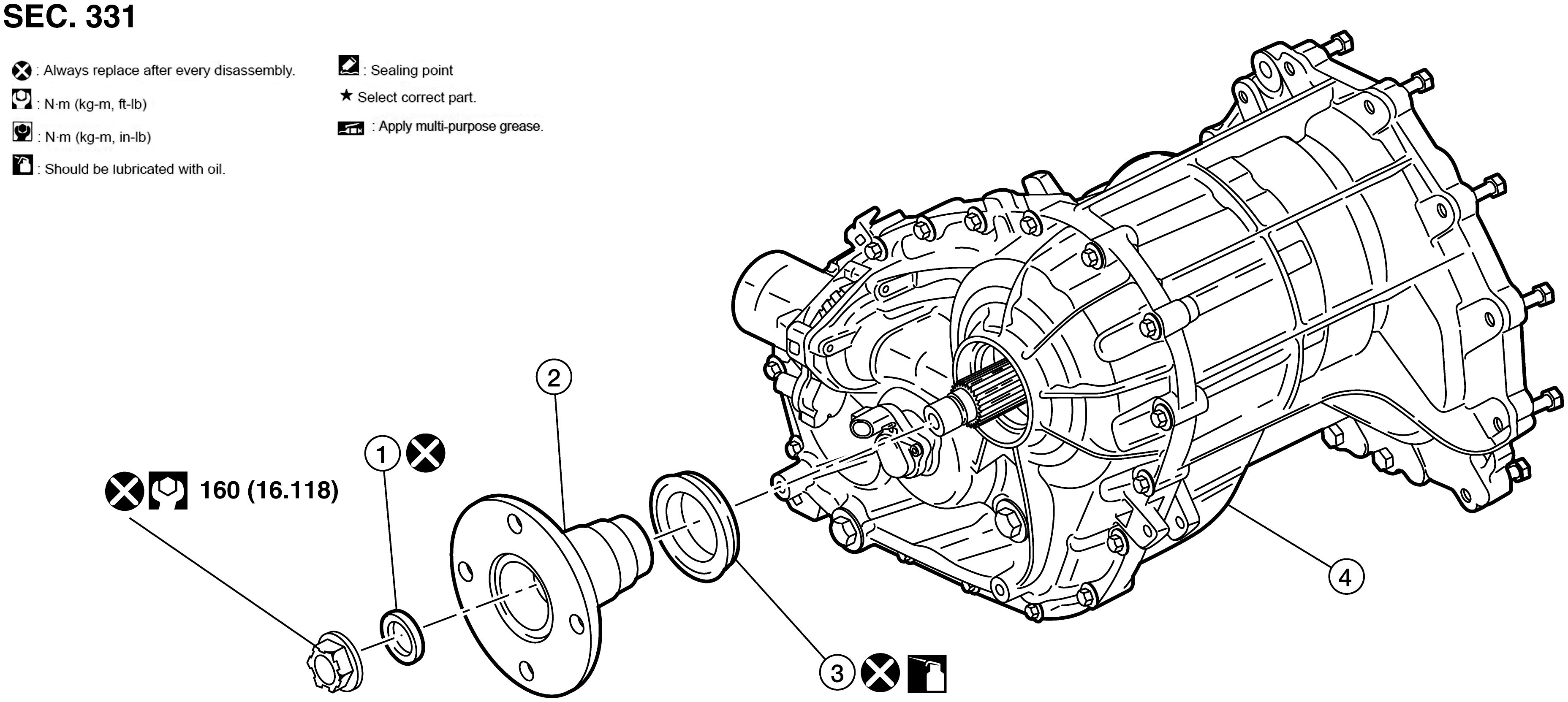

Fig 2: Rear Oil Seal Replacement Components With Torque Specifications (Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly	2.	Rear oil seal	3.	Rear companion flange
4.	O-ring
