Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

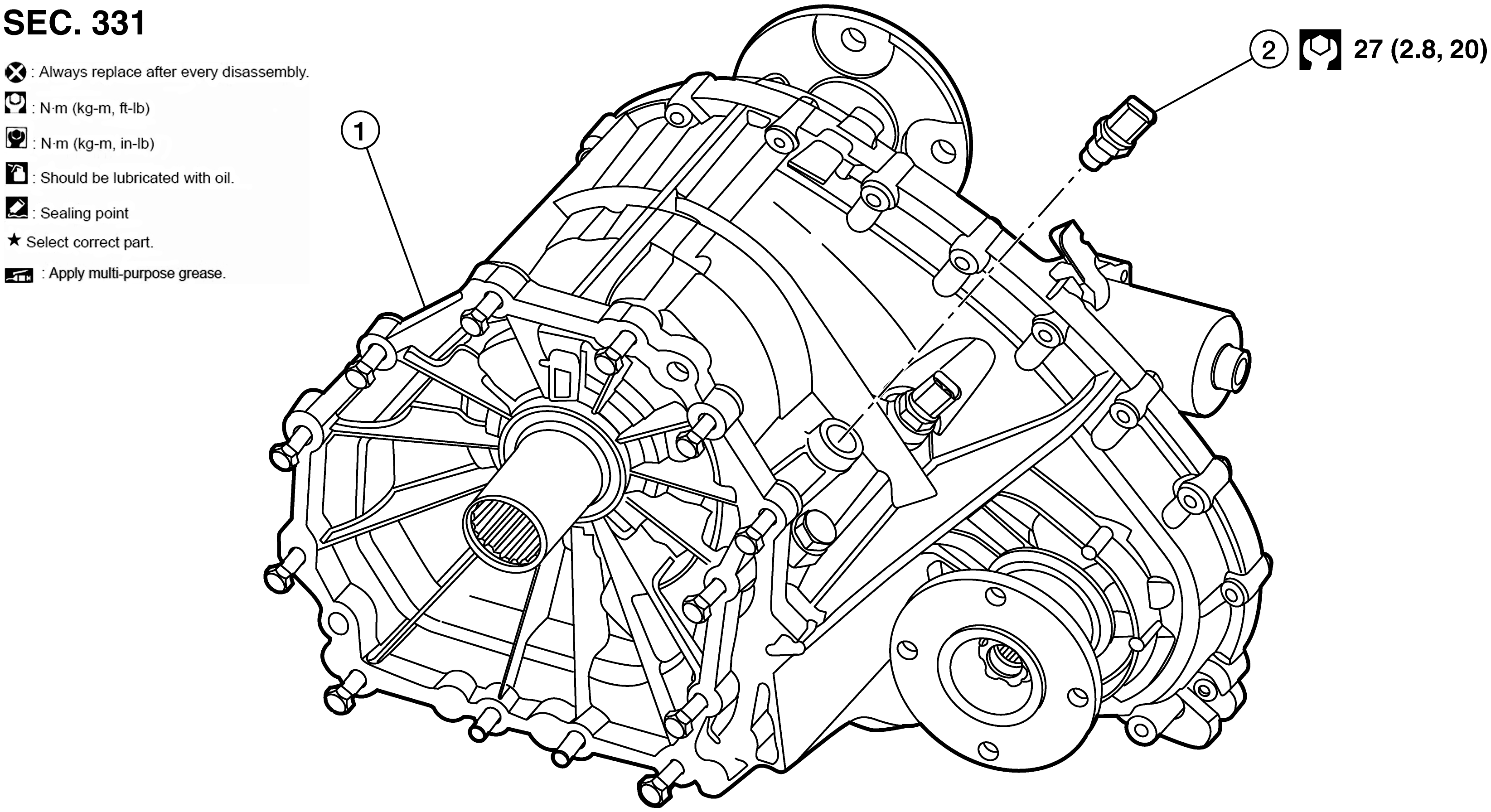

Fig 1: Range Sensor Replacement Components With Torque Specifications (Cummins 5.0L Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Transfer assembly

Range sensor

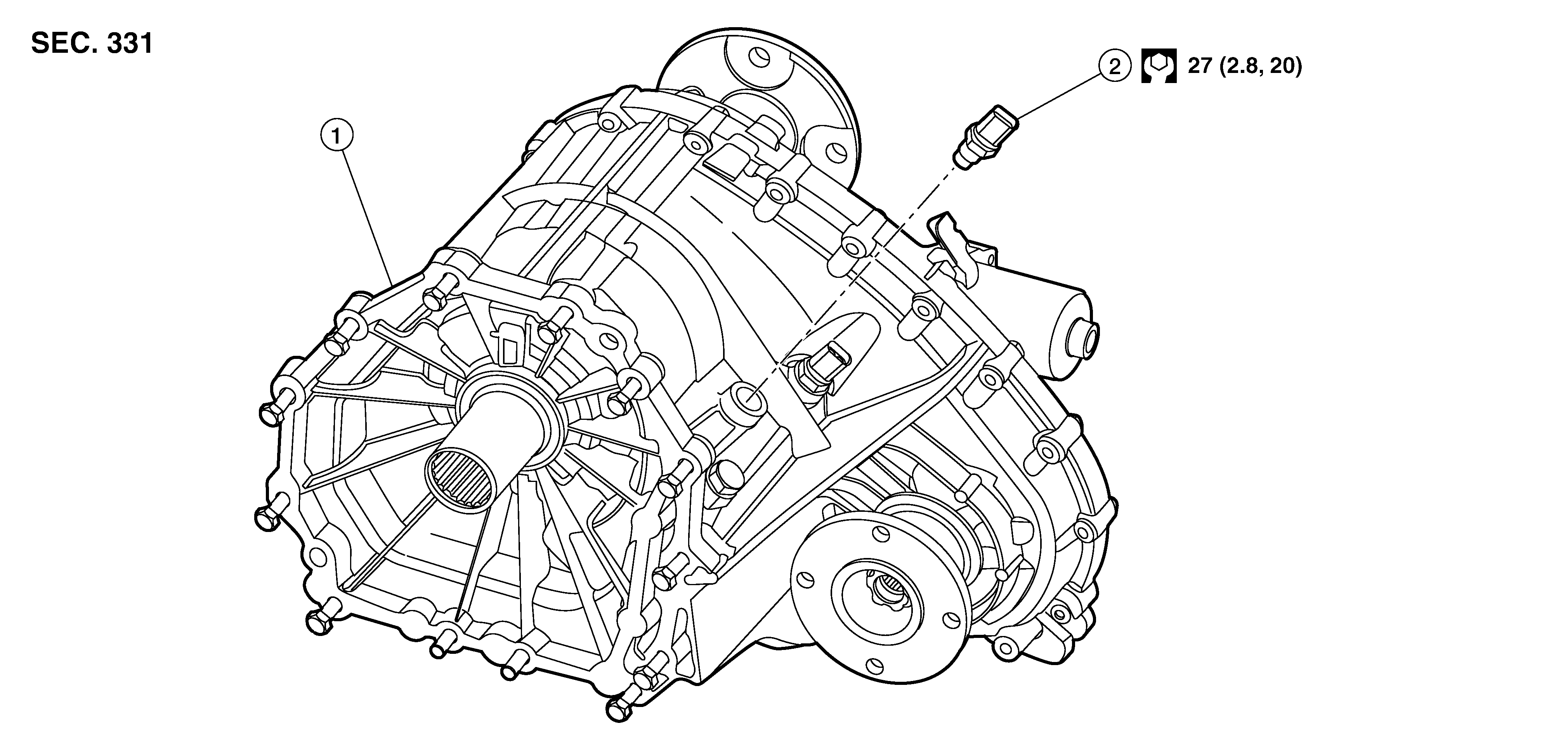

Fig 2: Range Sensor Replacement Components With Torque Specifications (VK56VD XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Transfer assembly

Range sensor

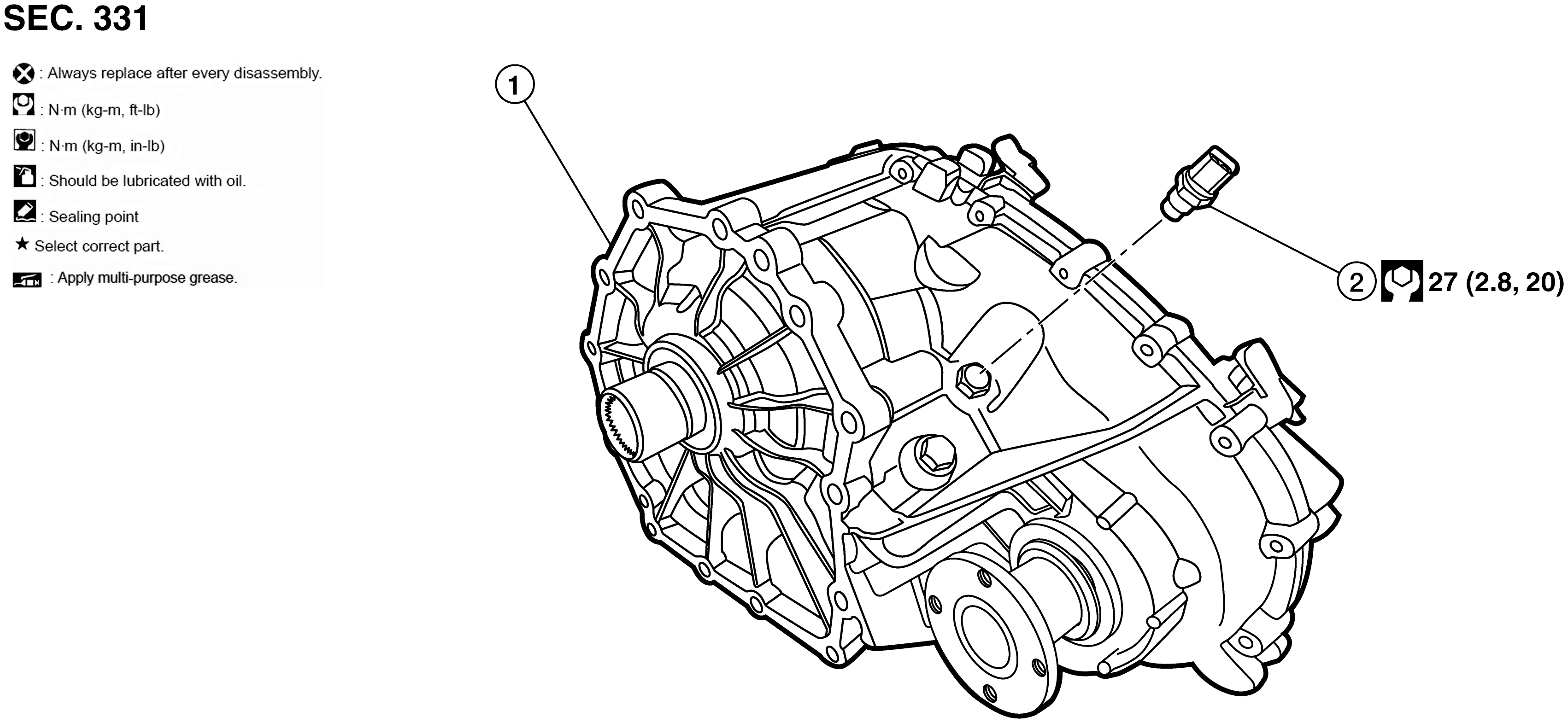

Fig 3: Range Sensor Replacement Components With Torque Specifications (VK56VD Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Transfer assembly

Range sensor
