Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove transfer assembly from vehicle. Refer to Removal and Installation .
Remove input oil seal.
CAUTION: Never damage the front case and input shaft.

INSTALLATION

Note the following, and install in the reverse order of removal.

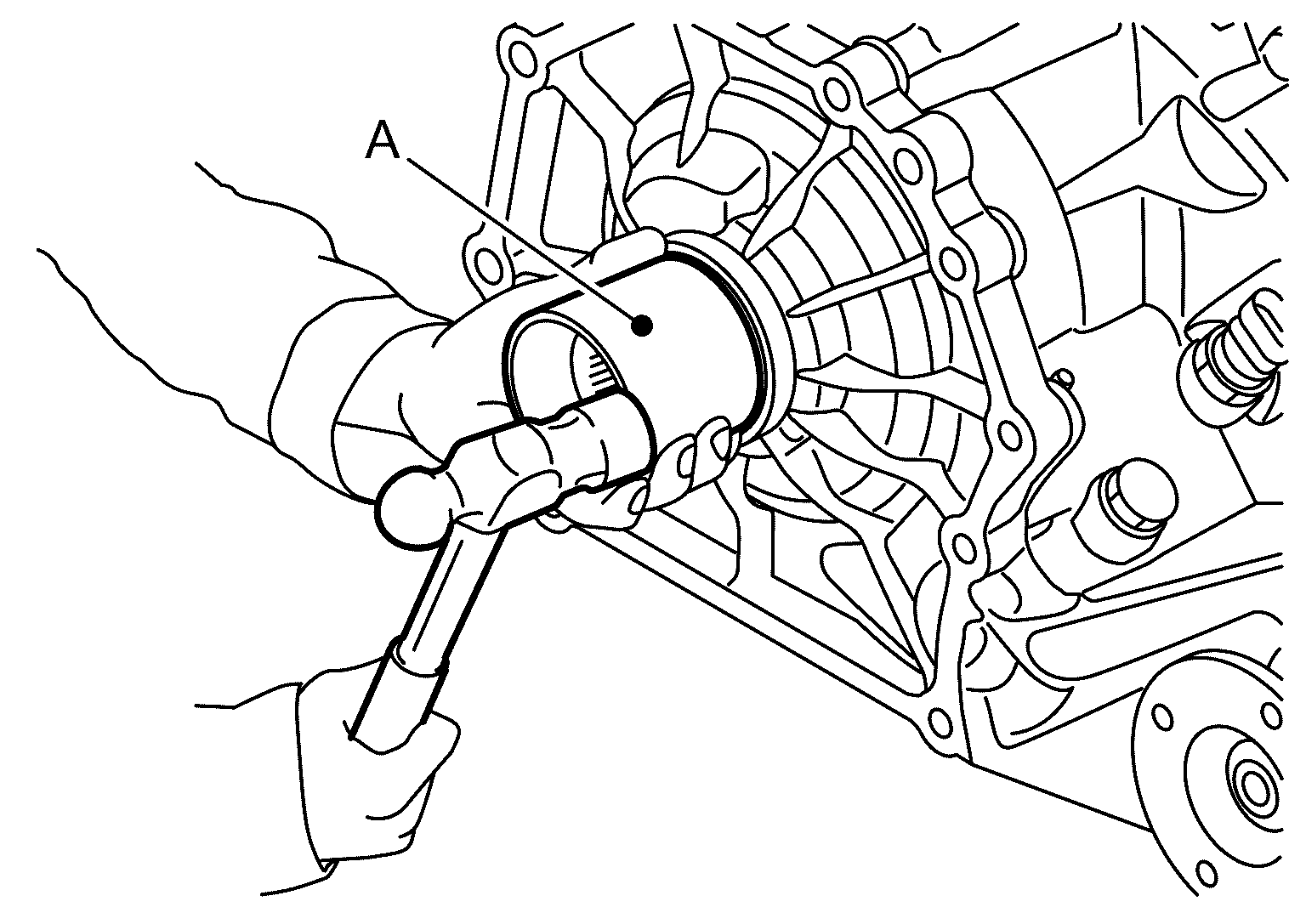

Install input oil seal with a drift (A) (commercial service tool) until it is flush with the end face of front case.

GNSILL0115385-385

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Never reuse input oil seal.
Apply transfer fluid onto circumference of oil seal.
