Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain transfer fluid. Refer to Draining .
  2. Remove front propeller shaft. Refer to Removal and Installation .
  3. Remove self-locking nut from front companion flange using a suitable flange wrench.
    CAUTION: Do not reuse self-locking nut.
  4. Remove O-ring.
    CAUTION: Do not reuse O-ring.

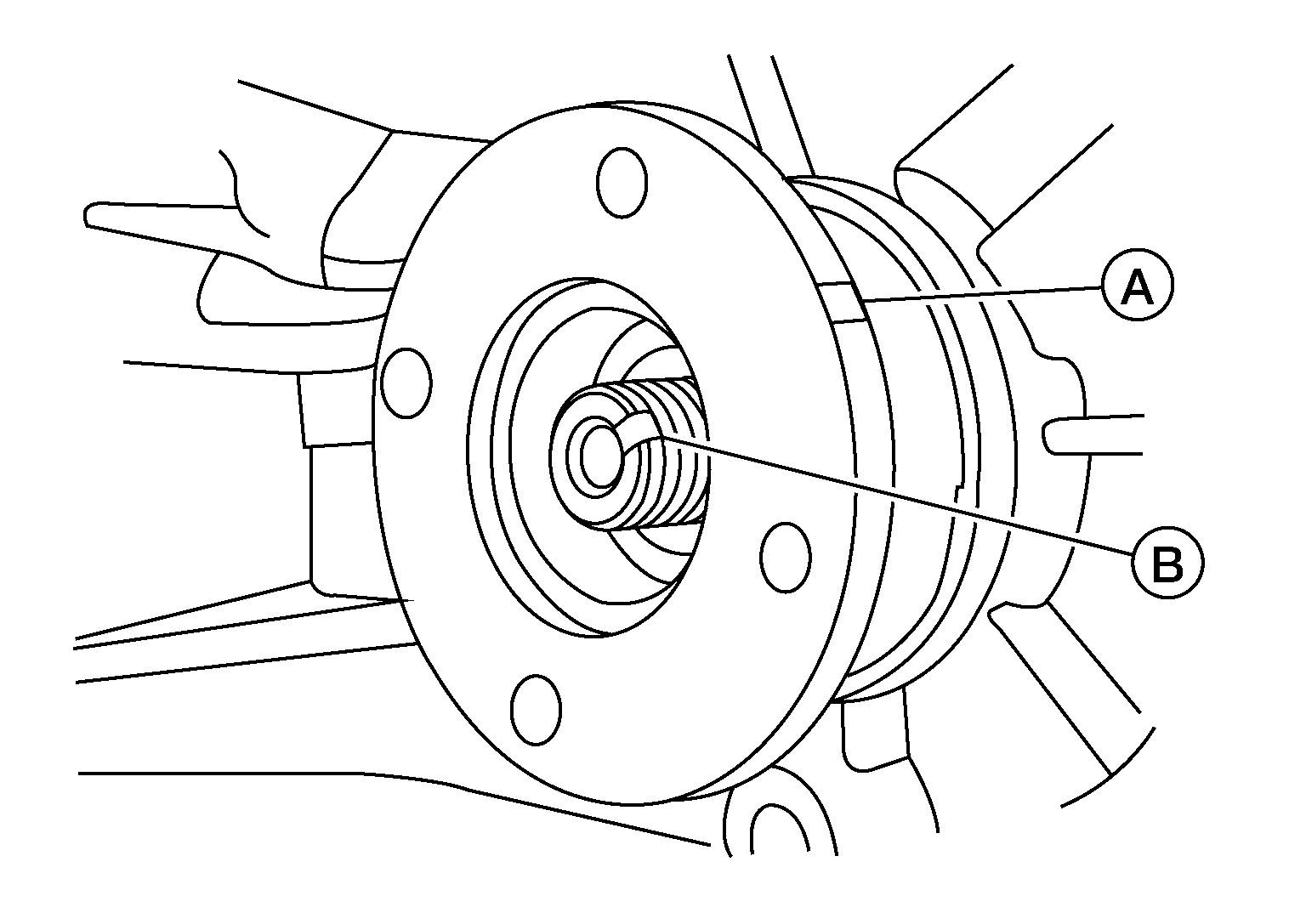

  5. Put a matching mark on front output shaft (B) in line with a mark on front companion flange (A).
    GNSAWDIA1367Z-367Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use paint to make matching mark on front companion flange and front output shaft. Do not damage front output shaft.
  6. Remove front companion flange using a suitable tool.
  7. Remove front oil seal.
    CAUTION:
    • Do not damage transfer case assembly or front output shaft.
    • Do not reuse front oil seal.
