Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

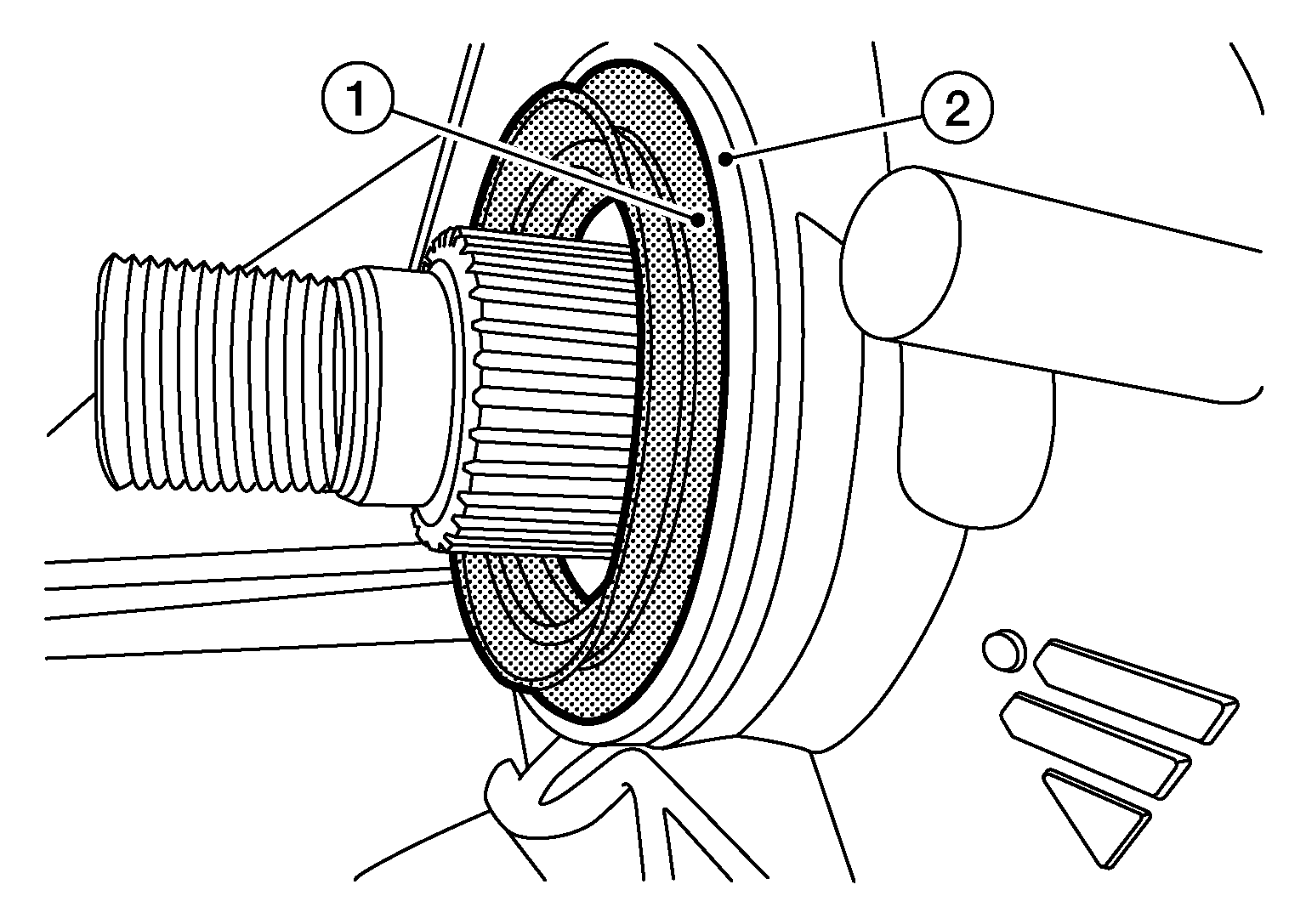

  1. Install front oil seal (1) using a suitable drift tool until front oil seal is flush with transfer case assembly (2).
    GNSDB117066Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not reuse front oil seal.
    • Apply transfer fluid onto circumference of oil seal.
  2. Align matching mark on front drive shaft (B) with matching mark on front companion flange (A), then install front companion flange.
    GNSAWDIA1367Z-367Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage front oil seal.
  3. Install O-ring between front companion flange and self locking nut.
    CAUTION:
    • Do not reuse O-ring.
    • Do not damage O-ring.
  4. Tighten self-locking nut.
    CAUTION: Do not reuse self-locking nut.
  5. Install front propeller shaft. Refer to Removal and Installation .
  6. Fill with transfer fluid. Refer to Refilling .
    CAUTION: Do not reuse transfer fluid.
