Removal and Installation - VK56VD Models: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

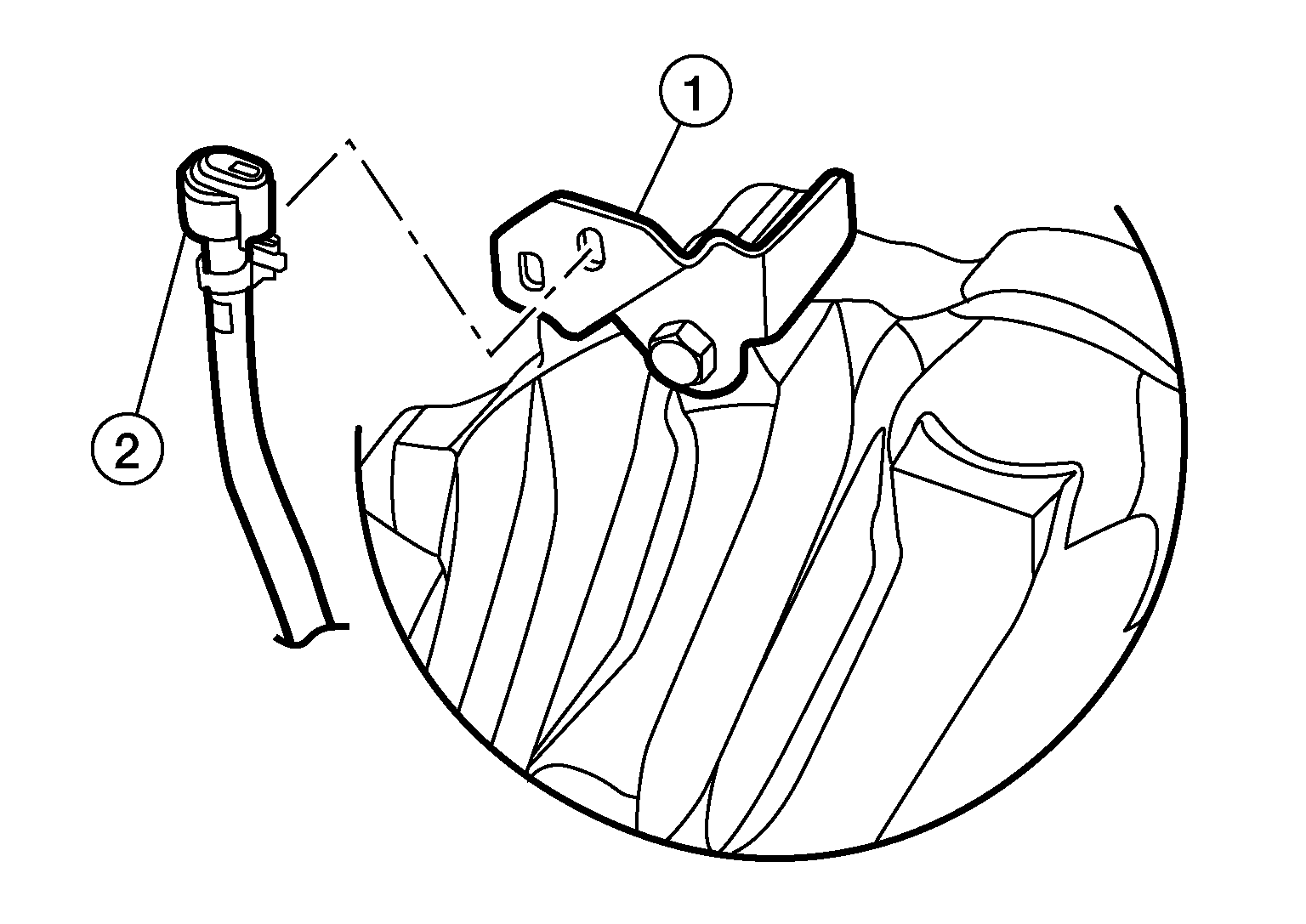

Insert the clip of the air breather (2) securely to the bracket (1).

Courtesy of NISSAN NORTH AMERICA, INC.

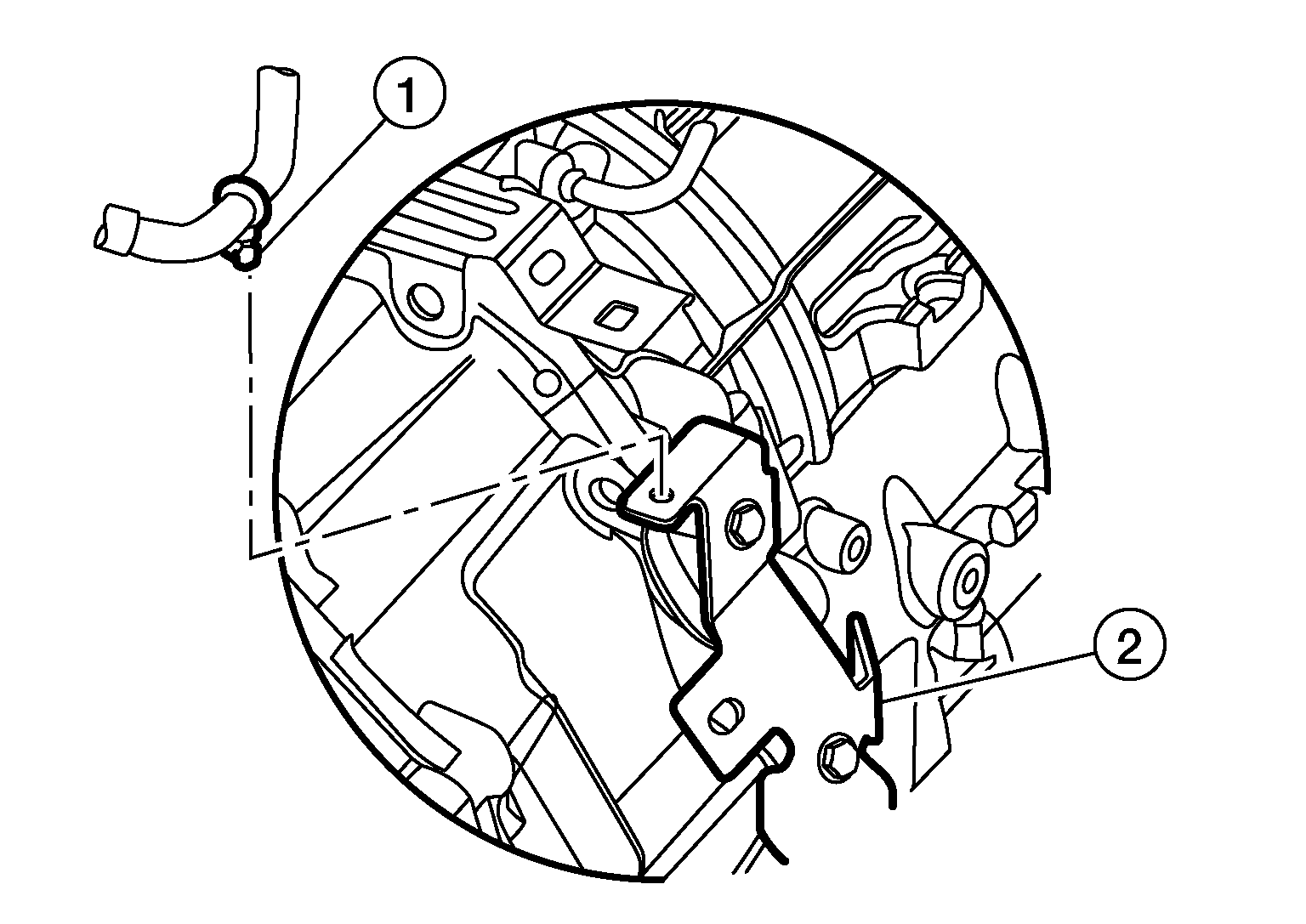

Insert the clip on breather hose (1) securely into the bracket (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Insert breather hose (1) into the clip (2) with the paint mark (A) facing upward.

Courtesy of NISSAN NORTH AMERICA, INC.

Install breather hose (1) on to breather tube (2).

VK56VD Non-XD MODELS

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

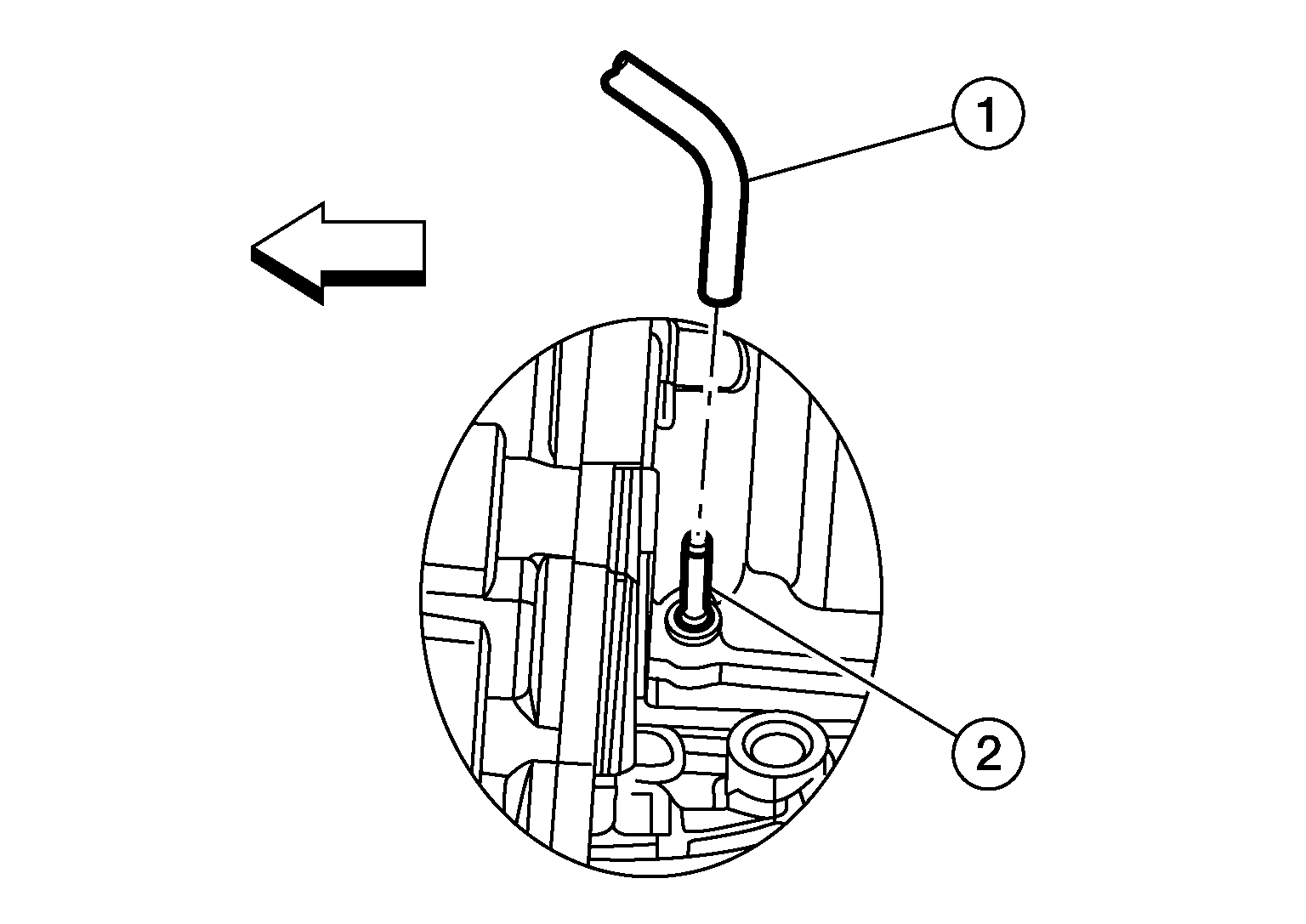

NOTE: Be sure to insert breather hose (1) to breather tube (2) until hose end reaches the end of tube.

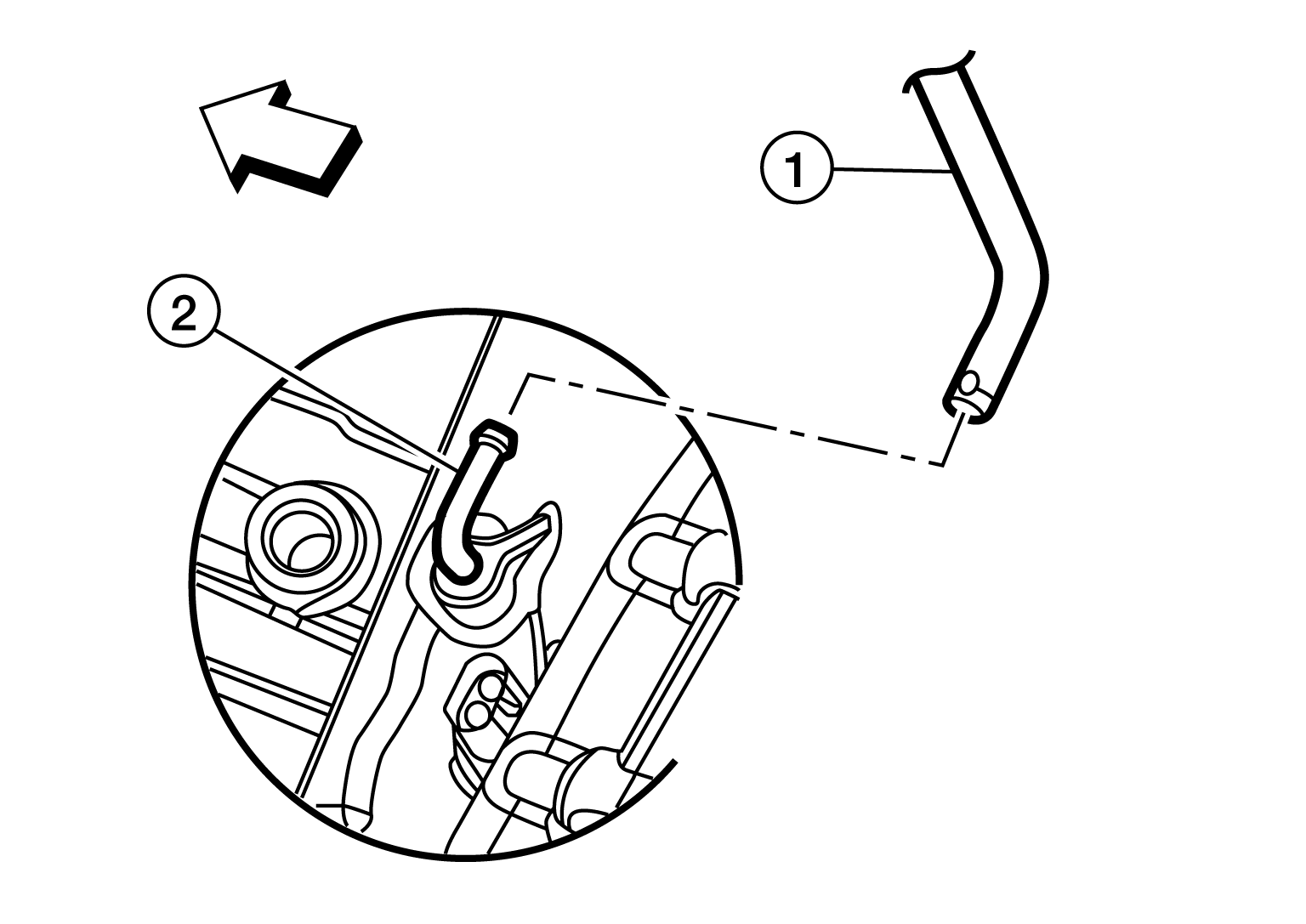

VK56VD XD MODELS

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

NOTE: Be sure to insert breather hose (1) to the breather tube (2) until hose end reaches the bending radius of tube.
