Removal and Installation - Cummins 5.0L Models: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Insert the clip of the air breather (1) securely to the bracket (2).

Courtesy of NISSAN NORTH AMERICA, INC.

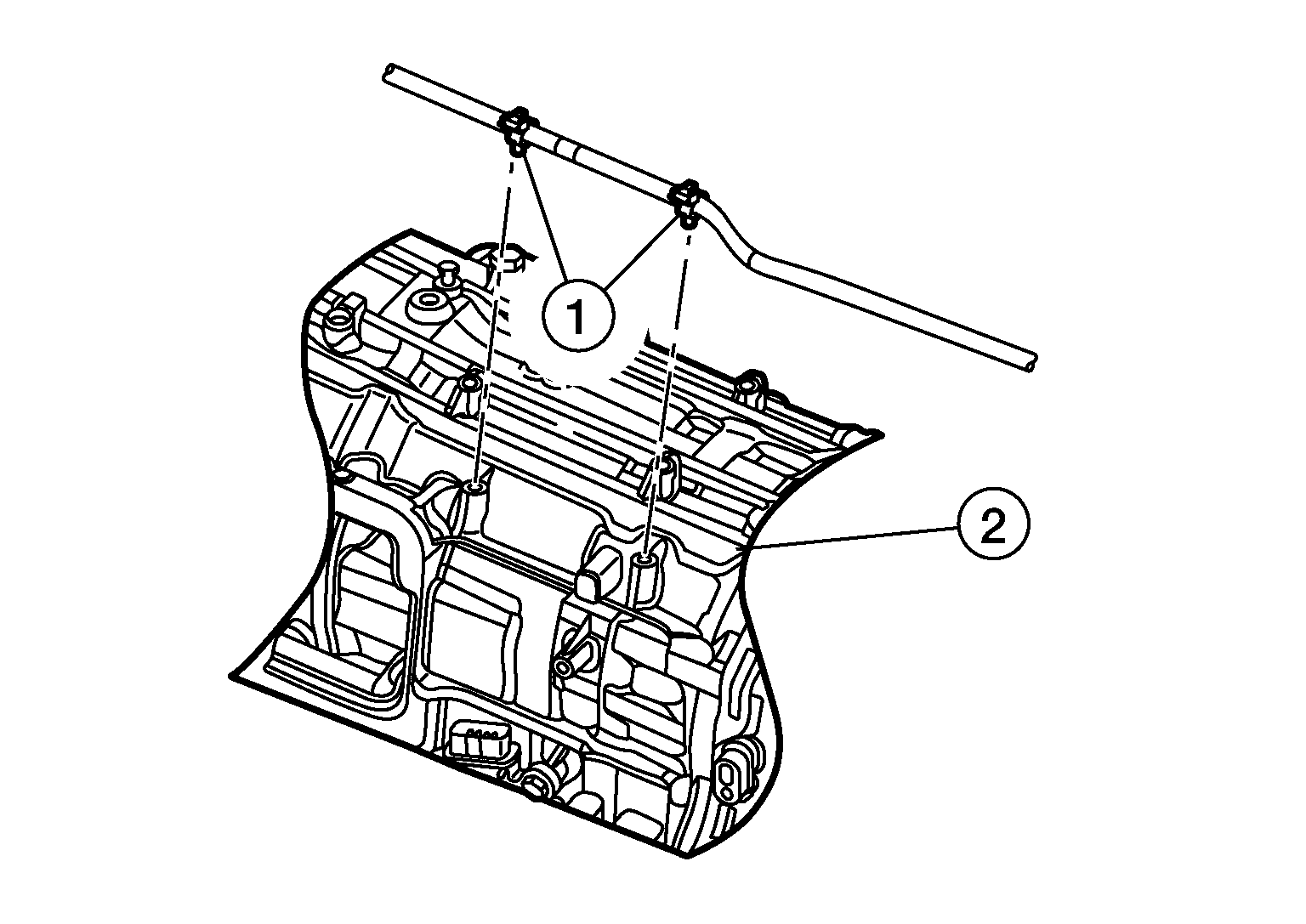

Insert the clips on the hose (1) securely into the A/T assembly (2).

Courtesy of NISSAN NORTH AMERICA, INC.

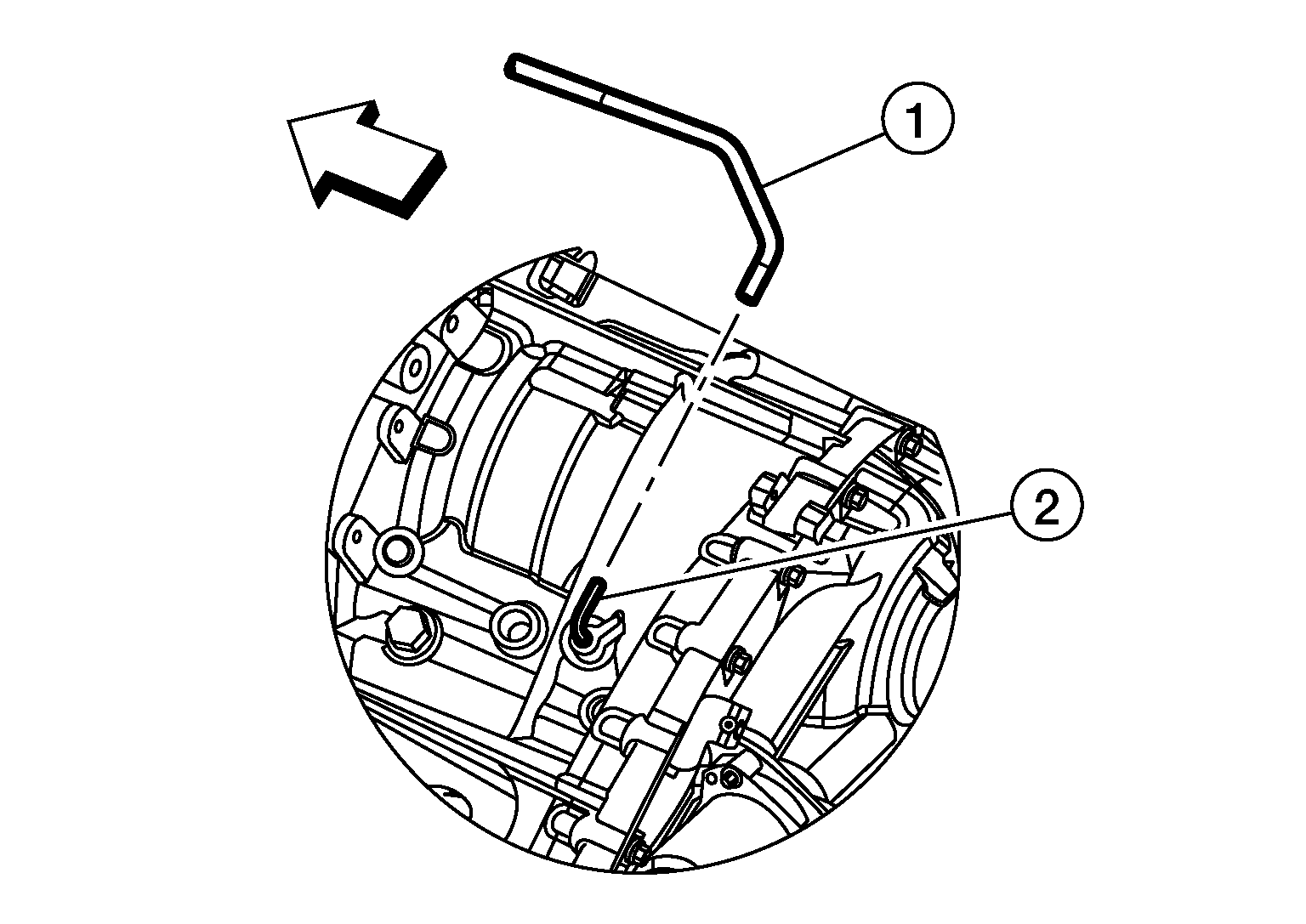

Install breather hose (1) to the breather tube (2).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Be sure to insert breather hose (1) to breather tube (2) until hose end reaches the bending radius of tube.

: Front

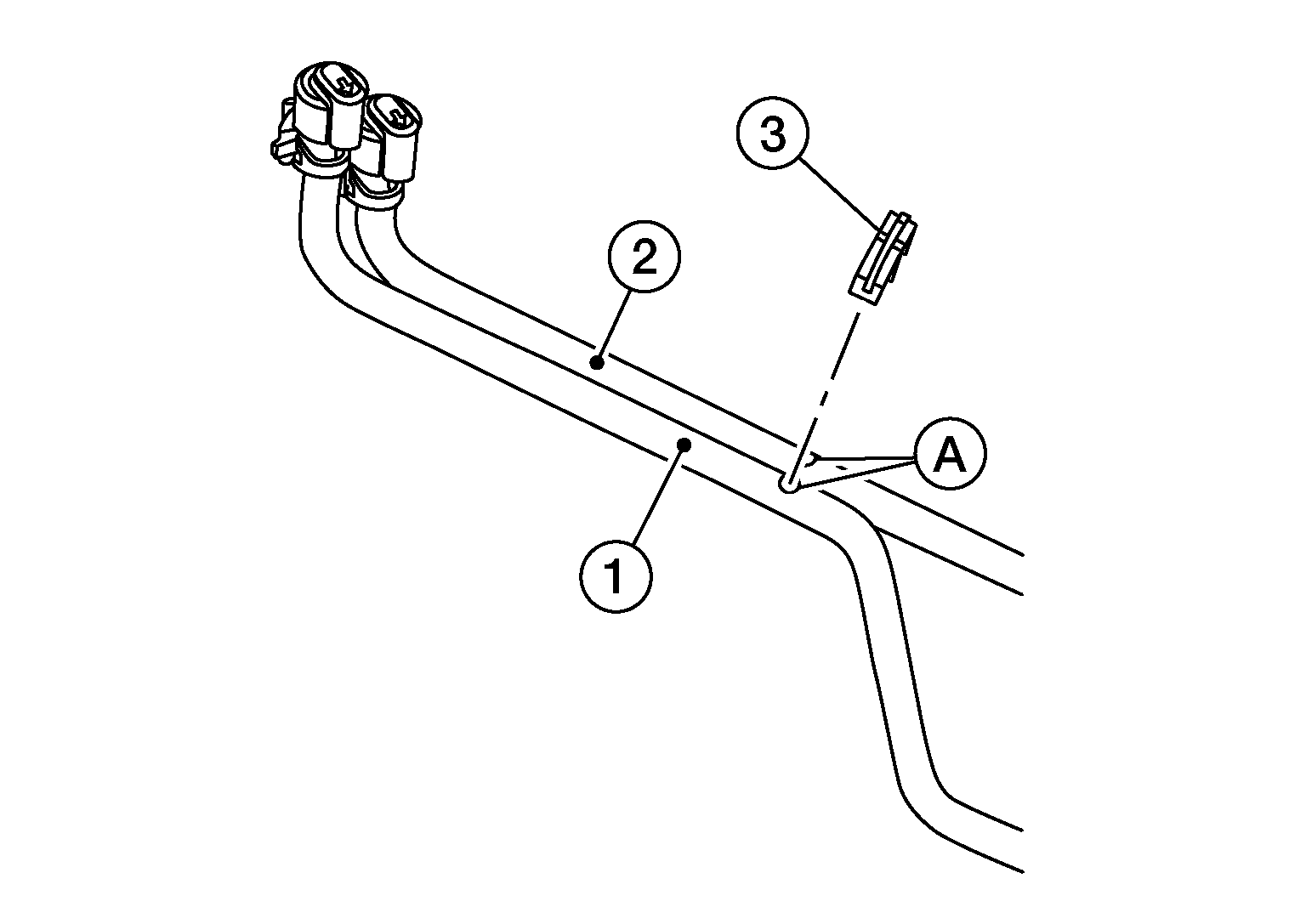

Secure transfer breather hose (1) to A/T breather hose (2) at paint marks (A) with clip (3).

Courtesy of NISSAN NORTH AMERICA, INC.
