Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

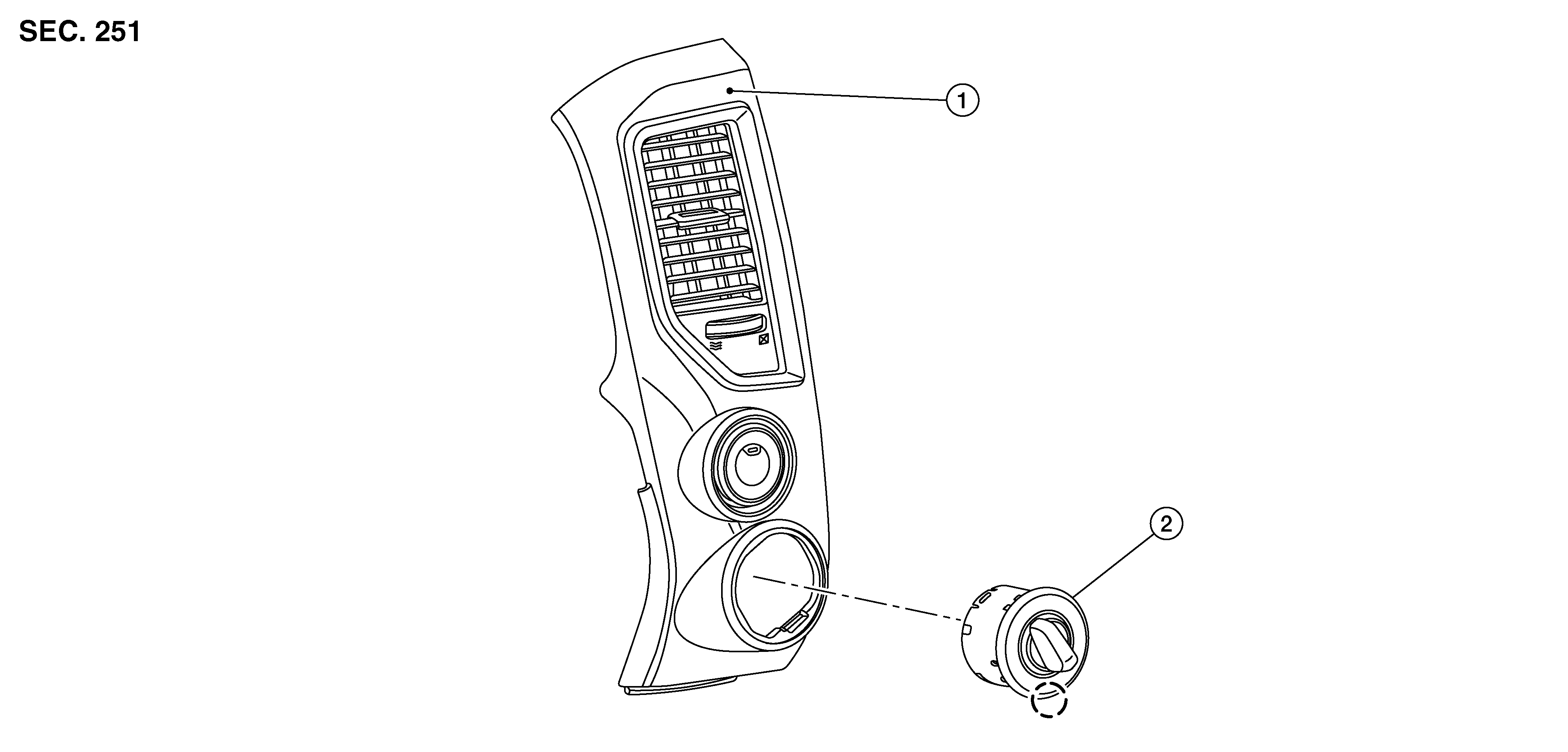

GNSDB114669Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cluster lid C finisher (LH)

2.

4WD shift switch

SYMBOL

Pawl
