Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect .
- Remove instrument lower panel LH. Refer to Removal and Installation .

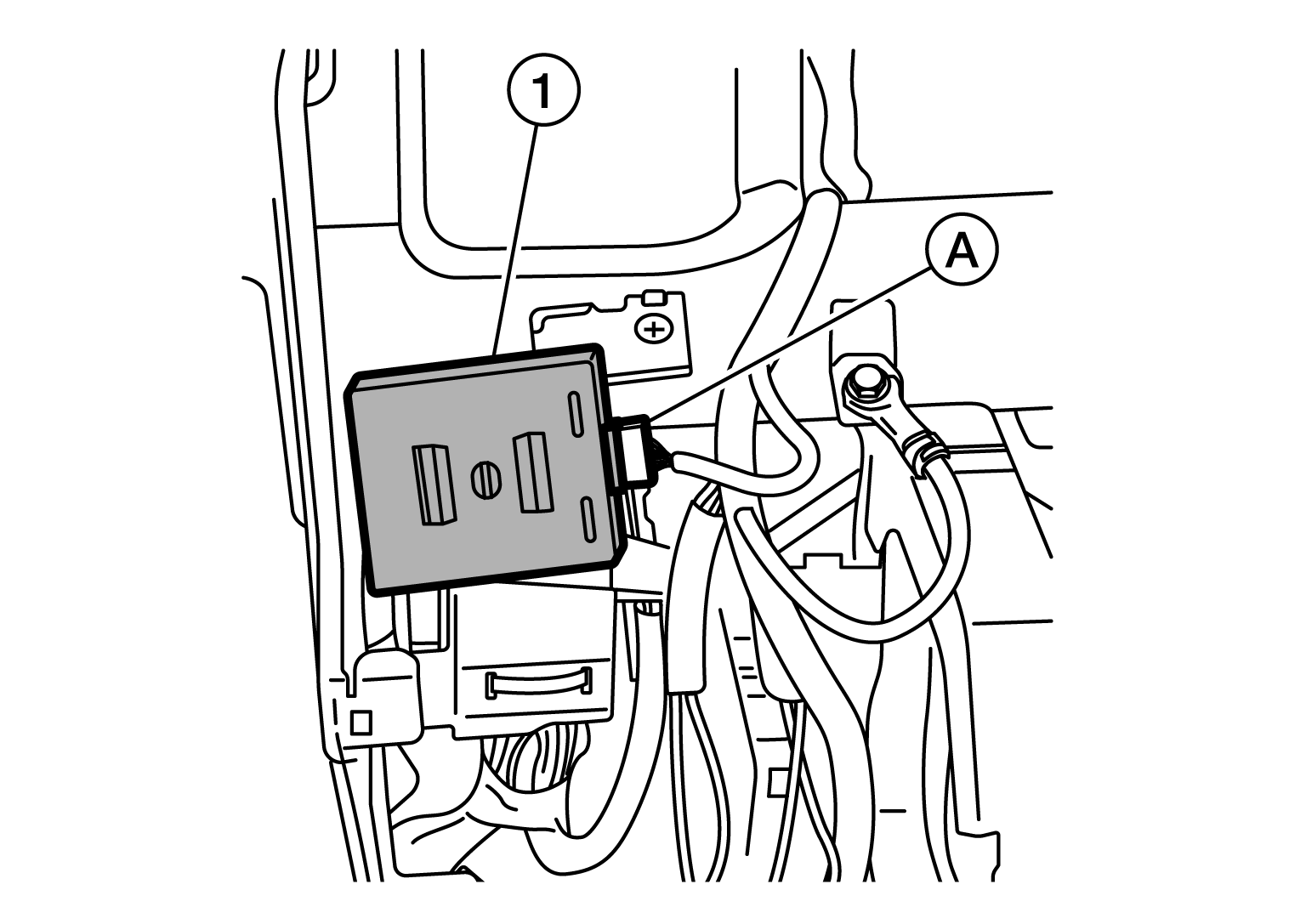

- Disconnect harness connector (A) from low tire pressure warning control unit (1).
- Remove screw (B) and low tire pressure warning control unit (1).
