Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

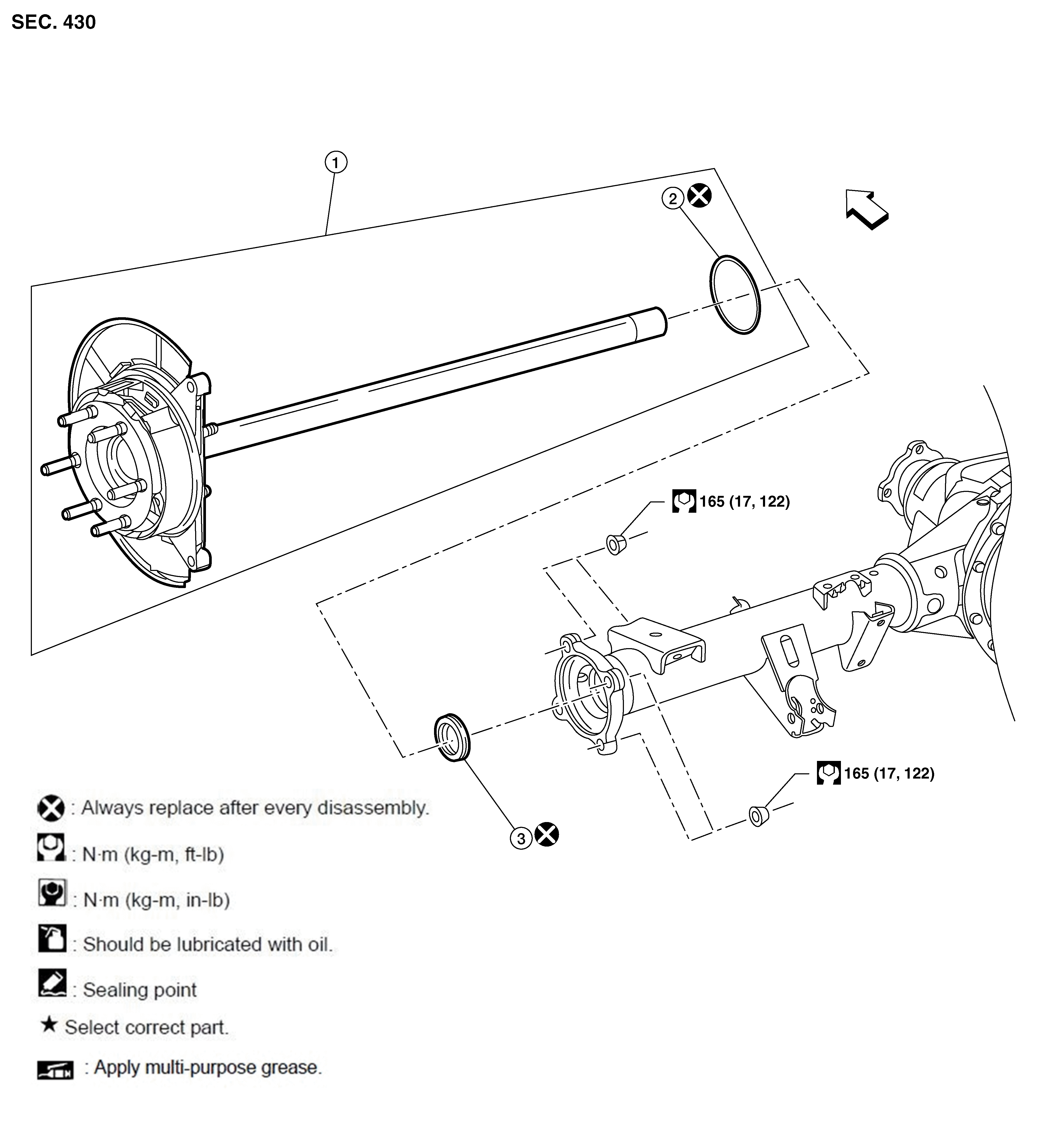

Fig 1: Rear Axle Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Axle shaft assembly	2.	O-ring	3.	Seal
	Front

NOTE: XD Models shown, Non-XD Models similar.
