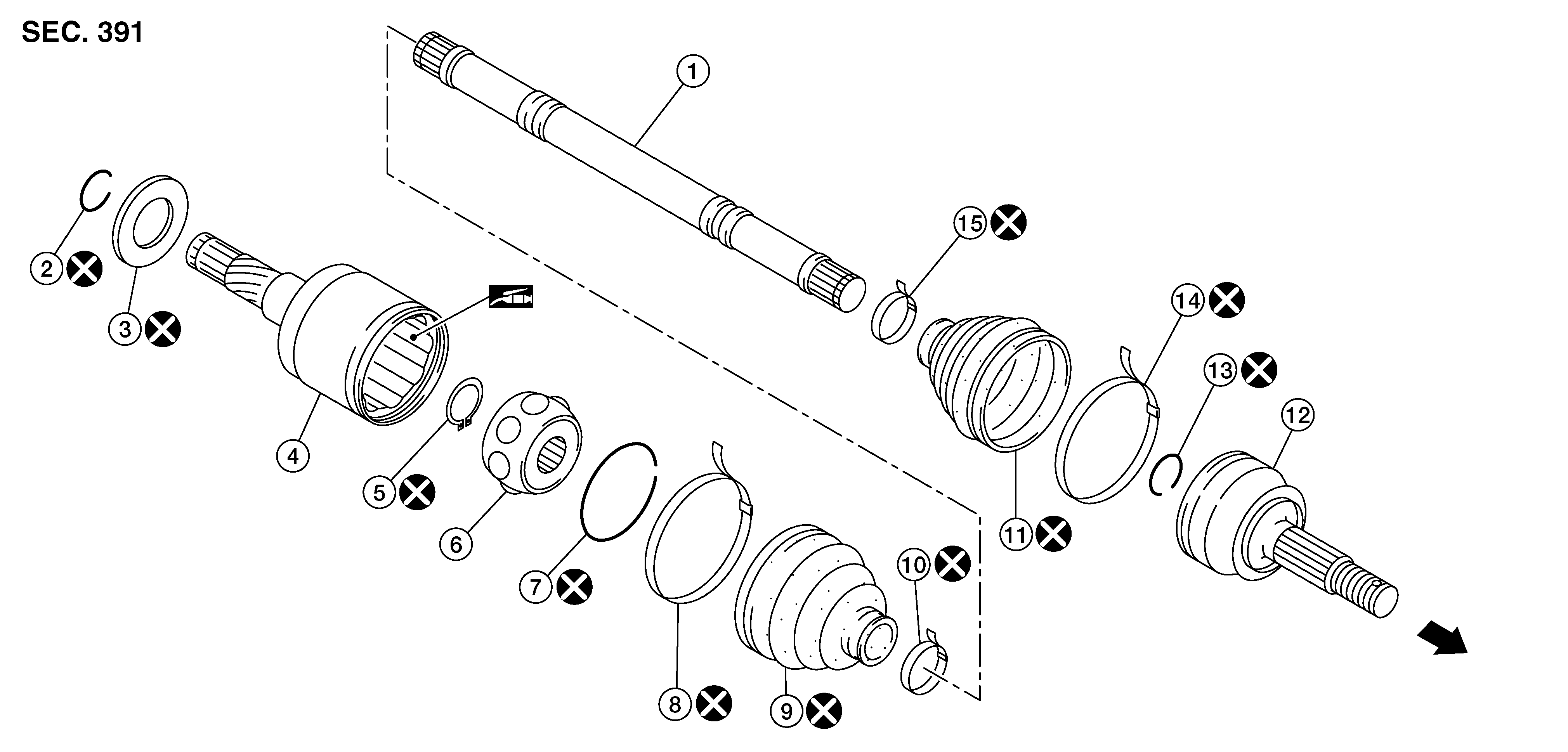

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Shaft |
2. |
Circular clip |
3. |
Dust shield |
|
4. |
Housing |
5. |
Snap ring |
6. |
Ball cage / Steel ball / Inner race assembly |
|
7. |
Stopper ring |
8. |
Boot band (large) |
9. |
Boot |
|
10. |
Boot band (small) |
11. |
Boot |
12. |
Joint sub-assembly |
|
13. |
Circular clip |
14. |
Boot band (large) |
15. |
Boot band (small) |
|
|
Wheel side |
NOTE:
- Items (2, 5, 8, 9 and 10) can be serviced as a kit.
- Items (11, 13, 14 and 15) can be serviced as a kit.
- For XD Models circular clip (2) is installed on the drive shaft assembly (housing)
- For Non-XD Models circular clip (2) is installed in the front drive assembly
