Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front disc brake rotor. Refer to Removal and Installation .
  2. Remove the brake hose from bracket on steering knuckle.
  3. Remove the front wheel sensor. Refer to Removal and Installation .
  4. Remove the harness from the retaining brackets.
  5. On 4WD models:
    1. Remove cotter pin from wheel hub lock nut.
      CAUTION: Do not reuse cotter pin.
    2. Loosen wheel hub lock nut using power tool.

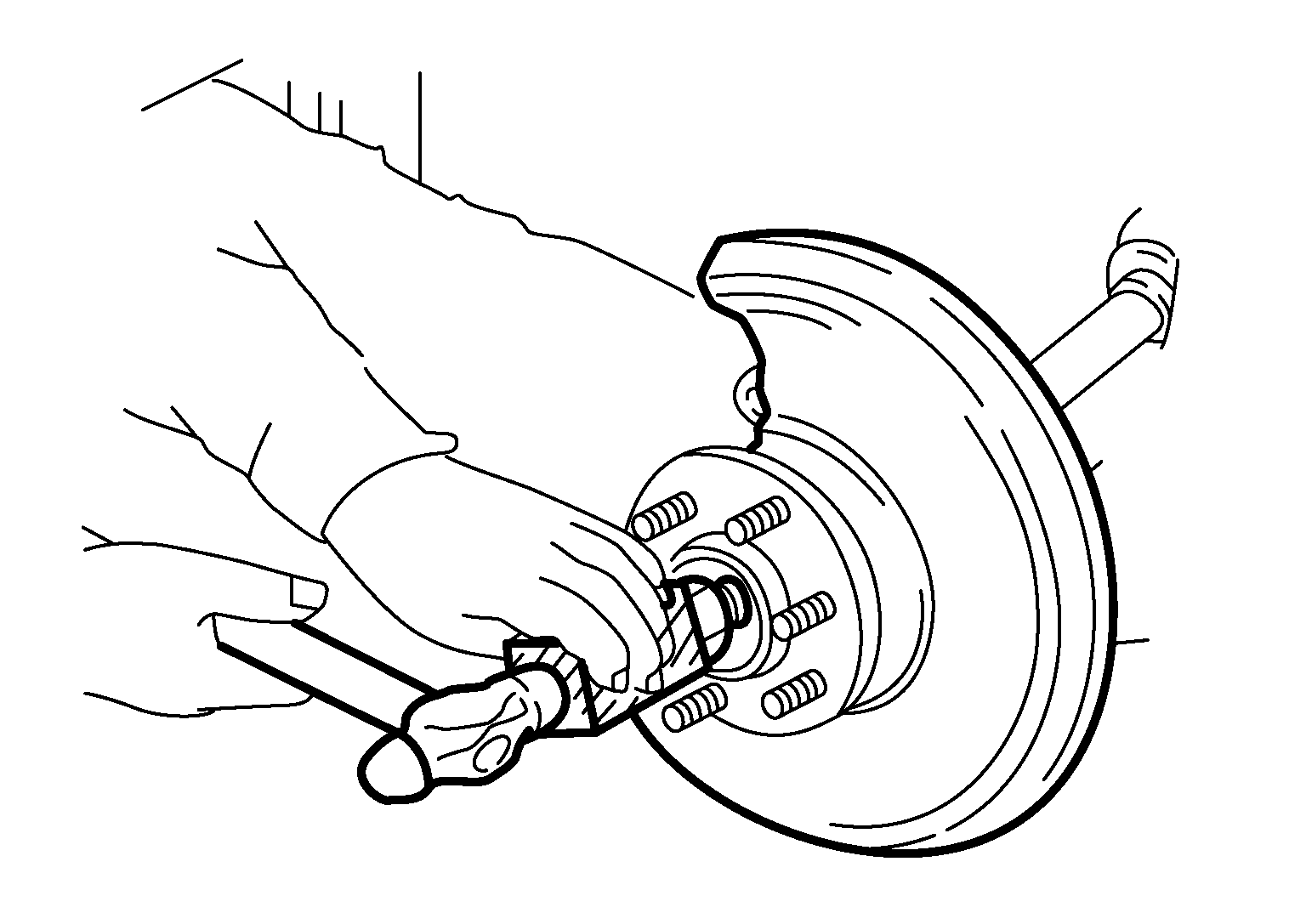

    3. Using a piece of wood and a suitable tool, tap on wheel hub lock nut to disengage front drive shaft.
      GNSAWDIA1365Z-365Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • Do not place drive shaft joint to an extreme angle. Also be careful not to overextend slide joint.
      • Do not allow drive shaft to hang down without support.
      NOTE: Use a suitable puller if drive shaft cannot be separated from wheel hub and bearing.
    4. Remove wheel hub lock nut
      CAUTION: Do not reuse wheel hub lock nut.
  6. Remove wheel hub and bearing bolts using power tool.
  7. Remove the wheel hub and bearing.
  8. If necessary, remove splash guard.
  9. If necessary, remove wheel studs (1) using a suitable tool (A).
    GNSJPDIF0299Z-299Courtesy of NISSAN NORTH AMERICA, INC.
