Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|

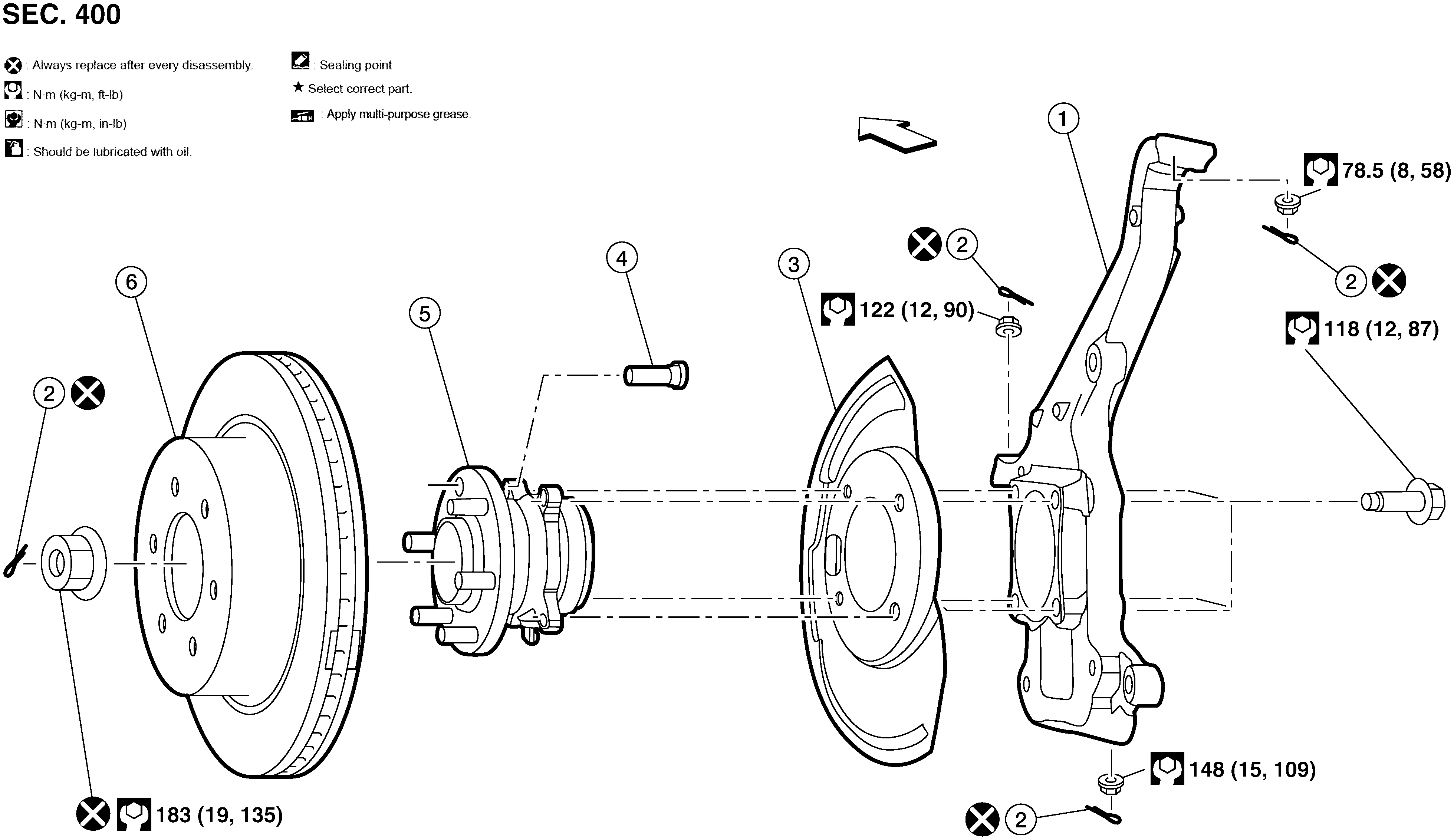

1.
|
Steering knuckle
|
2.
|
Cotter pin
|
3.
|
Splash guard
|
|
4.
|
Wheel stud
|
5.
|
Wheel hub and bearing
|
6.
|
Front disc brake rotor
|
|
|
Front
|
Courtesy of NISSAN NORTH AMERICA, INC.
|

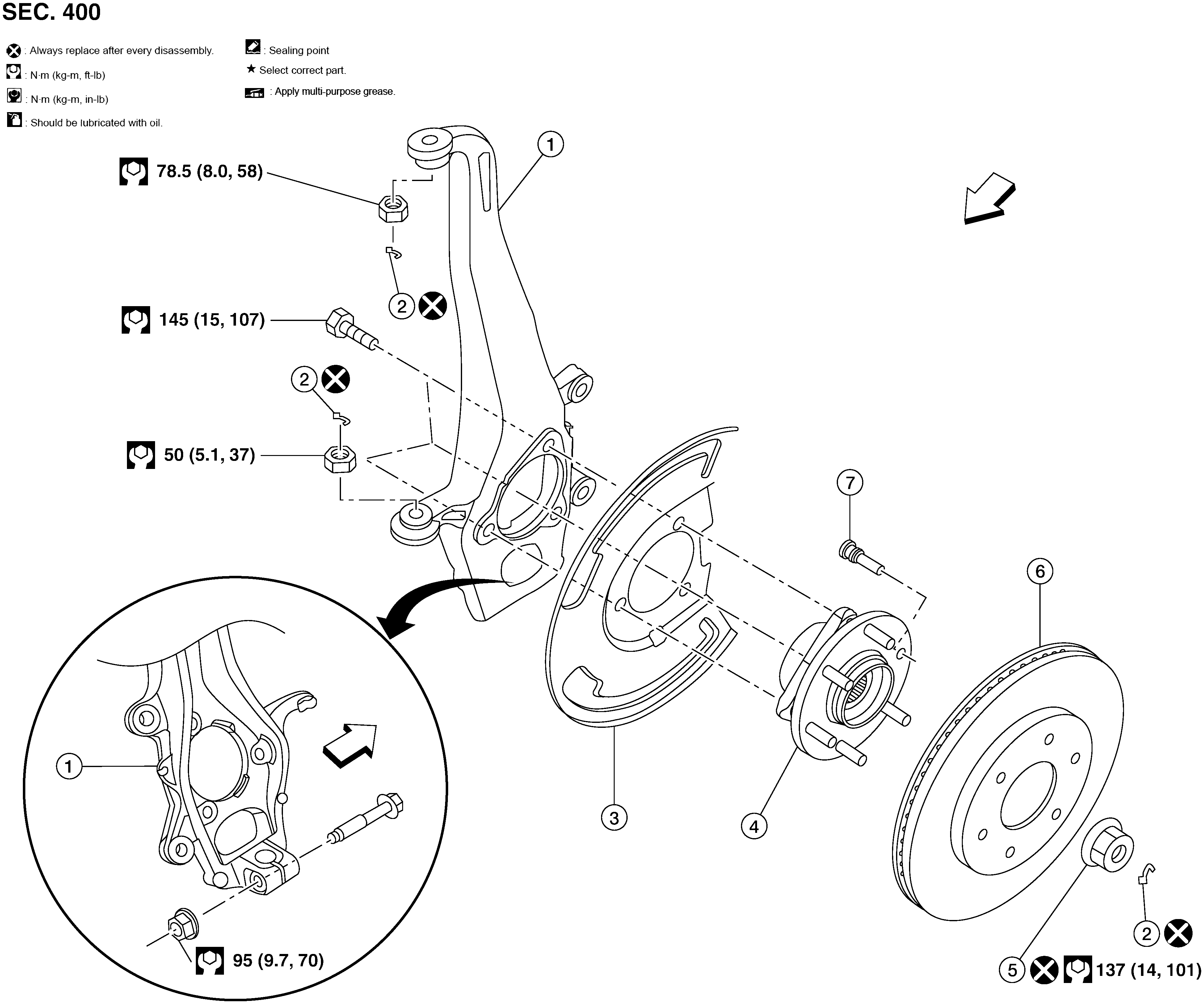

1.
|
Steering knuckle
|
2.
|
Cotter pin
|
3.
|
Splash guard
|
|
4.
|
Wheel hub and bearing
|
5.
|
Wheel hub lock nut (4WD)
|
6.
|
Front disc brake rotor
|
|
7.
|
Wheel stud
|
|
Front
|
