Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

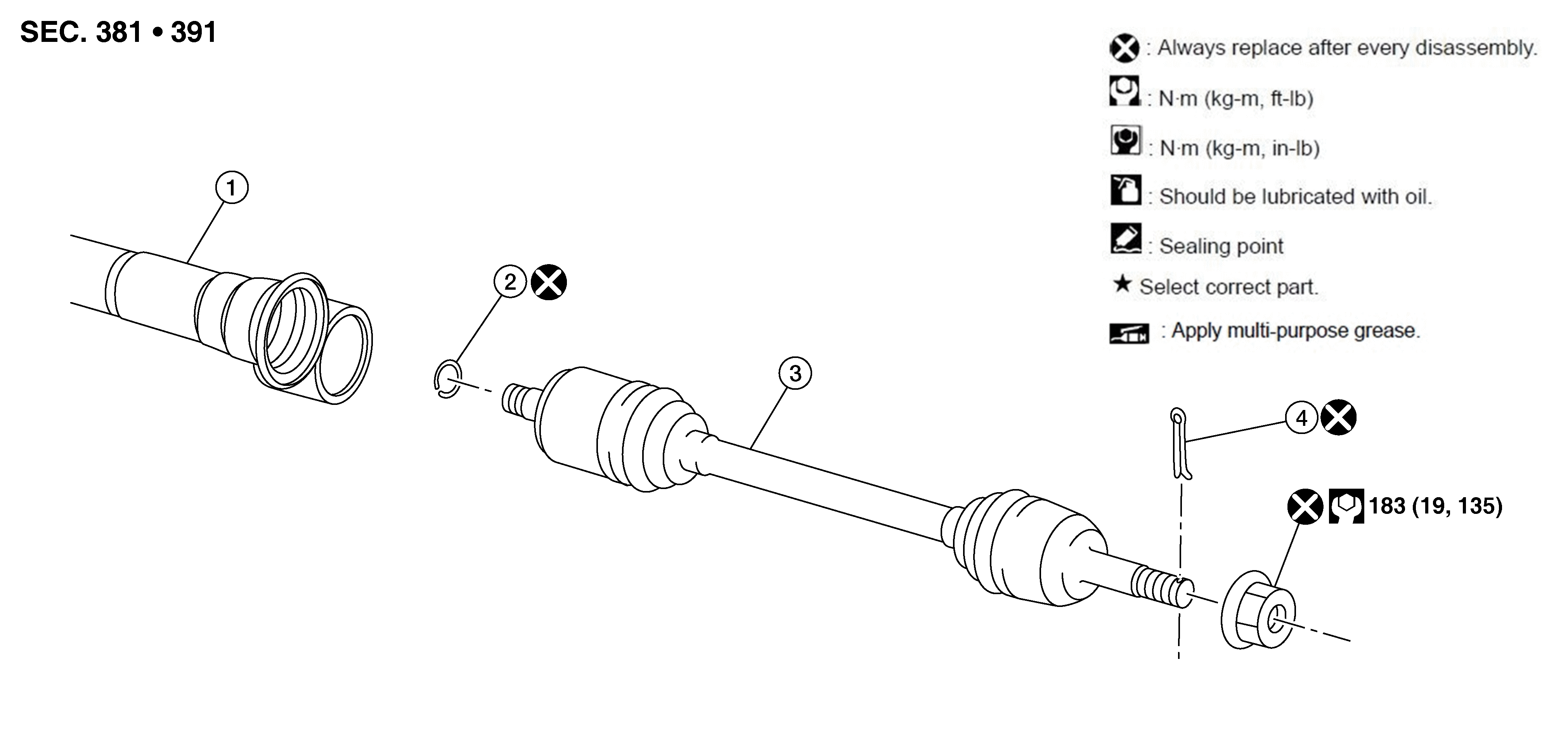

Fig 1: Front Drive Shaft XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front final drive assembly	2.	Circular clip	3.	Drive shaft
4.	Cotter pin

NOTE: For XD Models, the circular clip (2) is installed on the drive shaft assembly (housing).

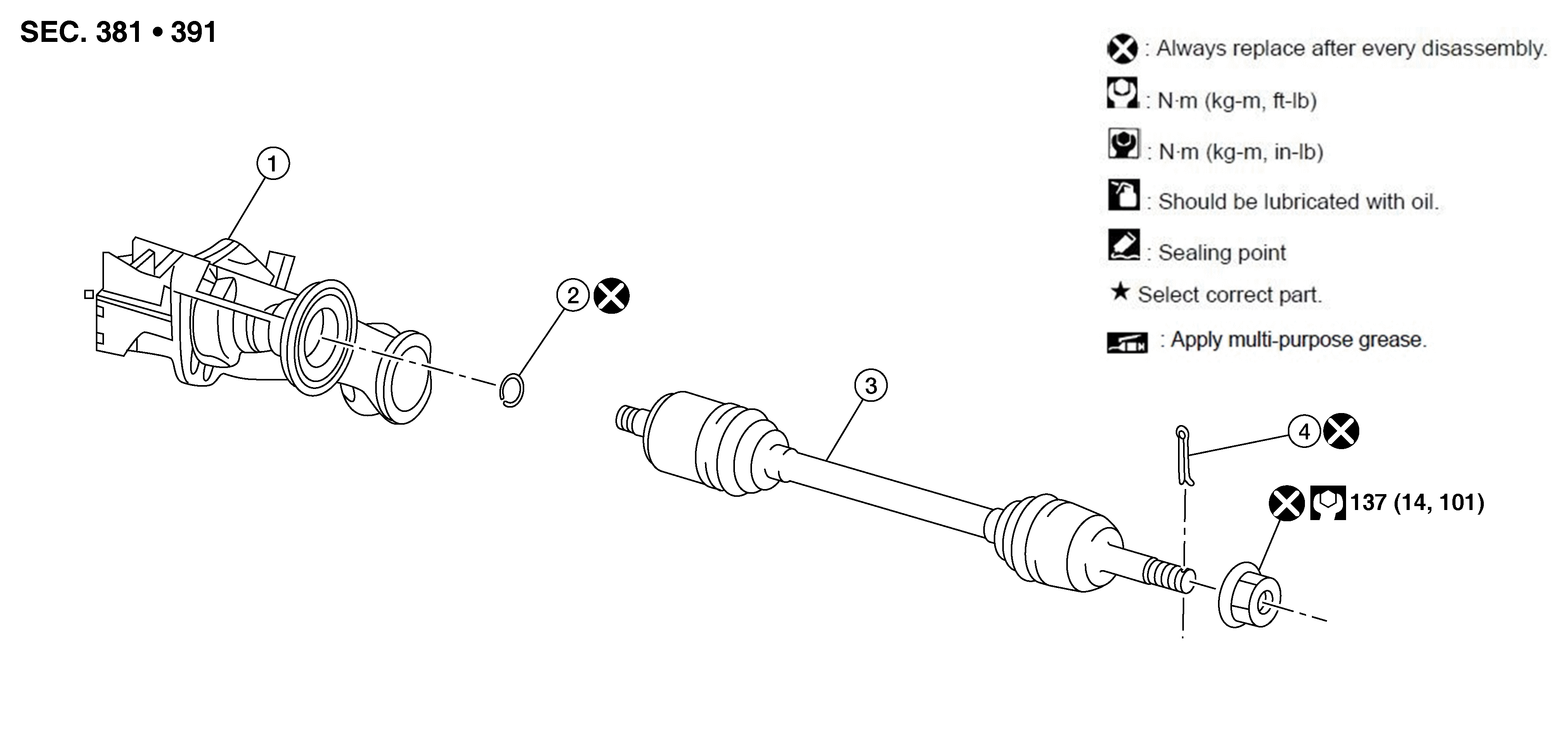

Fig 2: Front Drive Shaft Non-XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front final drive assembly	2.	Circular clip	3	Drive shaft
4.	Cotter pin

NOTE: For Non XD Models, the circular clip (2) is installed in the front drive assembly (1).
