Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front drive shaft. Refer to Removal and Installation .
  2. Secure front drive shaft in a vise.
    CAUTION: When securing shaft in a vise, always use copper or aluminum plates between vise and shaft.
  3. Remove circular clip from drive shaft assembly [housing (XD Models)].
    CAUTION: Do not reuse circular clip.
  4. Remove dust shield from housing.
    CAUTION: Do not reuse dust shield.
  5. Remove boot bands and slide boot back.
    CAUTION: Do not reuse boot bands.
  6. Put matching marks on housing and shaft.
    CAUTION: Use paint or an equivalent for matching marks. Do not scratch surfaces.
  7. Remove stopper ring using a suitable tool.
    G04150370Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse stopper ring.
  8. Pull out housing.
  9. Put matching marks on ball cage/steel ball/inner race assembly and shaft.
    CAUTION: Use paint or an equivalent for matching marks. Do not scratch surfaces.
  10. Remove snap ring using a suitable tool.

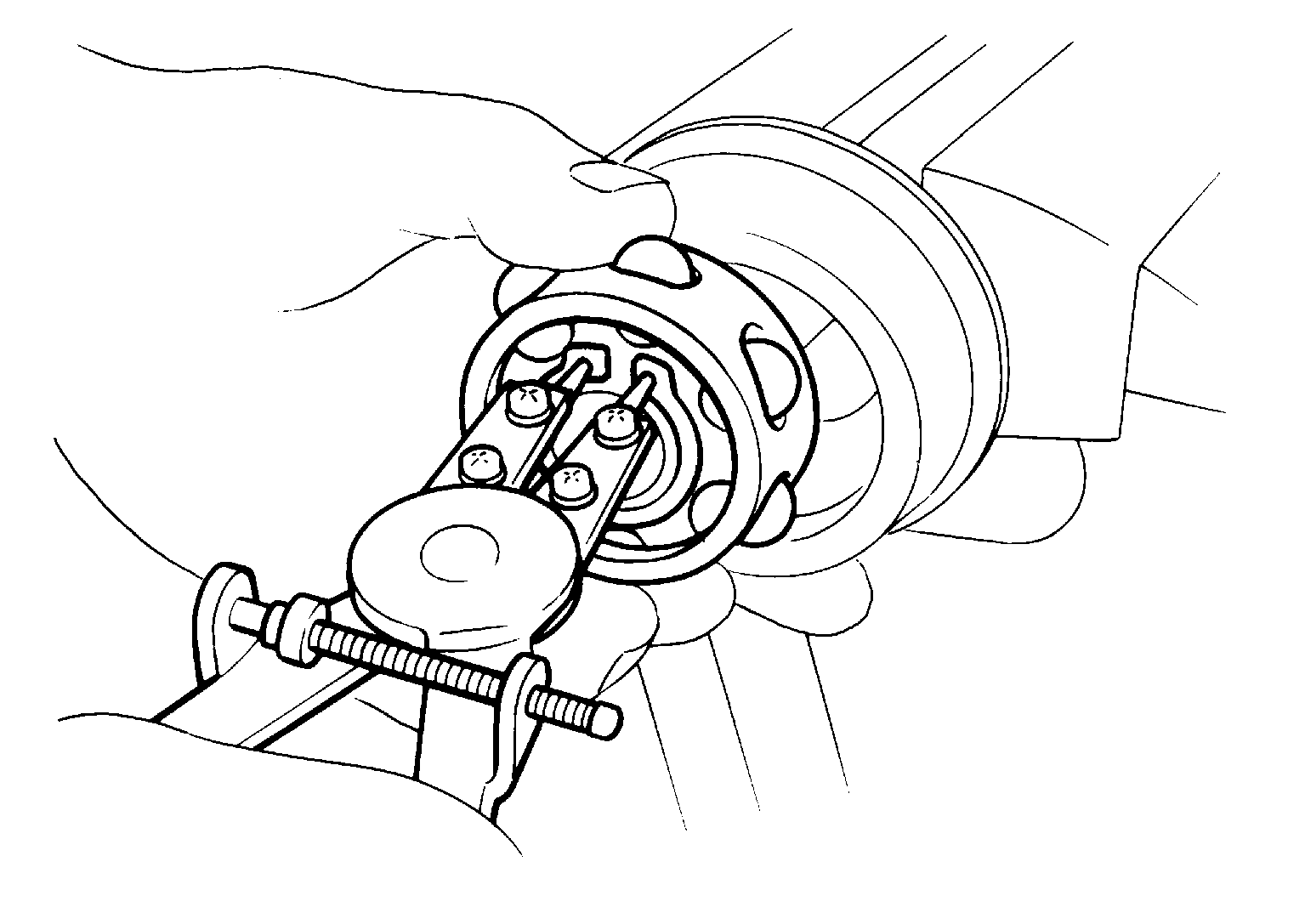

    G04076493Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse snap ring.
  11. Remove ball cage/steel ball/inner race assembly from shaft.
  12. Remove boot from shaft.
    CAUTION: Do not reuse boot.
  13. Remove old grease from housing.
