Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake caliper from the vehicle. Refer to Removal and Installation .
  2. Remove the brake pads.
    CAUTION: Do not remove guide pin caps, guide pins or cylinder body from the torque member unless replacement is necessary.
  3. Remove guide pins and guide pin boots from torque member.
  4. Place a wooden block in brake caliper body and blow air from union bolt hole to remove piston(s) and piston boot(s).
    WARNING: Do not get fingers caught between pistons and brake caliper body.
    CAUTION: Do not reuse piston boots.
    • XD Models
      G04076646Courtesy of NISSAN NORTH AMERICA, INC.
    • Non-XD Models

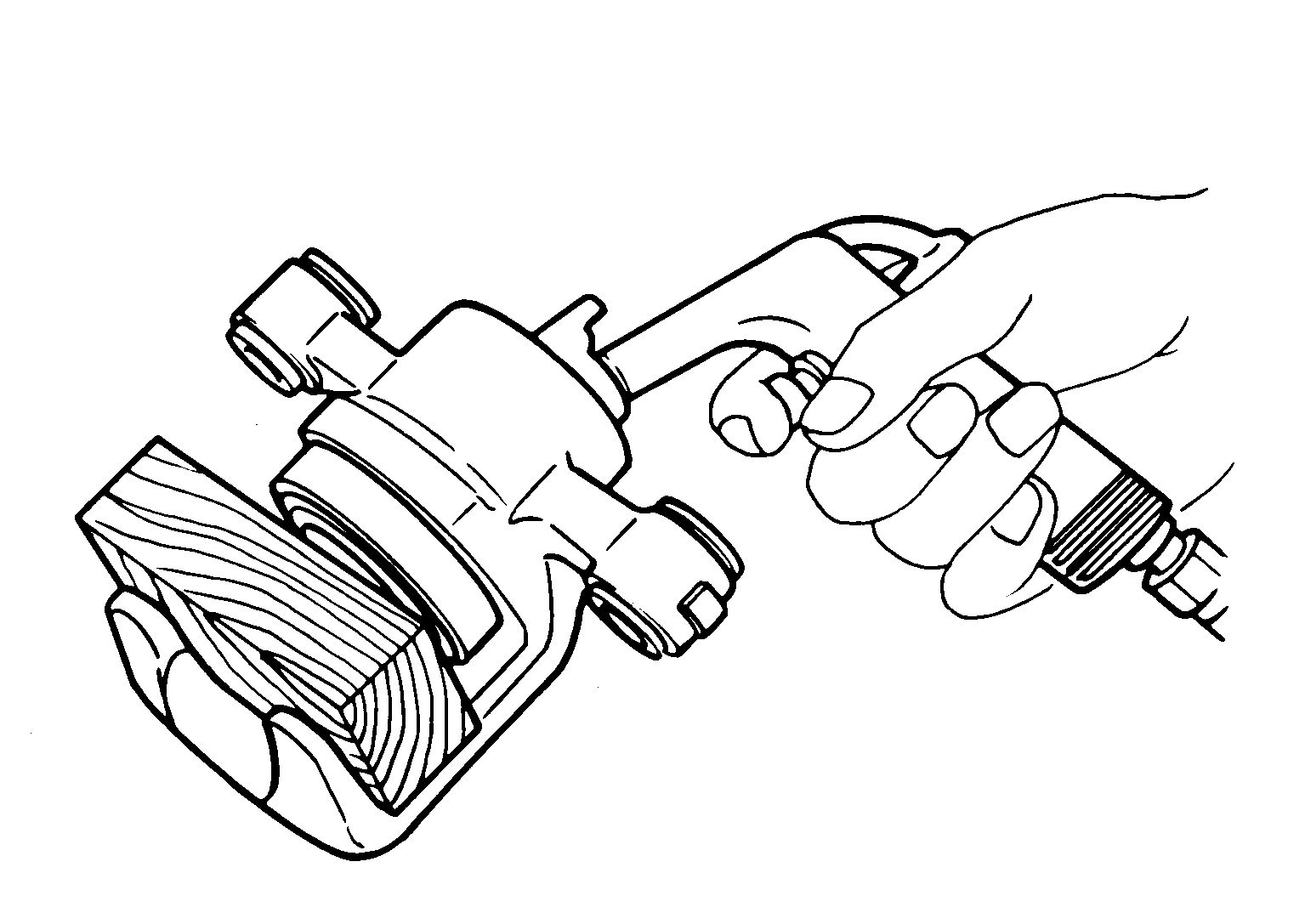

      G04134711Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove piston seal from brake caliper body using a suitable tool.
    CAUTION:
    • Do not damage cylinder inner wall.
    • Do not reuse piston seals.
    • XD Models
      G04082447Courtesy of NISSAN NORTH AMERICA, INC.
    • Non-XD Models

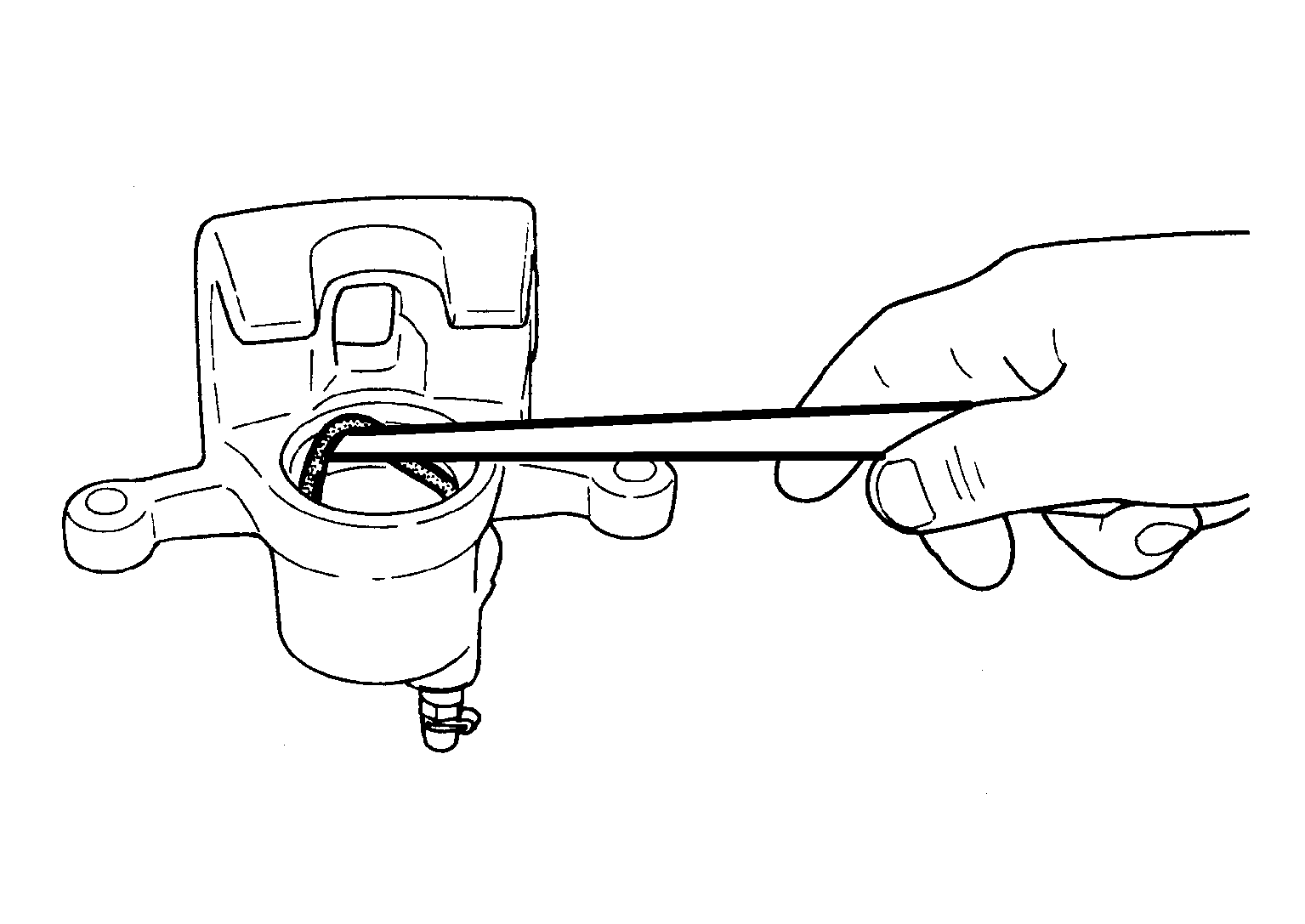

      GNSJPFIA0738Z-738Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove bleeder valve and cap.
