Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

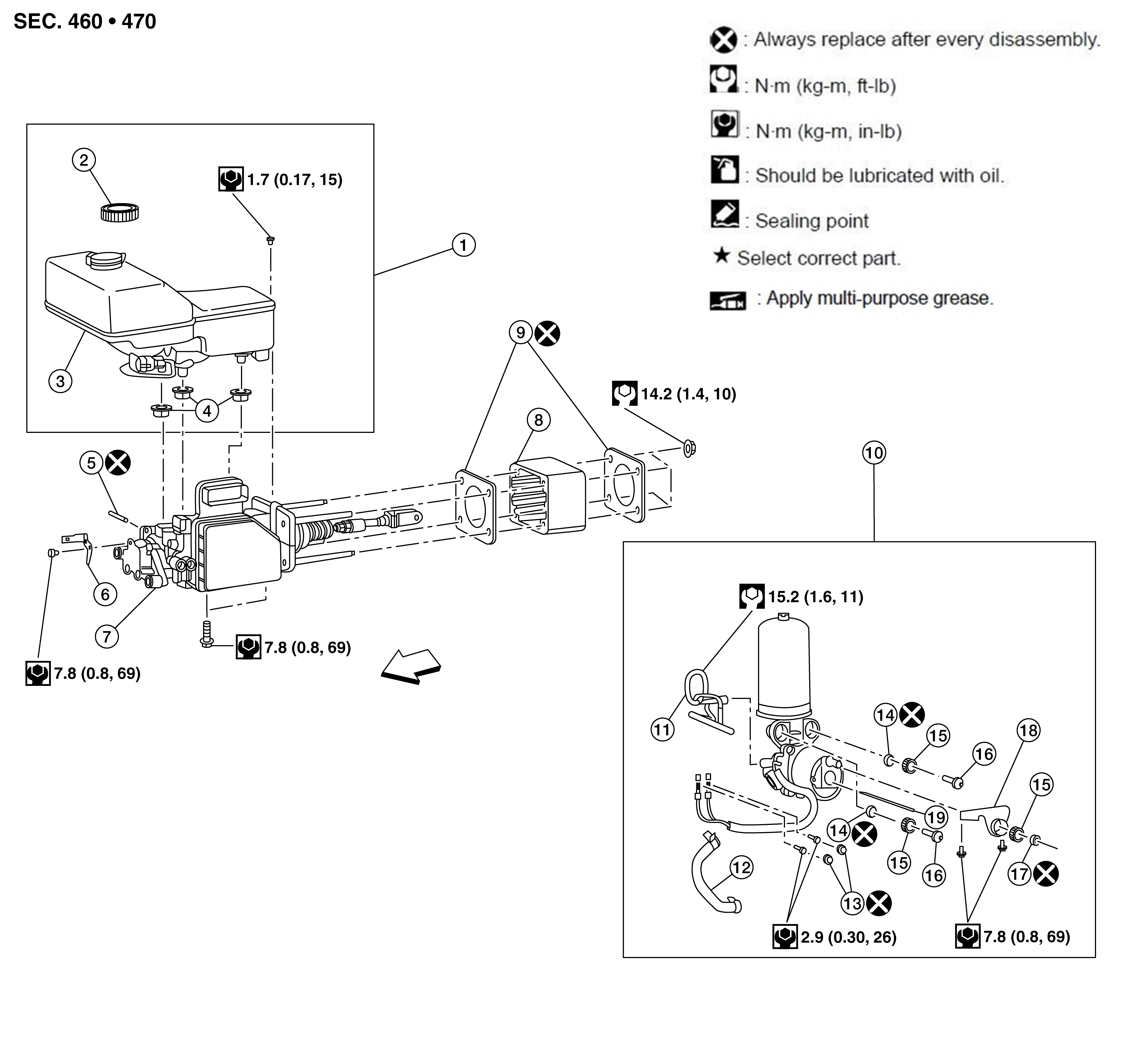

Fig 1: Hydraulic Booster Unit Disassembly And Assembly With Torque Specifications (XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank	2.	Reservoir cap	3.	Reservoir hose
4.	Reservoir seal	5.	Pin	6.	Reservoir tank connector bracket
7.	ABS actuator and electric unit (control unit) assembly	8.	Spacer	9.	Gaskets
10.	Motor/accumulator assembly	11.	Brake tube	12.	Pin
13.	Grommet	14.	Collar	15.	Bushing
16.	Pin	17.	Brake booster bracket	18.	Cap
	Front

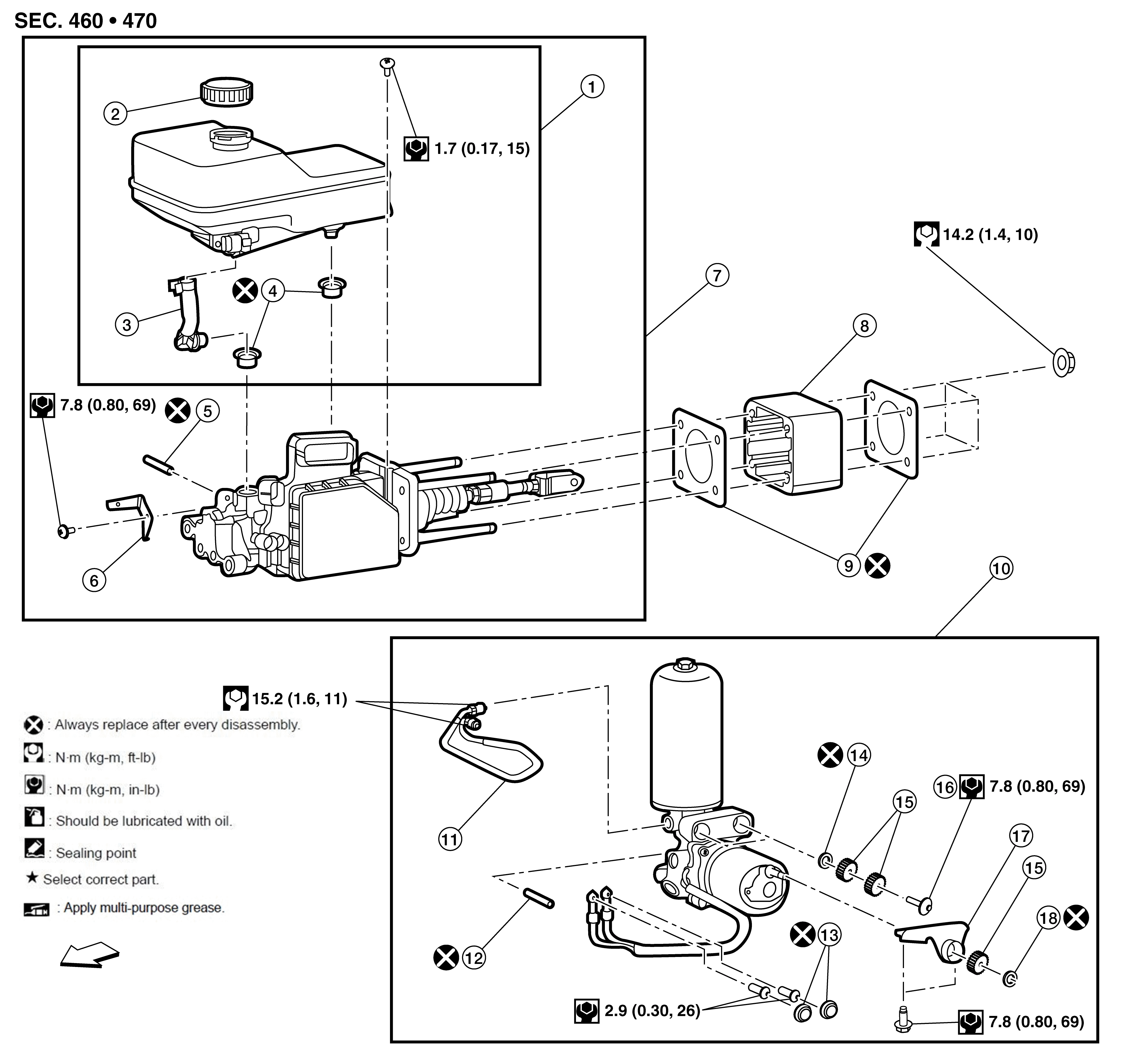

Fig 2: Hydraulic Booster Unit Disassembly And Assembly With Torque Specifications (Non XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank assembly	2.	Reservoir cap	3.	Reservoir tank
4.	Reservoir seal	5.	Pin	6.	Reservoir tank connector bracket
7.	ABS actuator and electric unit (control unit) assembly	8.	Spacer	9.	Gaskets
10.	Motor/accumulator assembly	11.	Brake tube	12.	Reservoir hose
13.	Grommet	14.	Collar	15.	Bushing
16.	Pin	17.	Cap	18.	Brake booster bracket
	Front
