Disassembly and Assembly: Assembly
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Assembly in the reverse order of disassembly.
CAUTION:
- Do not use mineral oils such as kerosene or gasoline and rubber grease during the cleaning and assembly process.
- Apply new brake fluid to new reservoir seals.
- Do not drop the removed parts when installing. The parts must not be reused if they are dropped.
- Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
- Do not reuse reservoir seals.
- Do not reuse pin for reservoir tank.
- Do not reuse pin for RH rear side of motor/accumulator assembly.
- Do not reuse gaskets.
- Do not reuse grommets.
- Do not reuse collar.
- Do not reuse bushing.
- Do not reuse cap.
- Apply new brake fluid to grommets between reservoir tank and ABS actuator and electric unit (control unit).

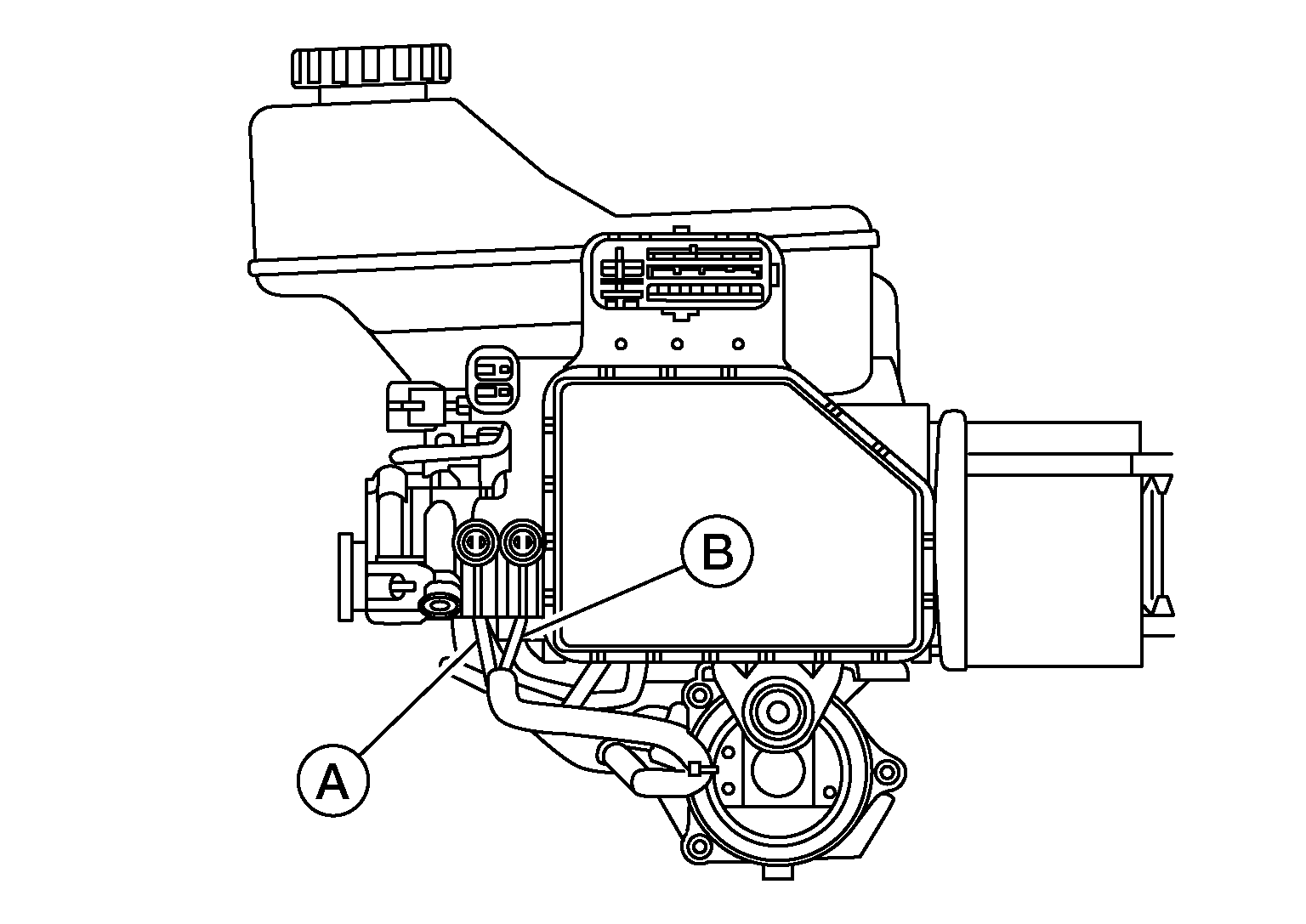

- When connecting motor/accumulator assembly harness, check the order of harness colors.
- Temporarily tighten the brake tube flare nut to the motor/accumulator assembly and ABS actuator and electric unit (control unit) by hand. Then tighten it to the specified torque with a flare nut crowfoot and torque wrench.CAUTION: Do not scratch the flare nut and the brake tube.
