Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Be careful not to damage hydraulic booster assembly stud bolt threads. If hydraulic booster assembly is tilted during installation, the dash panel may damage the threads.
- Do not reuse a hydraulic booster assembly after an excessive impact. (Slight impulse caused during installation work is acceptable).

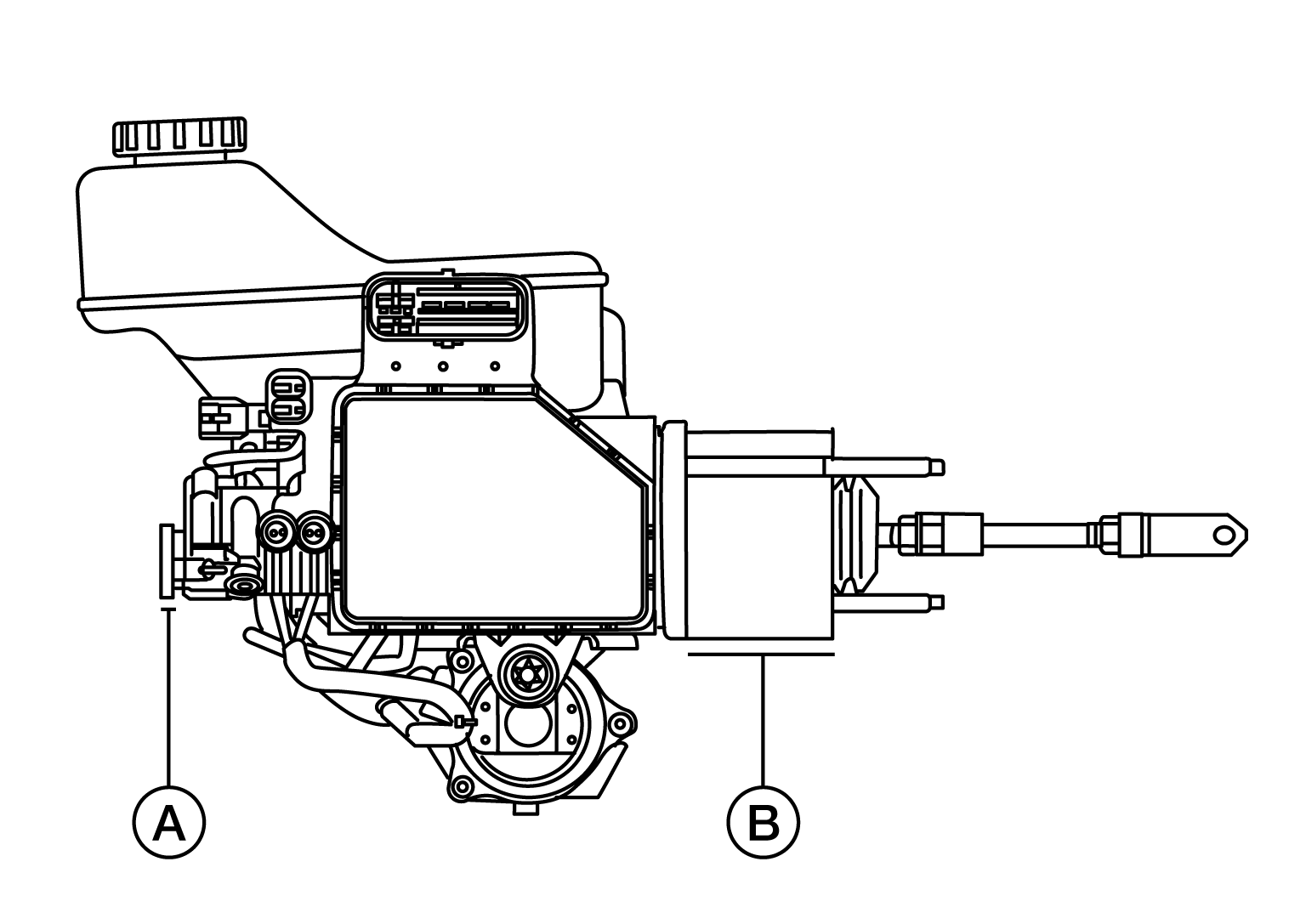

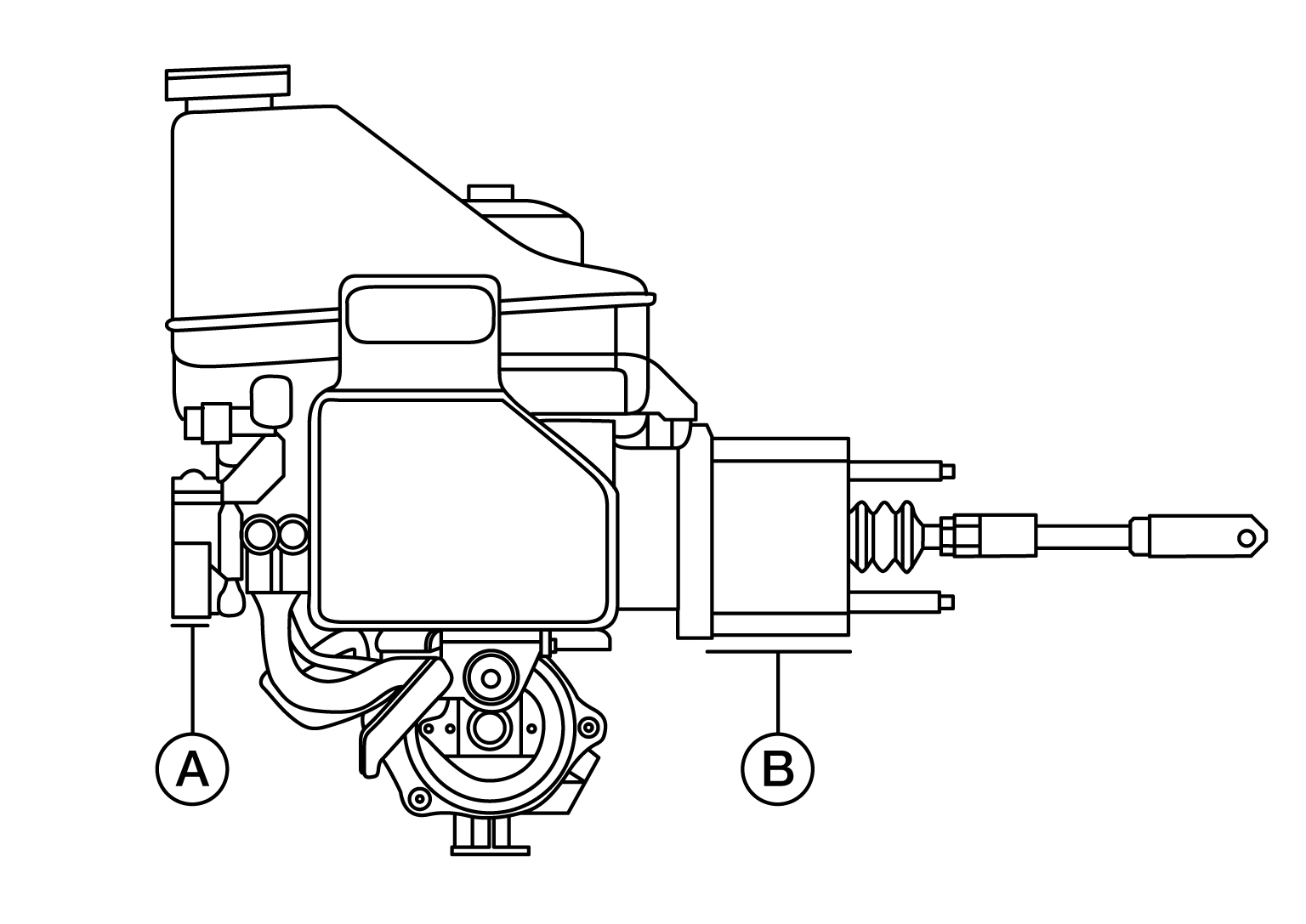

- Always hold the spacer block and front part of ABS actuator and electric unit (control unit) when installing the hydraulic booster assembly.
- Do not deform or bend the brake tubes when installing the hydraulic booster assembly.
- Always use a new gasket between the hydraulic booster assembly, spacer and the dash panel.
- Replace the clevis pin if it is damaged.
- If the ABS actuator and electric unit (control unit) was replaced, perform the additional service when replacing the ABS actuator and electric unit (control unit). Refer to Description .
- Bleed the brake system. Refer to Bleeding Brake System .
- Perform the brake pedal adjustment after installing the brake pedal assembly and hydraulic booster assembly. Refer to Inspection .
- Perform inspection after installation. Refer to Inspection .
