Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

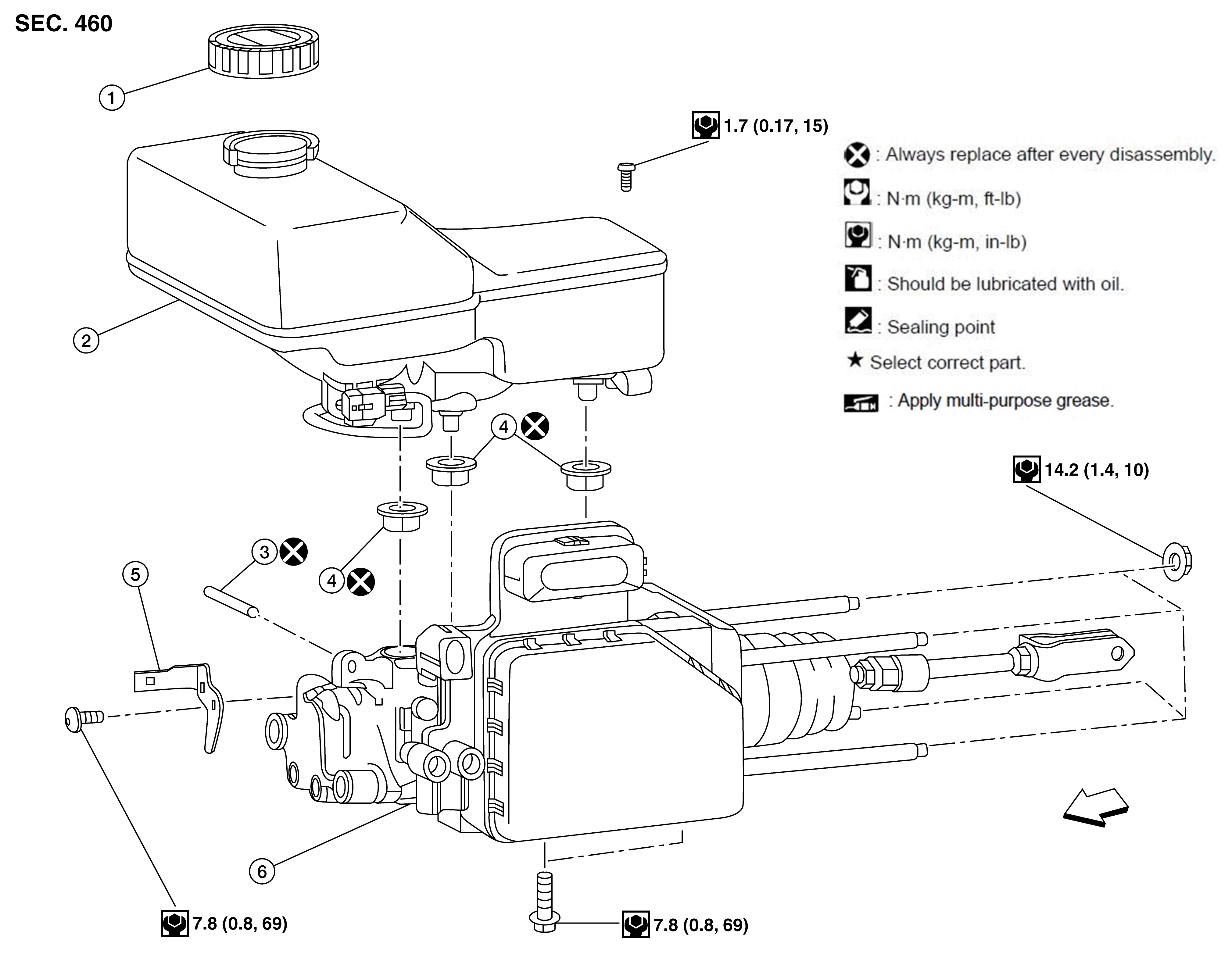

Fig 1: Hydraulic Booster Assembly With Torque Specifications (XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir cap	2.	Reservoir tank	3.	Reservoir hose
4.	Reservoir seal	5.	Pin	6.	Reservoir tank bracket
7.	ABS actuator and electric unit (control unit) assembly		Front

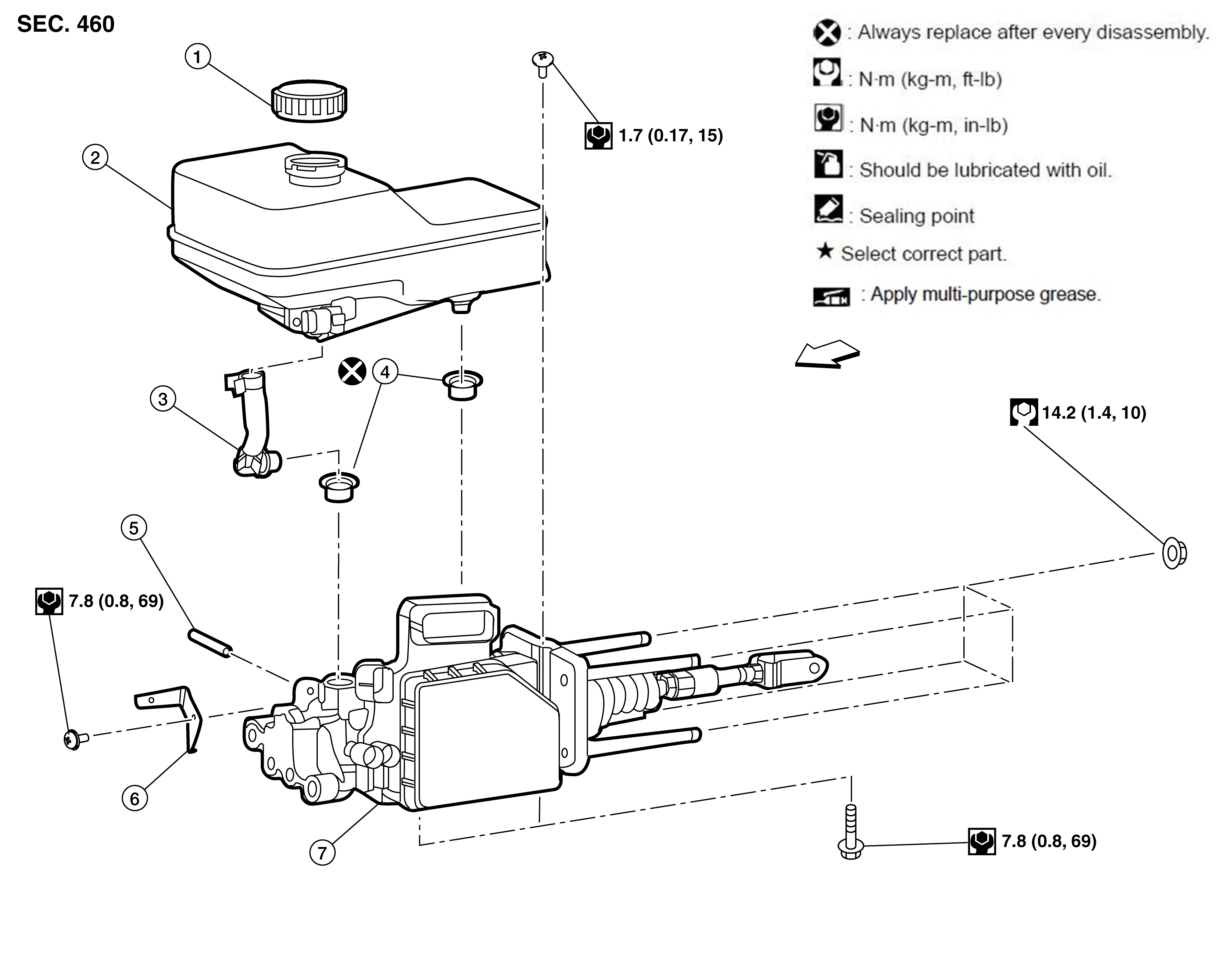

Fig 2: Hydraulic Booster Assembly With Torque Specifications (Non-XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir cap	2.	Reservoir tank	3.	Pin
4.	Reservoir seal	5.	Reservoir connector bracket	6.	ABS actuator and electric unit (control unit) assembly
	Front
