Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

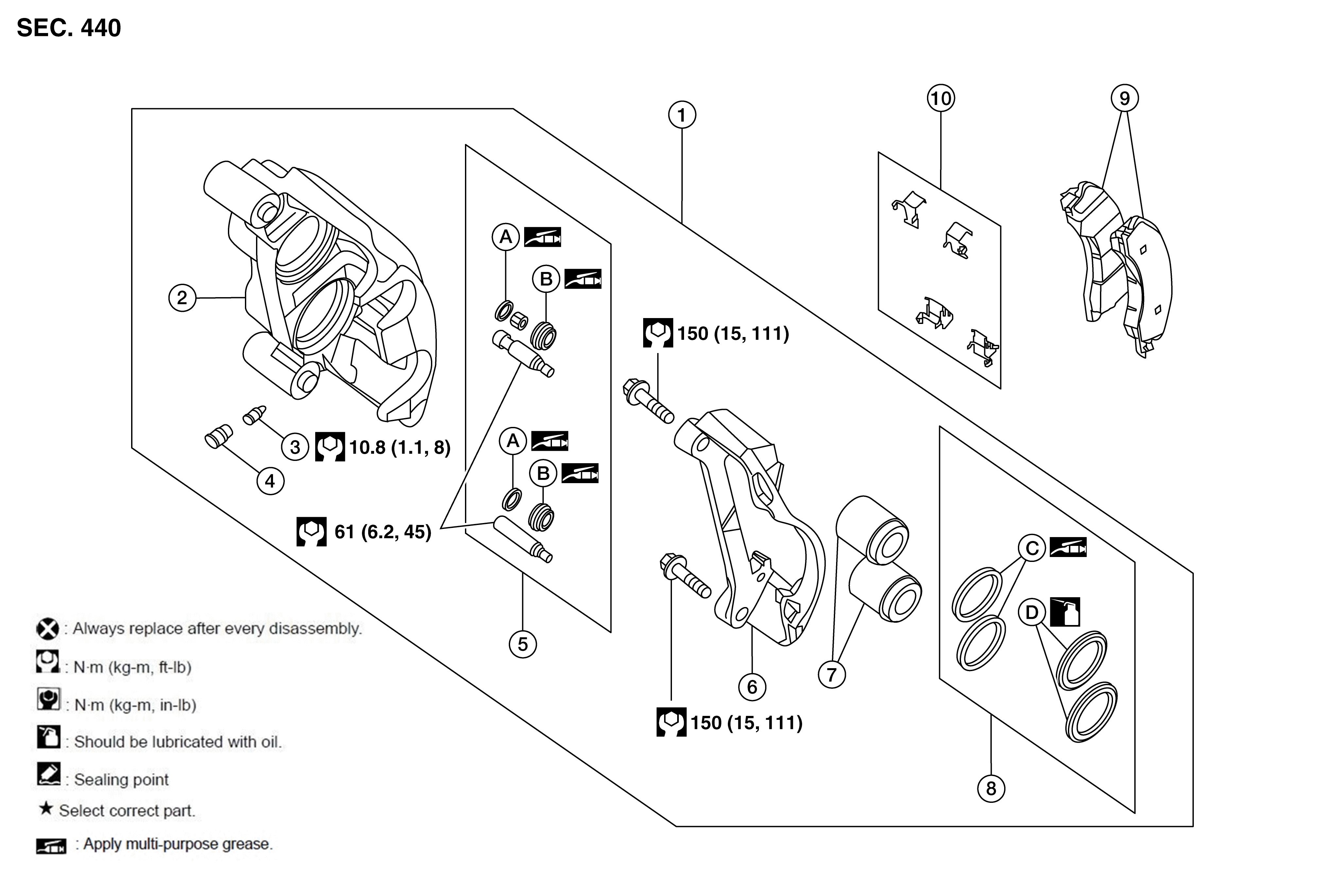

Fig 1: Front Disc Brake With Torque Specifications (XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Caliper assembly	2.	Caliper body	3.	Bleeder valve
4.	Bleeder cap	5.	Slide pin kit	6.	Torque member
7.	Pistons	8.	Piston seal kit	9.	Pad kit
10.	Pad retainer kit	A.	CCI #20	B.	Niglube RM
C.	Rubber grease	D.	Brake fluid

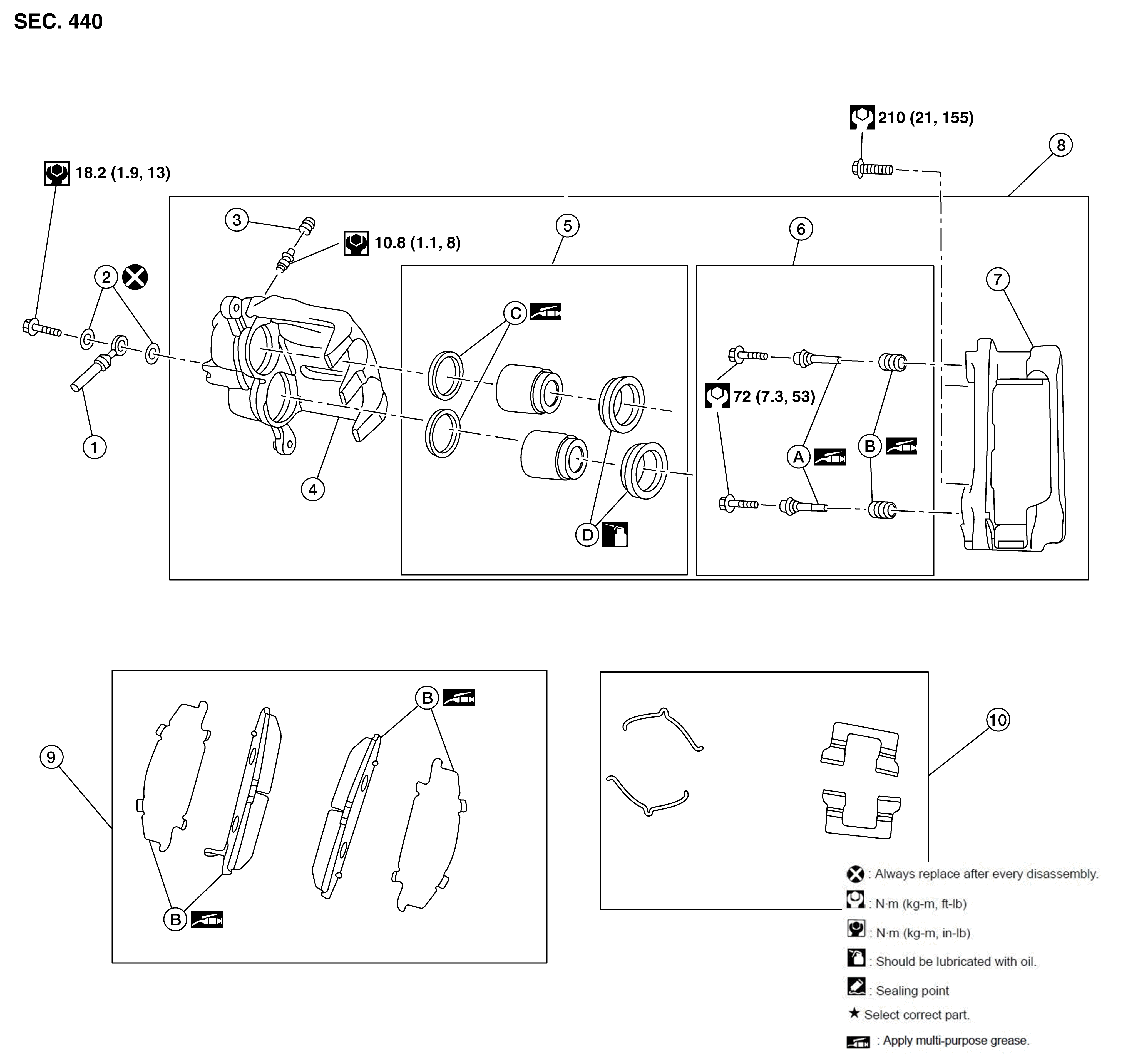

Fig 2: Front Disc Brake With Torque Specifications (Non-XD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake hose	2.	Copper washers	3.	Bleeder cap
4.	Caliper body	5.	Piston seal kit	6.	Slide pin kit
7.	Torque member	8.	Caliper assembly	9.	Pad kit
10.	Pad retainer kit	A.	CCI #20	B.	Niglube RM
C.	Rubber grease	D.	Brake fluid
