Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

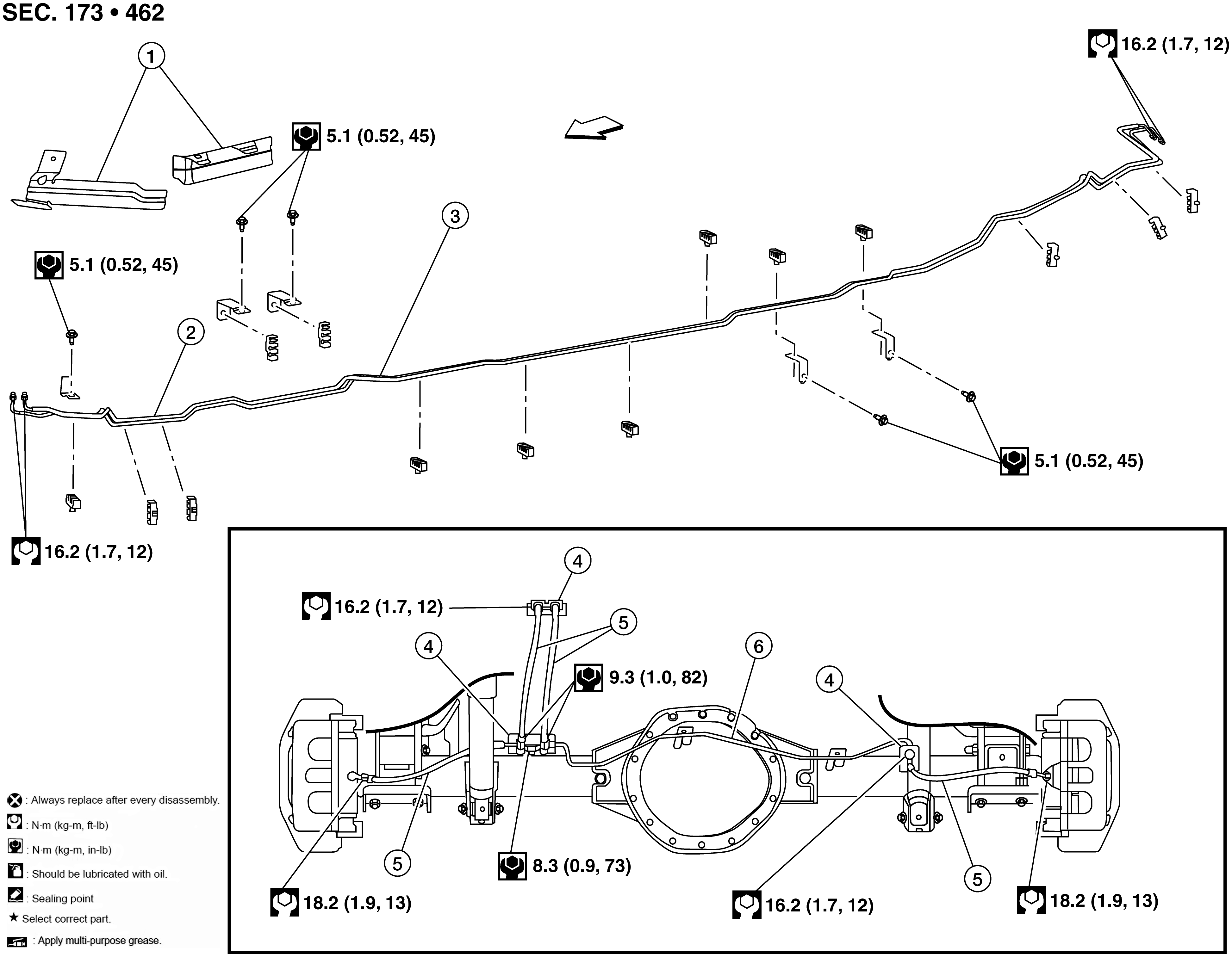

Fig 1: Rear Brake Piping With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel protector	2.	Rear brake pipe (RH)	3.	Rear brake pipe (LH)
4.	Lock plate	5.	Rear brake hose	6.	Rear brake pipe
	Front

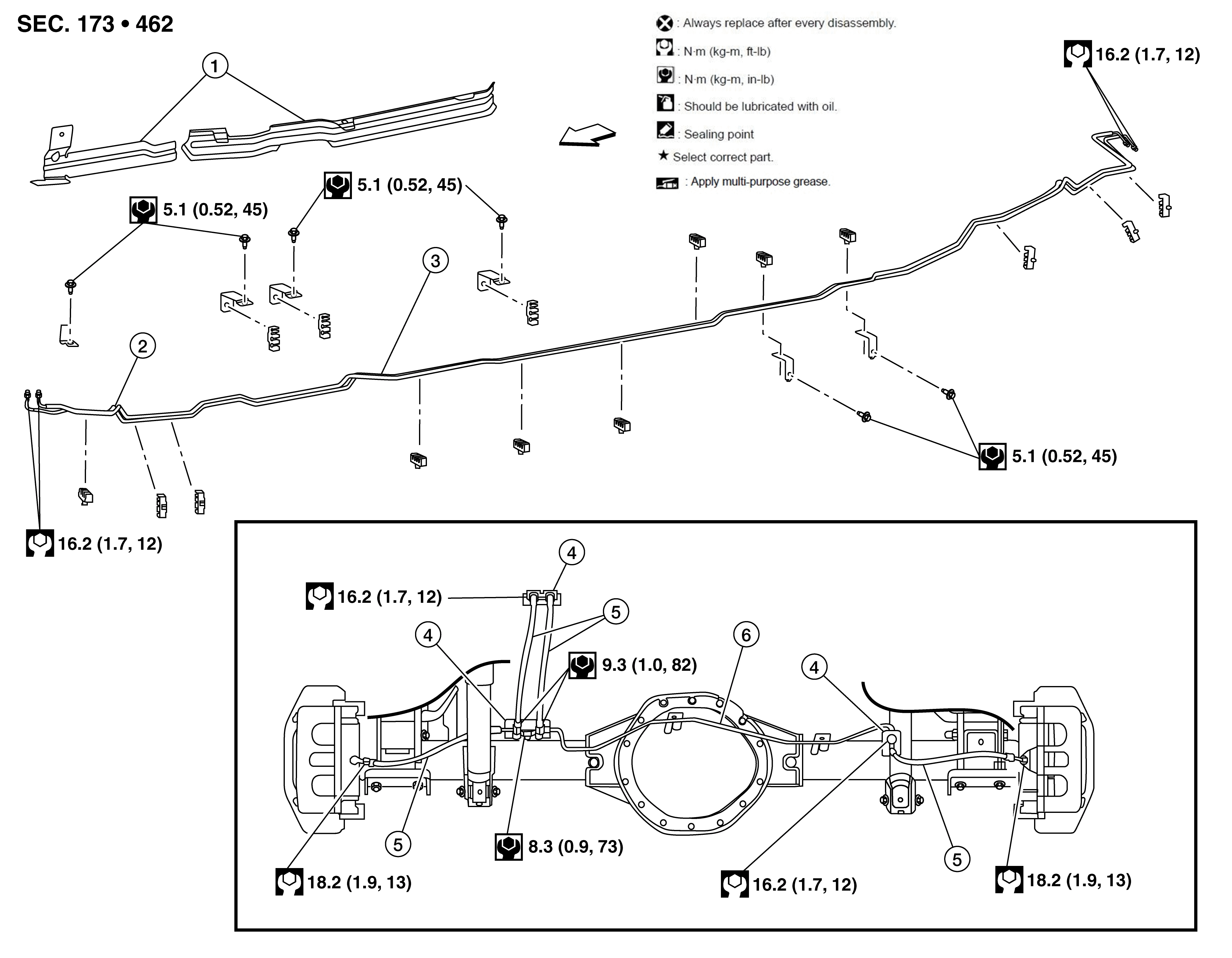

Fig 2: Rear Brake Piping Replacement Components With Torque Specifications (VK56VD XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel protector	2.	Rear brake pipe (RH)	3.	Rear brake pipe (LH)
4.	Lock plate	5.	Rear brake hose	6.	Rear brake pipe
	Front

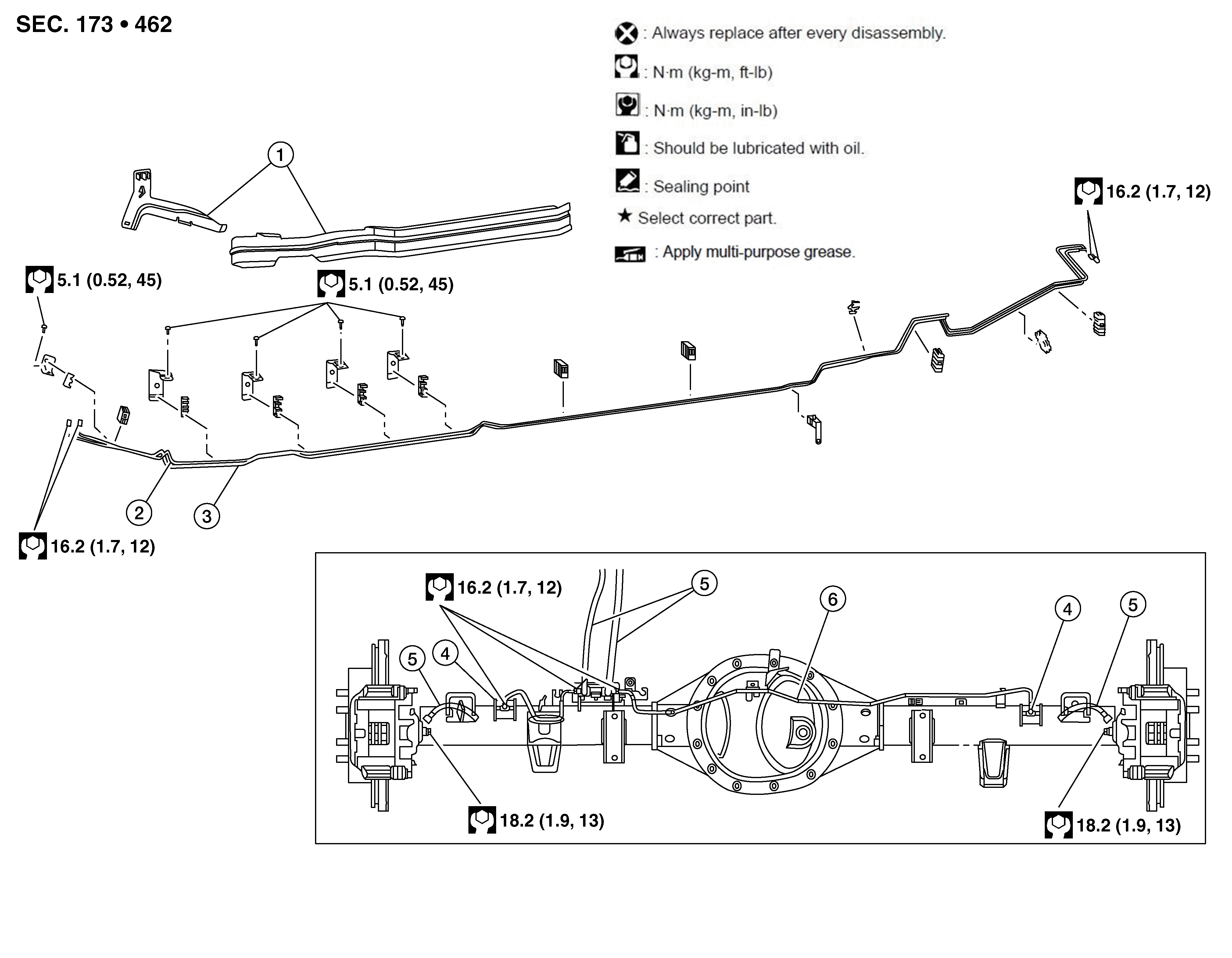

Fig 3: Rear Brake Piping Replacement Components With Torque Specifications (VK56VD Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel protector	2.	Rear brake pipe (RH)	3.	Rear brake pipe (LH)
4.	Lock plate	5.	Rear brake hose	6.	Rear brake pipe
	Front
