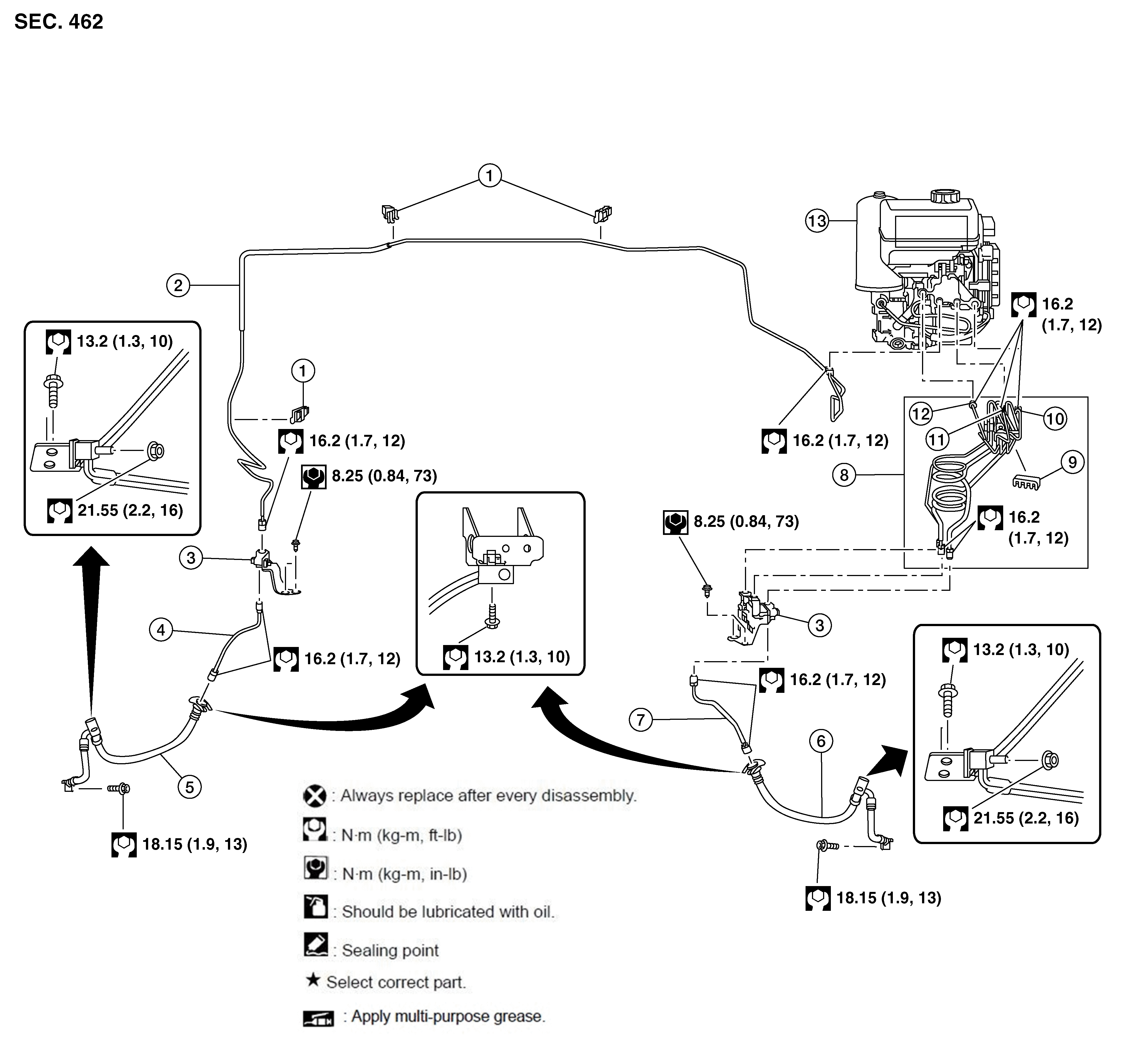

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Clamp |
2. |
Brake tube front RH |
3. |
Brake tube bracket |
|
4. |
Brake tube front RH |
5. |
Front brake hose RH |
6. |
Front brake hose LH |
|
7. |
Brake tube front LH |
8. |
Brake tube assembly |
9. |
Clamp |
|
10. |
Brake tube rear |
11. |
Brake tube front LH |
12. |
Brake rear tube |
|
13. |
Hydraulic booster assembly |
|
Front |
|
1. |
Clamp |
2. |
Brake tube front RH |
3. |
Brake tube bracket |
|
4. |
Brake tube front RH |
5. |
Front brake hose RH |
6. |
Front brake hose LH |
|
7. |
Brake tube front LH |
8. |
Brake tube assembly |
9. |
Clamp |
|
10. |
Brake tube rear |
11. |
Brake tube front LH |
12. |
Brake rear tube |
|
13. |
Hydraulic booster assembly |
|
Front |
