Brake Pedal Height
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

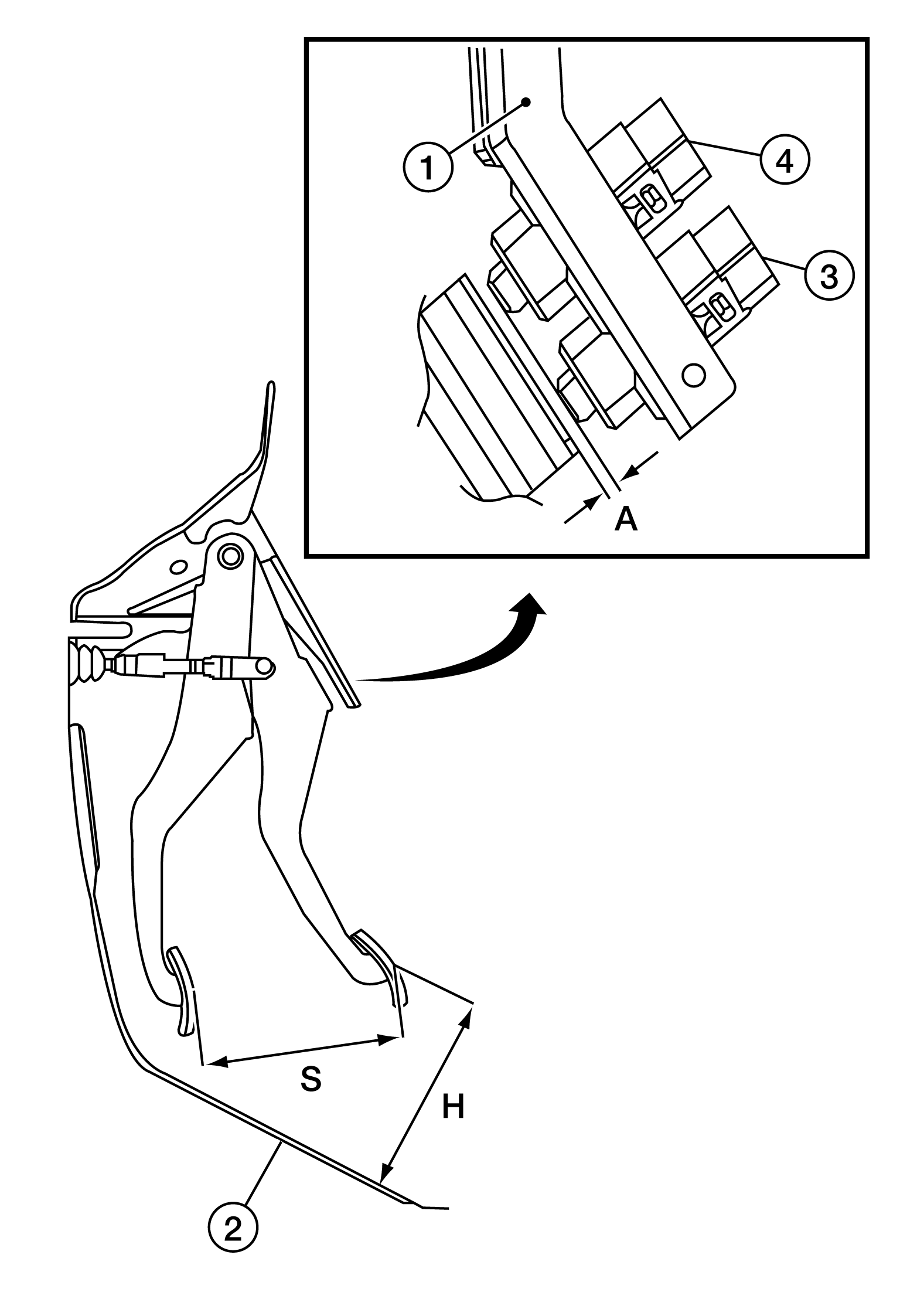

Check the brake pedal height (H) between the dash lower panel (2) and the brake pedal upper surface.
CAUTION:
Check the brake pedal height with the floor trim removed.
|
Brake pedal height (H ) from dash lower panel (2) |
Refer to Brake Pedal . |
|
|
Clearance (A) between brake pedal bracket (1), stop lamp switch (3) and brake pedal position switch (4) contact ends |
Refer to Brake Pedal . |
|
|
Brake pedal full stroke (S) |
Refer to Brake Pedal . |
|
