Stop Lamp Switch And Brake Pedal Position Switch (VK56VD) Or ASCD Cancel Switch (CUMMINS 5.0L)
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove instrument lower panel LH. Refer to Removal and Installation .
- Disconnect the harness connectors from the stop lamp switch and brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L).
- Turn the stop lamp switch and brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L) 45° counterclockwise.

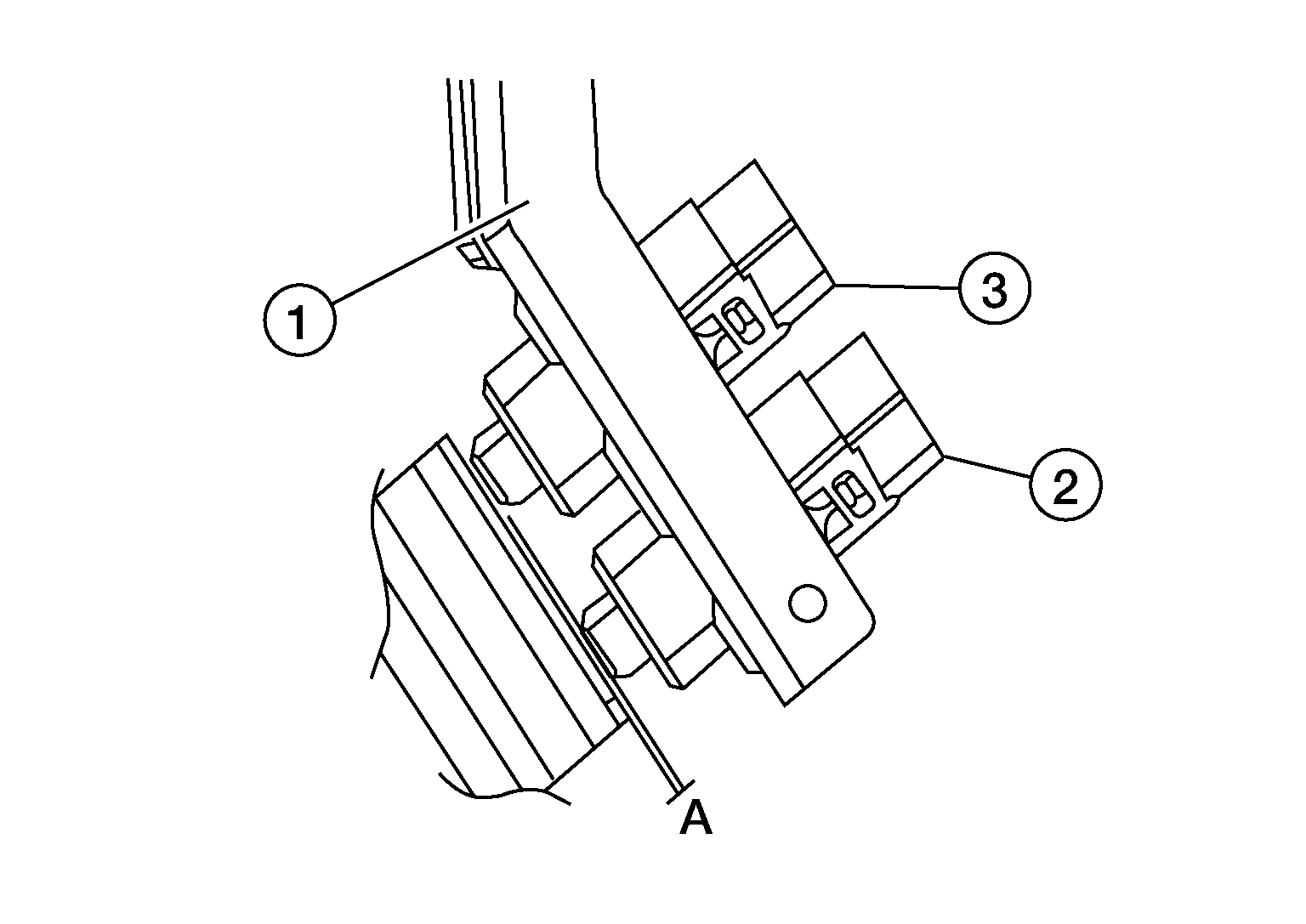

- With threaded ends of stop lamp switch (2) and brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L) (3) contacting pedal bracket (1), turn switches 45° clockwise to lock in place. Check that both stop lamp switch and brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L) contact ends to brake pedal bracket clearance (A) are within specification.CAUTION:
- Make sure that the clearance between the brake pedal bracket, stop lamp switch and the brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L) contact ends are within specification.
- The stop lamp must turn off when the brake pedal is released.
Clearance (A)
: Refer to Brake Pedal .
- Connect harness connectors to stop lamp switch and brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L).
- Install instrument lower panel LH. Refer to Removal and Installation .
