Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

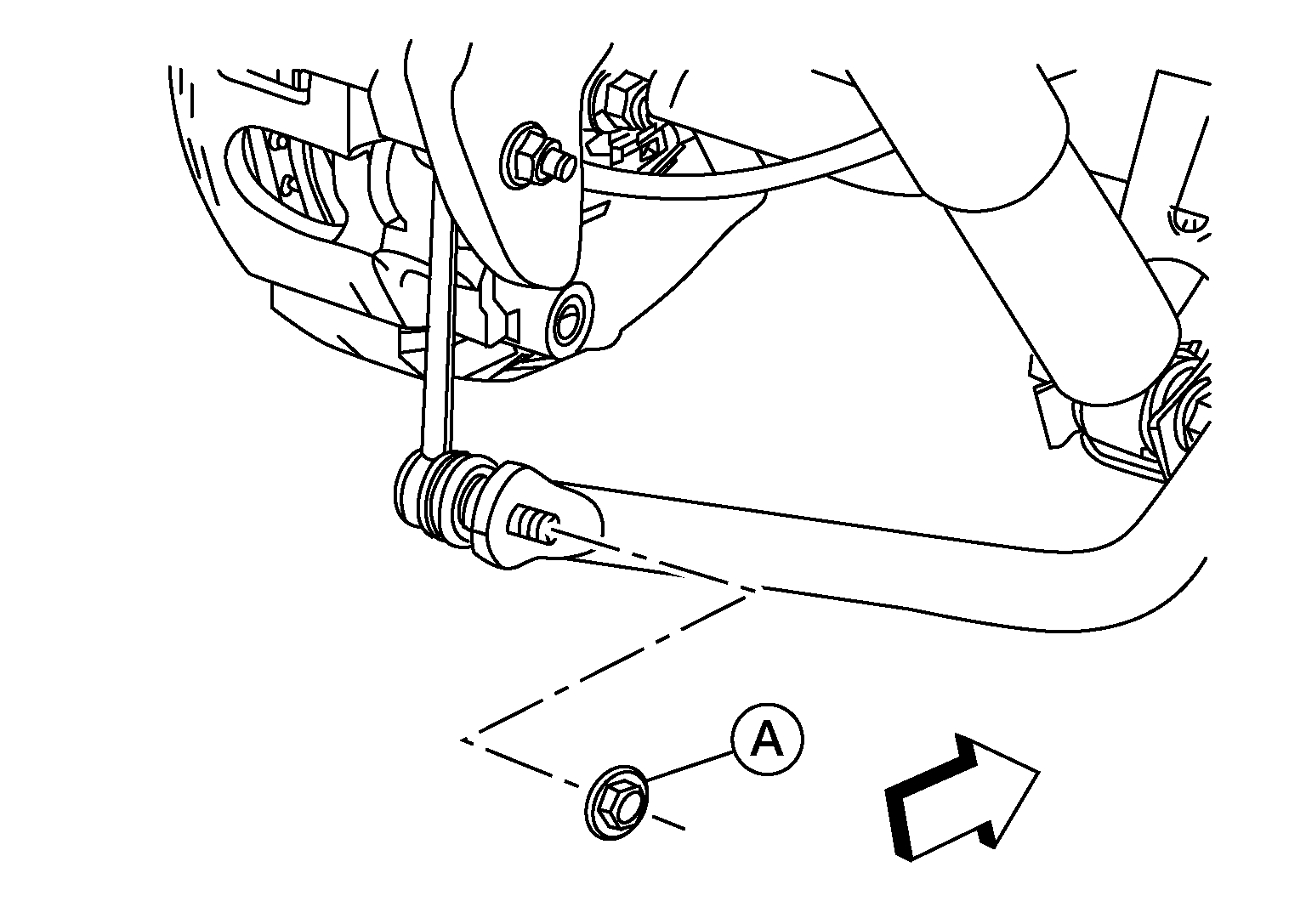

  1. Remove the (RH/LH) rear stabilizer connecting rod lower nuts (A) from the rear stabilizer.
    GNSAWEIA0489Z-489Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

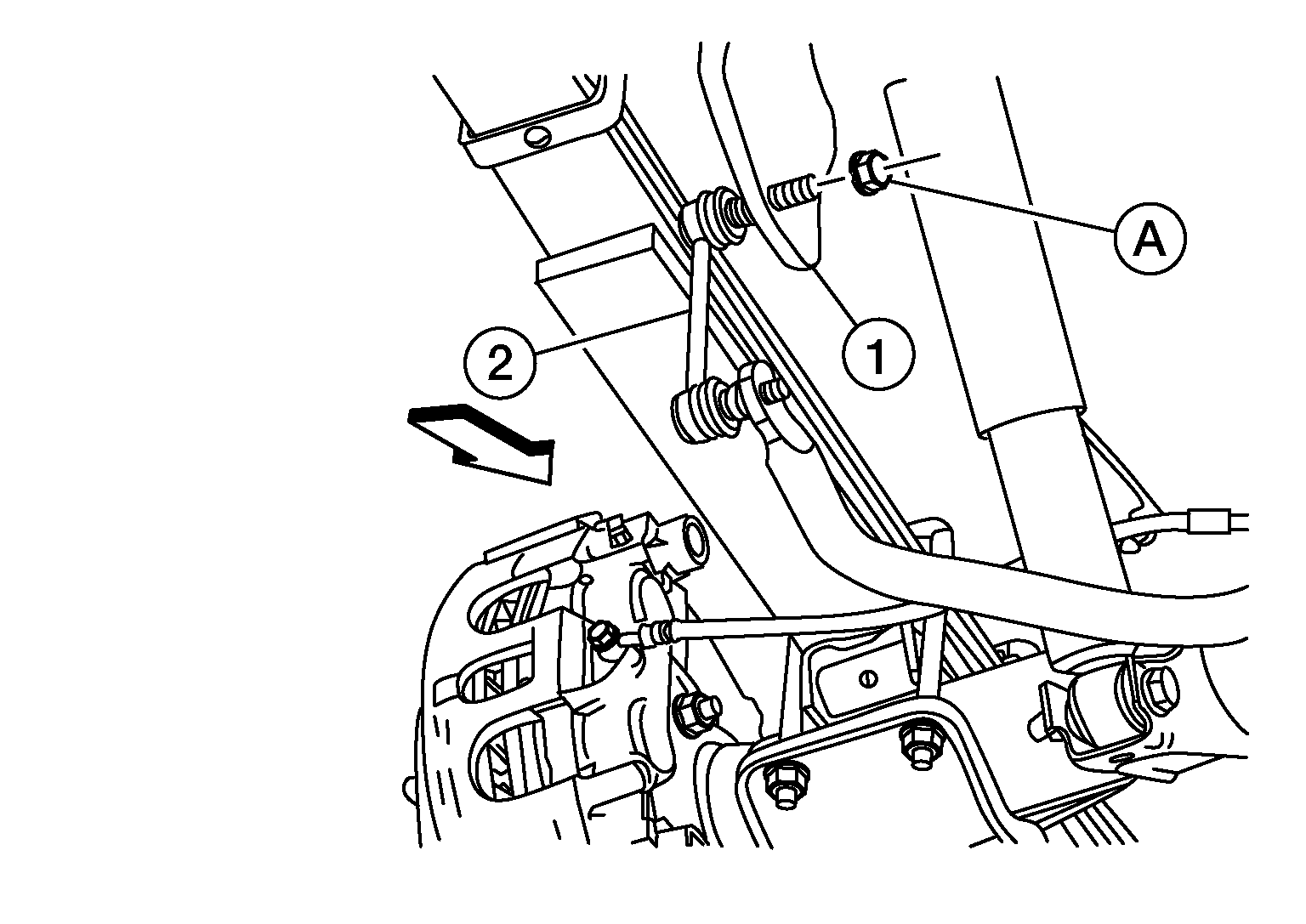

  2. Remove the (RH/LH) rear stabilizer connecting rod upper nuts (A) from the rear stabilizer bracket (1).
    GNSAWEIA0490Z-490Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  3. Remove the (RH/LH) rear stabilizer connecting rods (2).

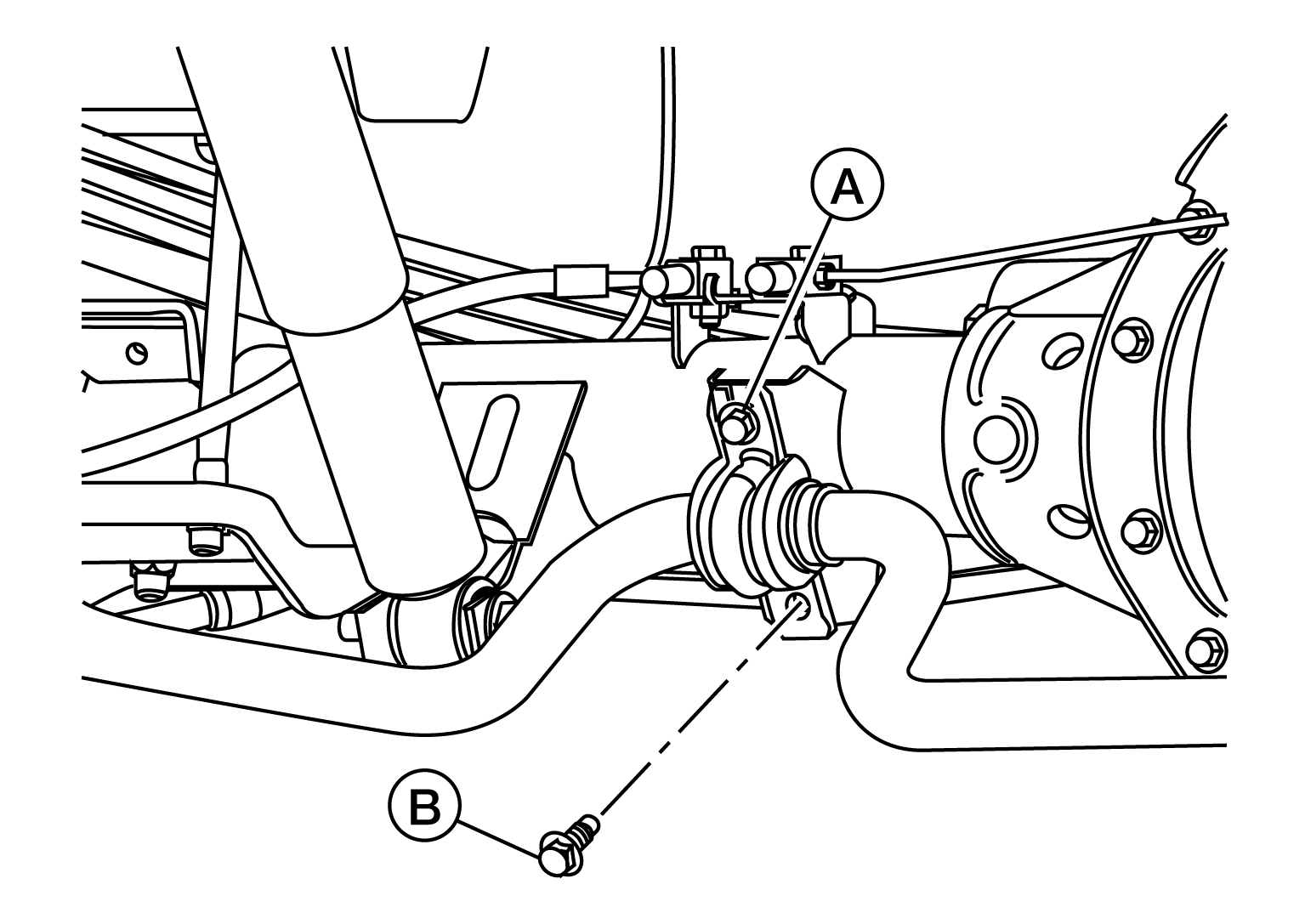

  4. Loosen the (RH/LH) rear stabilizer upper clamp bolts (A) and remove the (RH/LH) rear stabilizer lower clamp bolts (B).
    GNSALEIA0107Z-107Courtesy of NISSAN NORTH AMERICA, INC.

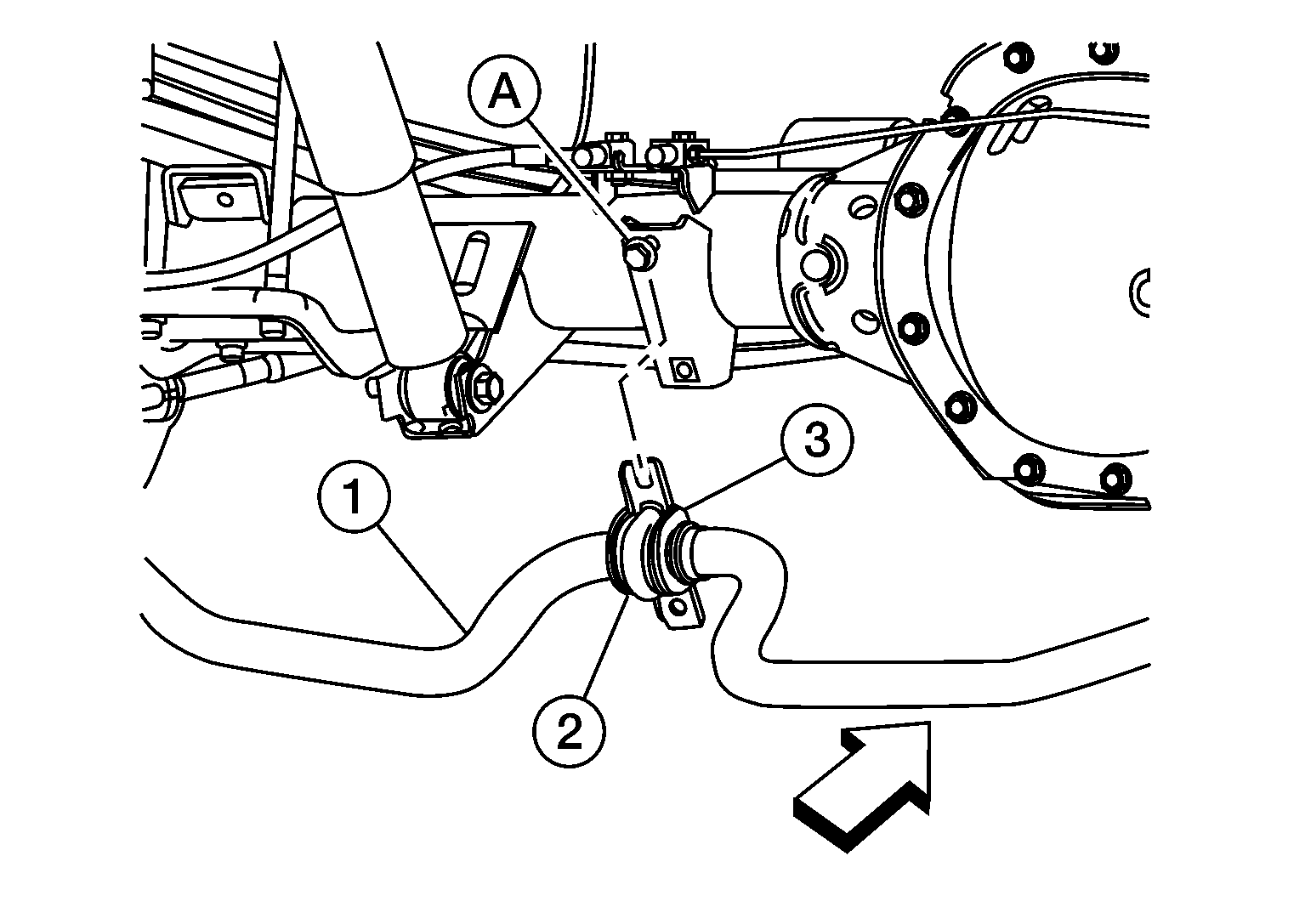

  5. Lower the rear stabilizer (1), the rear stabilizer clamps (2) and the rear stabilizer bushings (3) as an assembly from the rear stabilizer upper clamp bolts (A) to remove it from the vehicle.
    GNSALEIA0108Z-108Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  6. Separate the rear stabilizer clamps (1) and the rear stabilizer bushings (2) from the rear stabilizer (3).
    GNSDB116126Courtesy of NISSAN NORTH AMERICA, INC.

    Crimp ring (A)
