Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

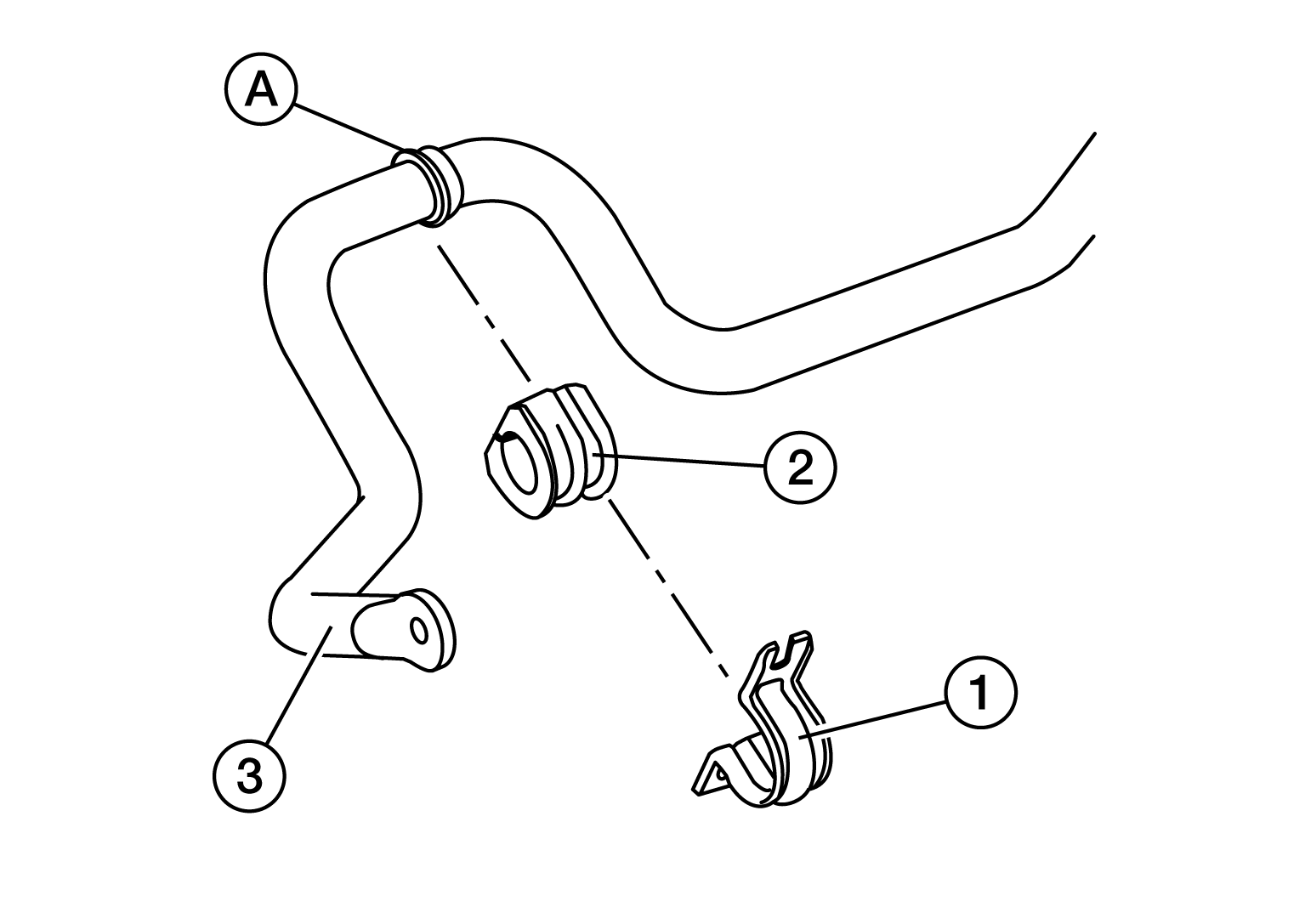

During installation, position the rear stabilizer clamp (1) and rear stabilizer bushing (2) on the outside of the crimp ring (A) on the rear stabilizer (3).

Courtesy of NISSAN NORTH AMERICA, INC.
Install the rear stabilizer with the rear stabilizer bar connecting rod ball joint sockets properly aligned.

Courtesy of NISSAN NORTH AMERICA, INC.
