Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

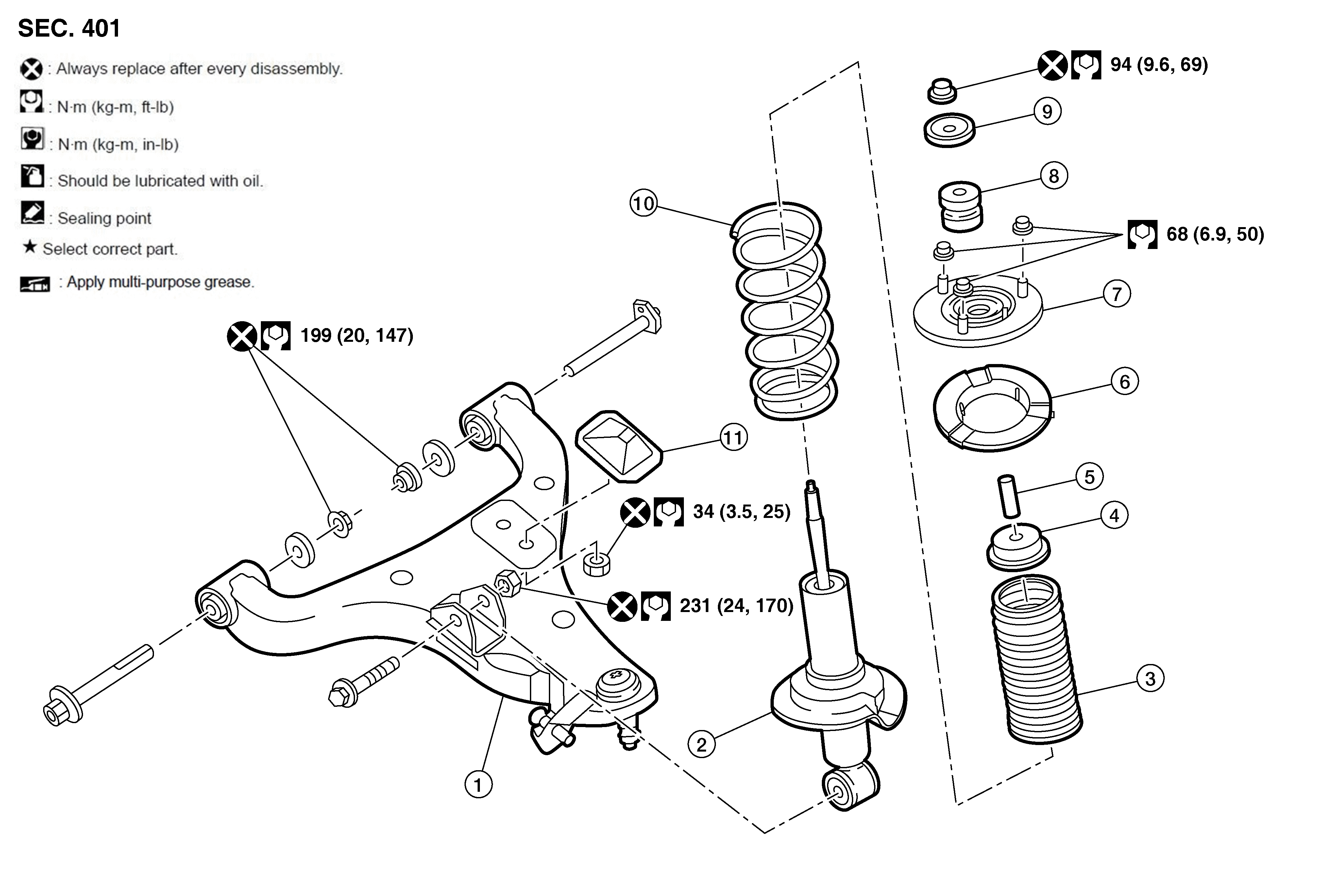

Fig 1: Coil Spring And Shock Absorber Unit Disassembly And Assembly With Torque Specifications (XD models)
|
1. |
Lower link |
2. |
Shock absorber |
3. |
Dust cover |
|
4. |
Bound bumper |
5. |
Distance tube |
6. |
Rubber seat |
|
7. |
Front shock absorber bracket |
8. |
Rubber bushing |
9. |
Washer |
|
10. |
Front coil spring |
11. |
Bumper |
Fig 2: Coil Spring And Shock Absorber Unit Disassembly And Assembly With Torque Specifications (Non-XD models)
|
1. |
Lower link |
2. |
Shock absorber |
3. |
Dust cover |
|
4. |
Bound bumper |
5. |
Distance tube |
6. |
Rubber seat |
|
7. |
Front shock absorber bracket |
8. |
Rubber bushing |
9. |
Washer |
|
10. |
Front coil spring |
11. |
Bumper |
