Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

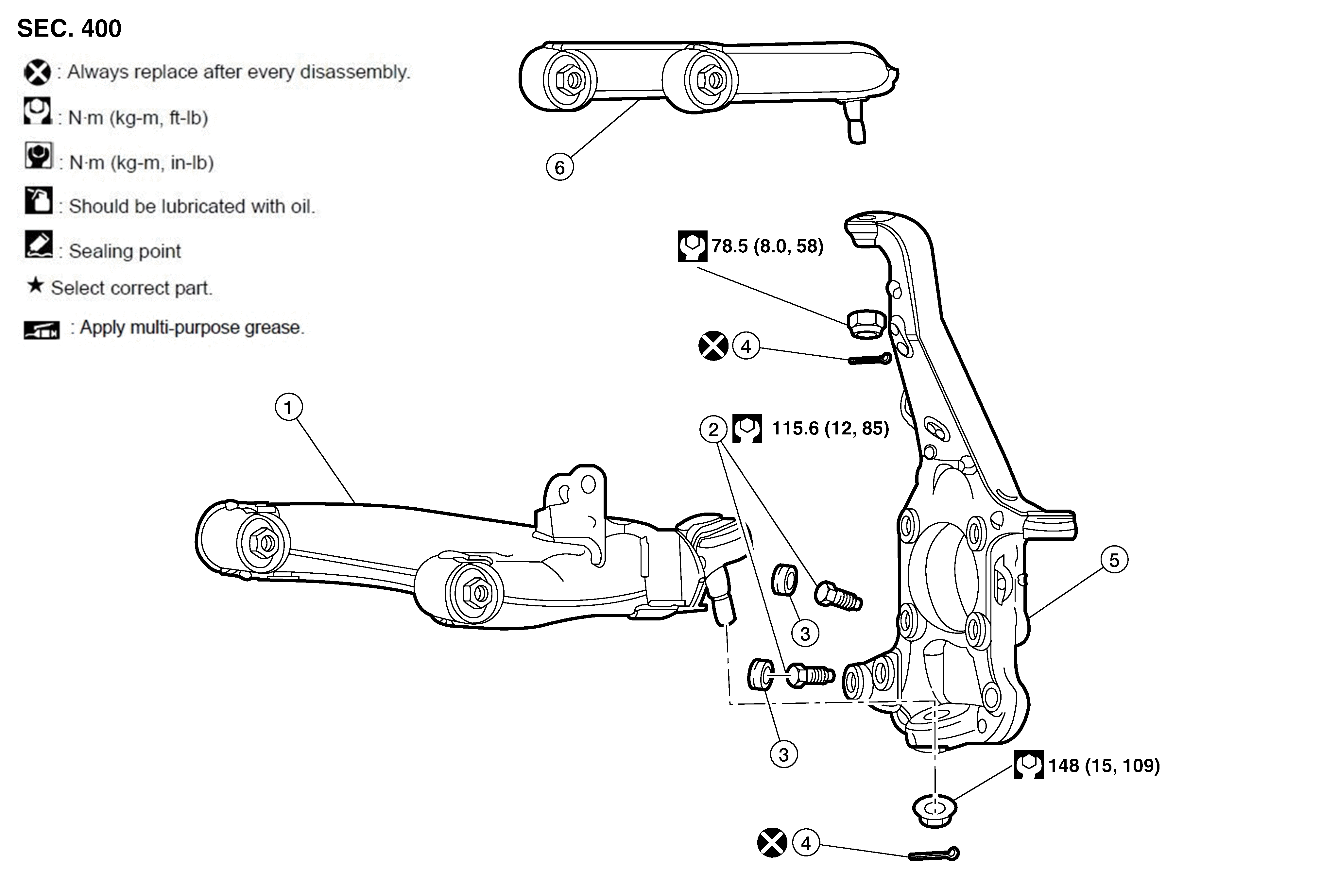

Fig 1: Steering Knuckle Replacement Components With Torque Specifications (XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lower link	2.	Steering stopper	3.	Steering stopper cap
4.	Cotter pin	5.	Steering knuckle	6.	Upper link

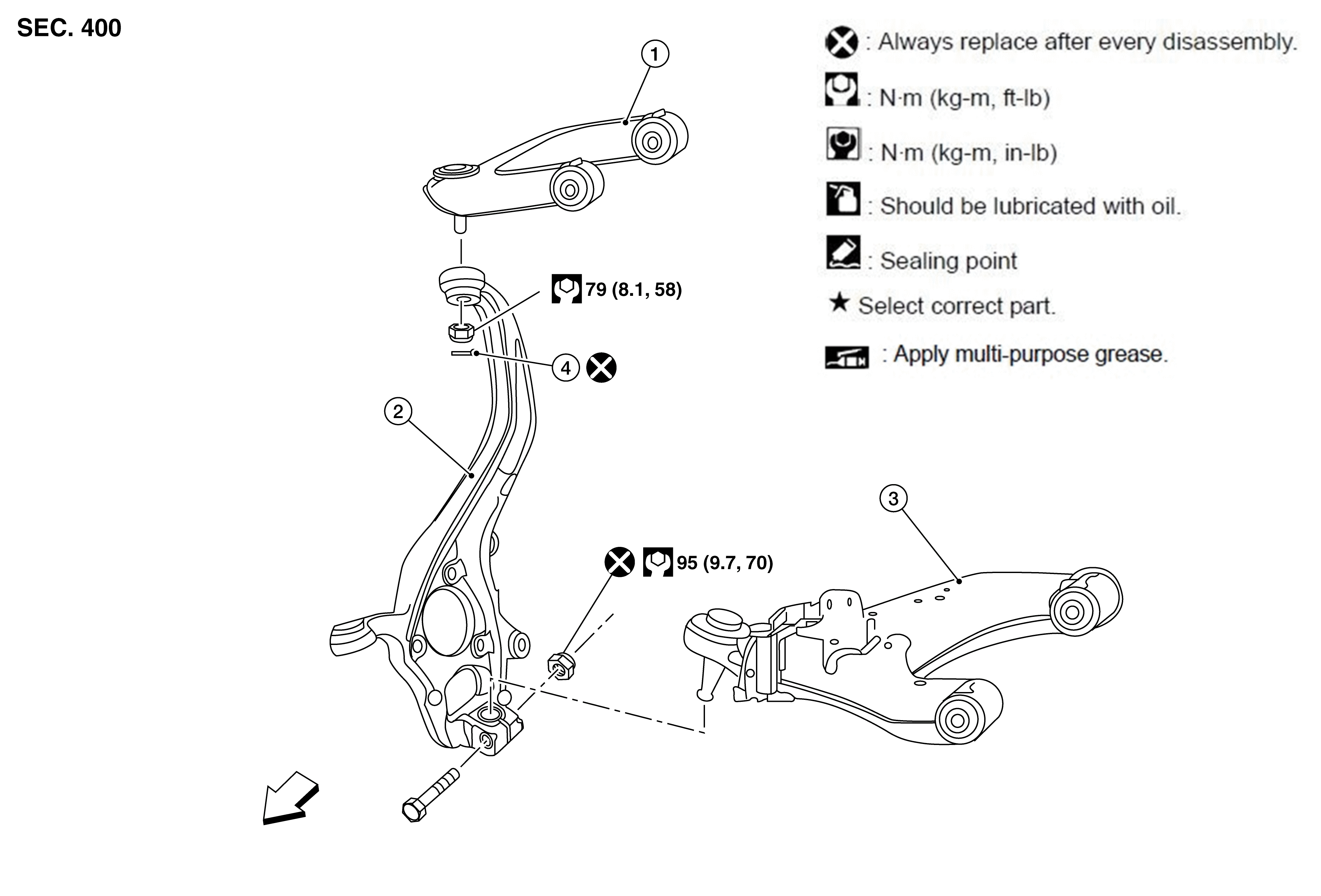

Fig 2: Steering Knuckle Replacement Components With Torque Specifications (Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Steering knuckle	3.	Lower link
4.	Cotter pin		Front
