Removal and Installation - XD Models: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover. Refer to Removal and Installation .

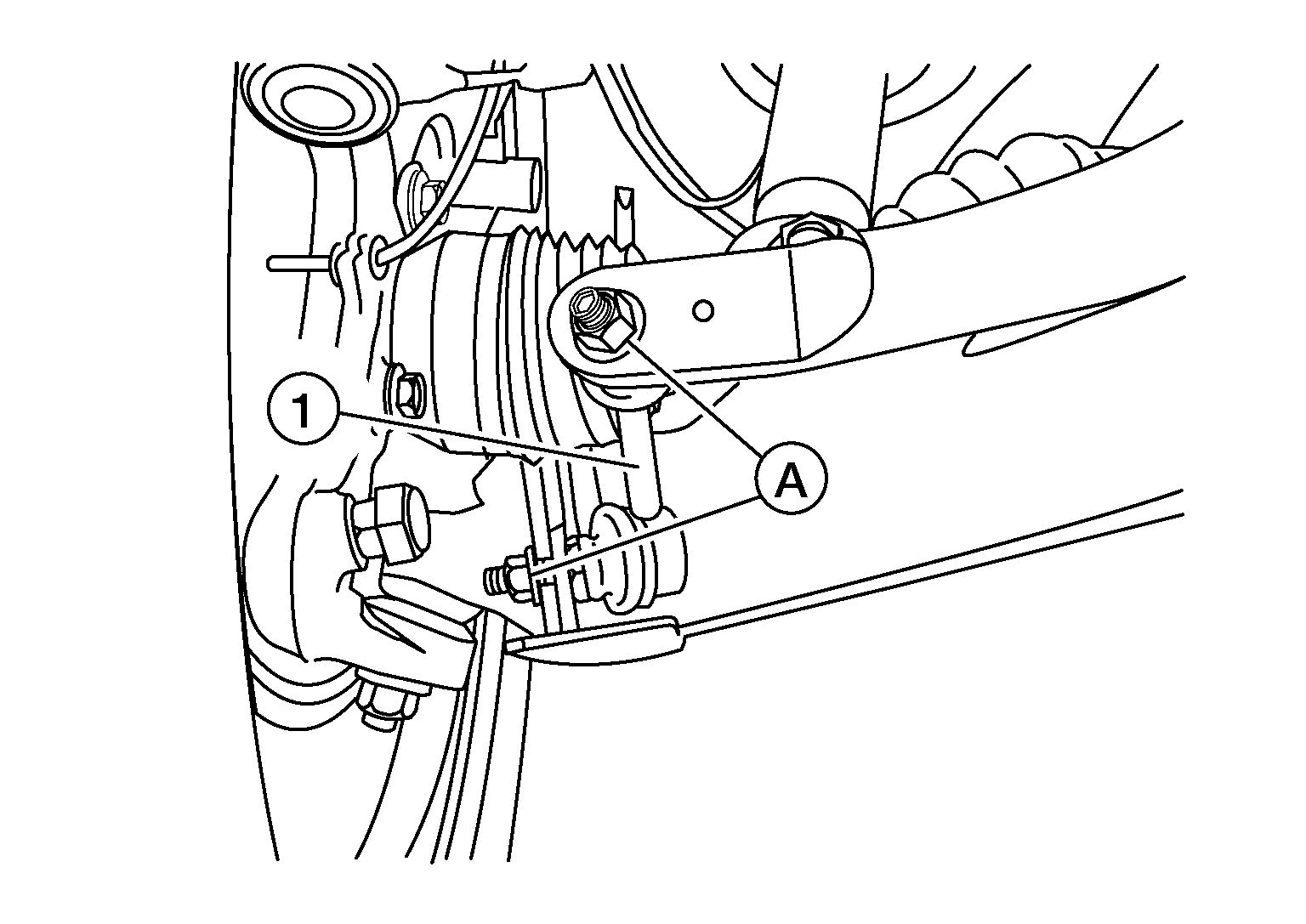

  2. Remove the nuts (A) from the stabilizer bar connecting rod [1 (RH/LH)].
    CAUTION: Do not reuse connecting rod nuts.
    GNSALEIA0288Z-288Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the (RH/LH) stabilizer bar connecting rod.

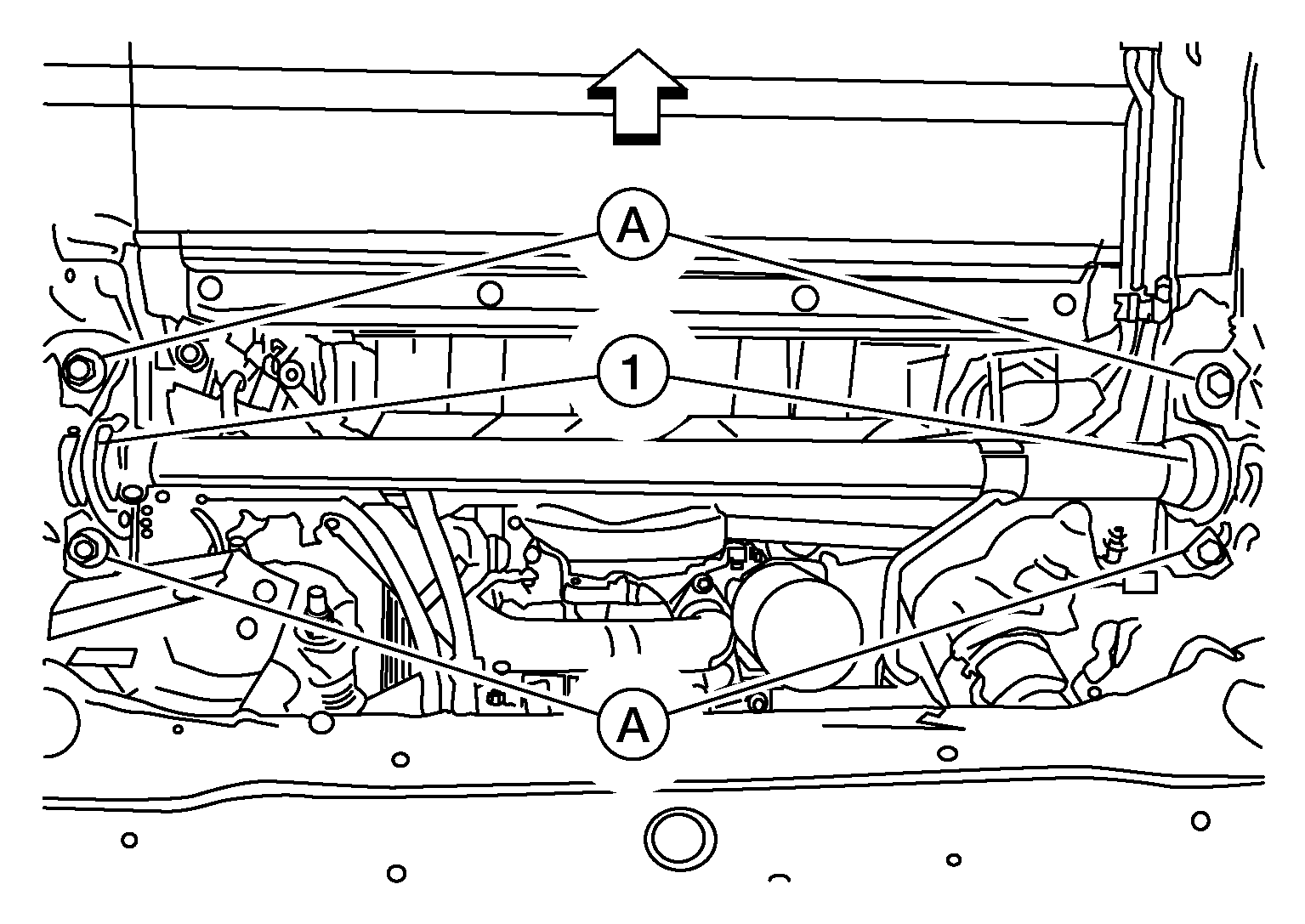

  4. Remove the bolts (A) from the stabilizer bar clamp (1).
    GNSALEIA0289Z-289Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  5. Remove the (RH/LH) stabilizer bar clamp.
  6. Remove the stabilizer bar.
  7. Remove the stabilizer bar bushings from the stabilizer bar.
