Removal and Installation - Non-XD Models: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front under cover. Refer to Removal and Installation .

Remove the nuts from the stabilizer bar connecting rod.

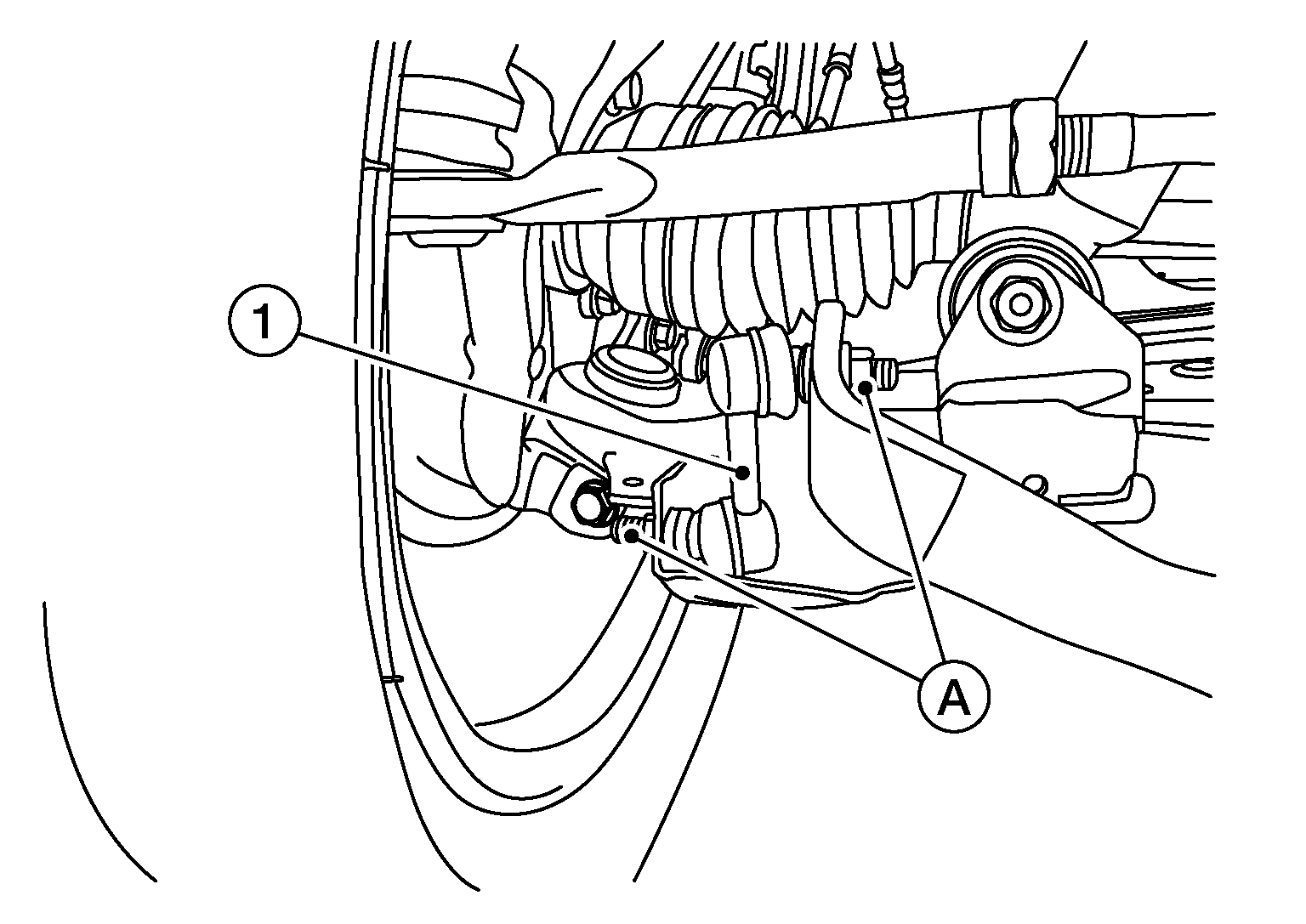

For 4WD remove the nuts (A) from the stabilizer bar connecting rod (1) (RH/LH).

CAUTION: Do not reuse connecting rod nuts.

Courtesy of NISSAN NORTH AMERICA, INC.

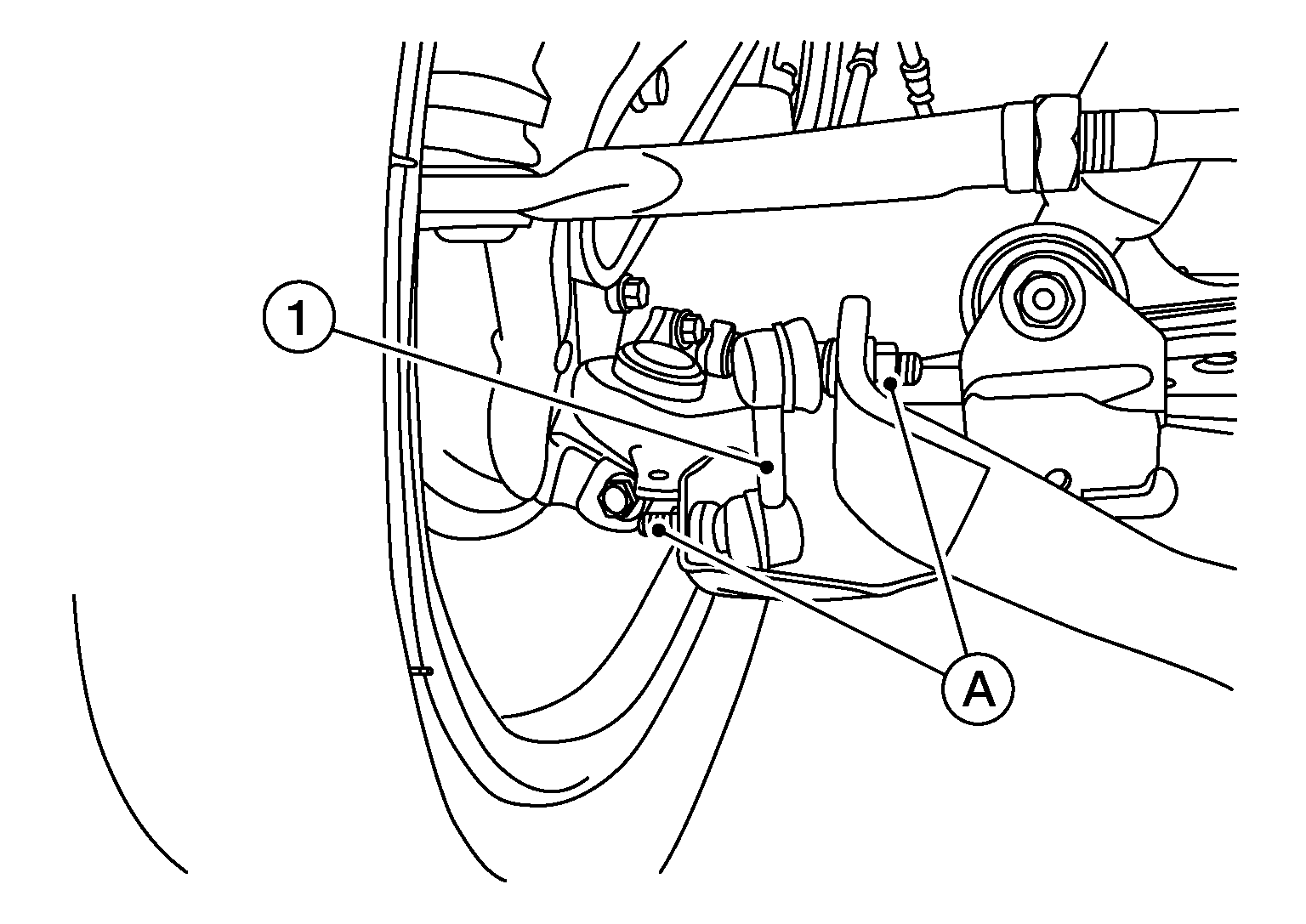

For 2WD remove the nuts (A) from the stabilizer bar connecting rod (1) (RH/LH).

CAUTION: Do not reuse connecting rod nuts.

Courtesy of NISSAN NORTH AMERICA, INC.

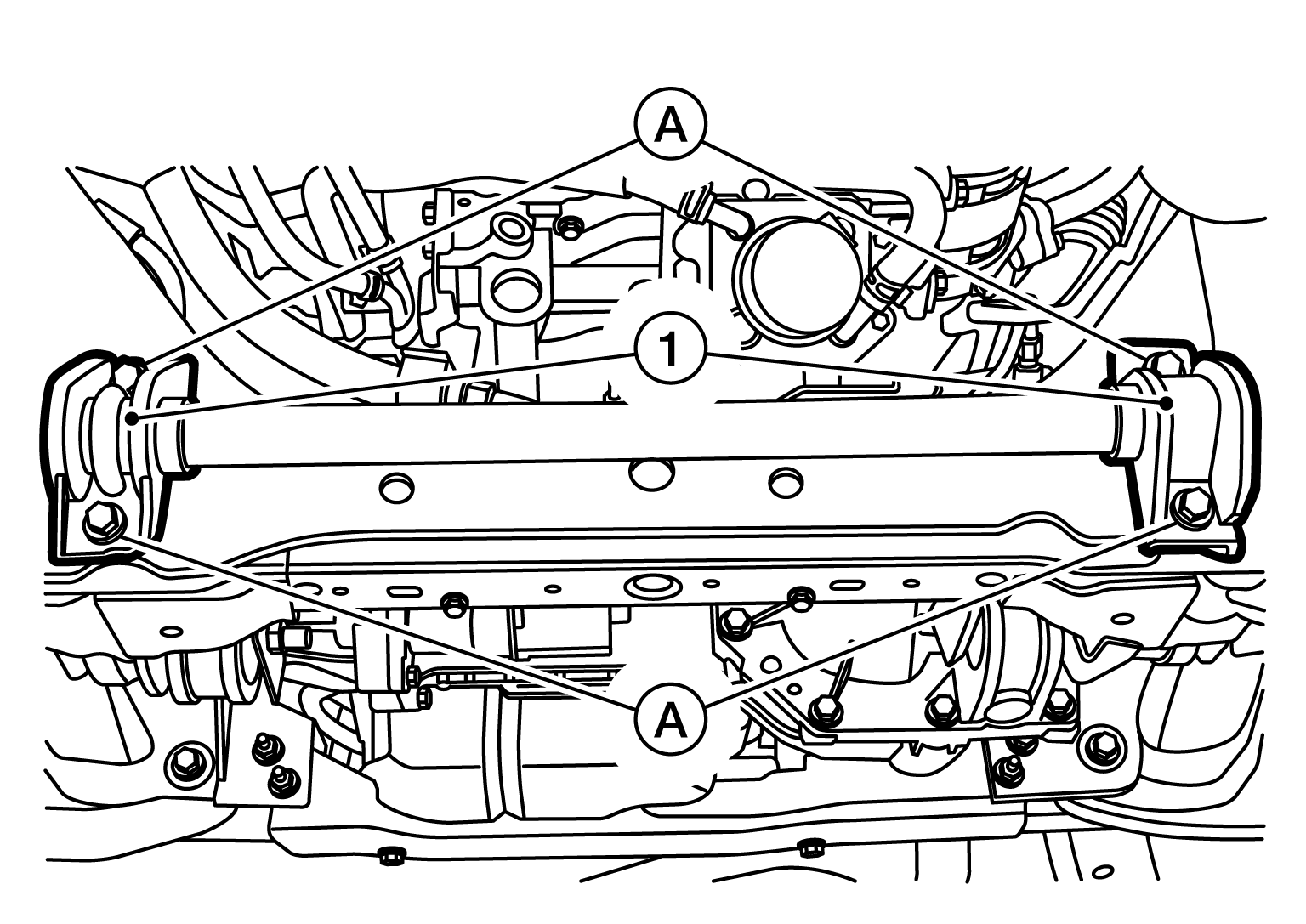

For 2WD remove bolts (A) and remove front suspension member reinforcement [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

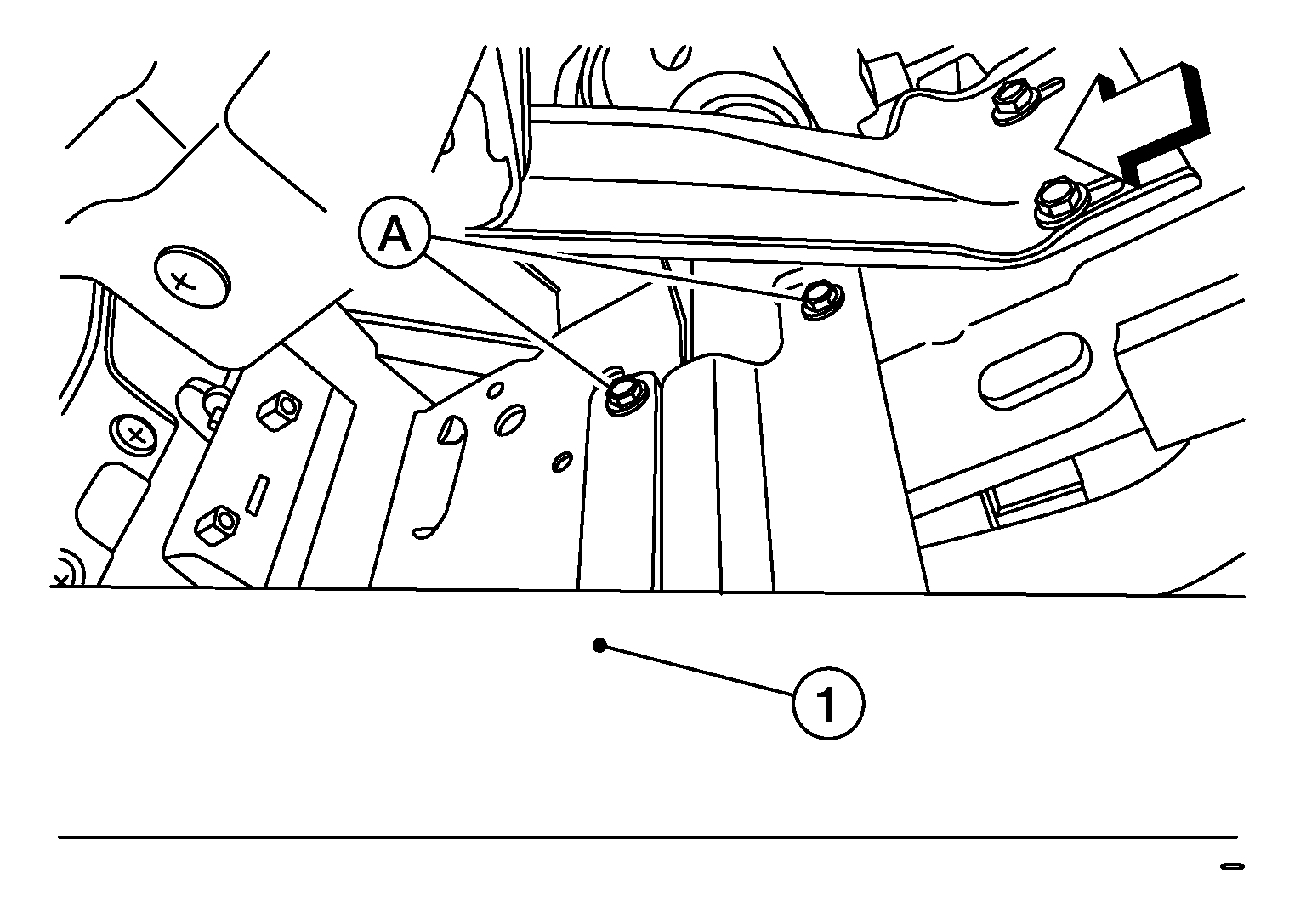

For 2WD remove bolts (A) and remove push arm [LH (1)].

Bolts A

: 35 Nm (3.6 kg-m, 26 ft.-lb)

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

Remove the bolts from the stabilizer bar clamp.

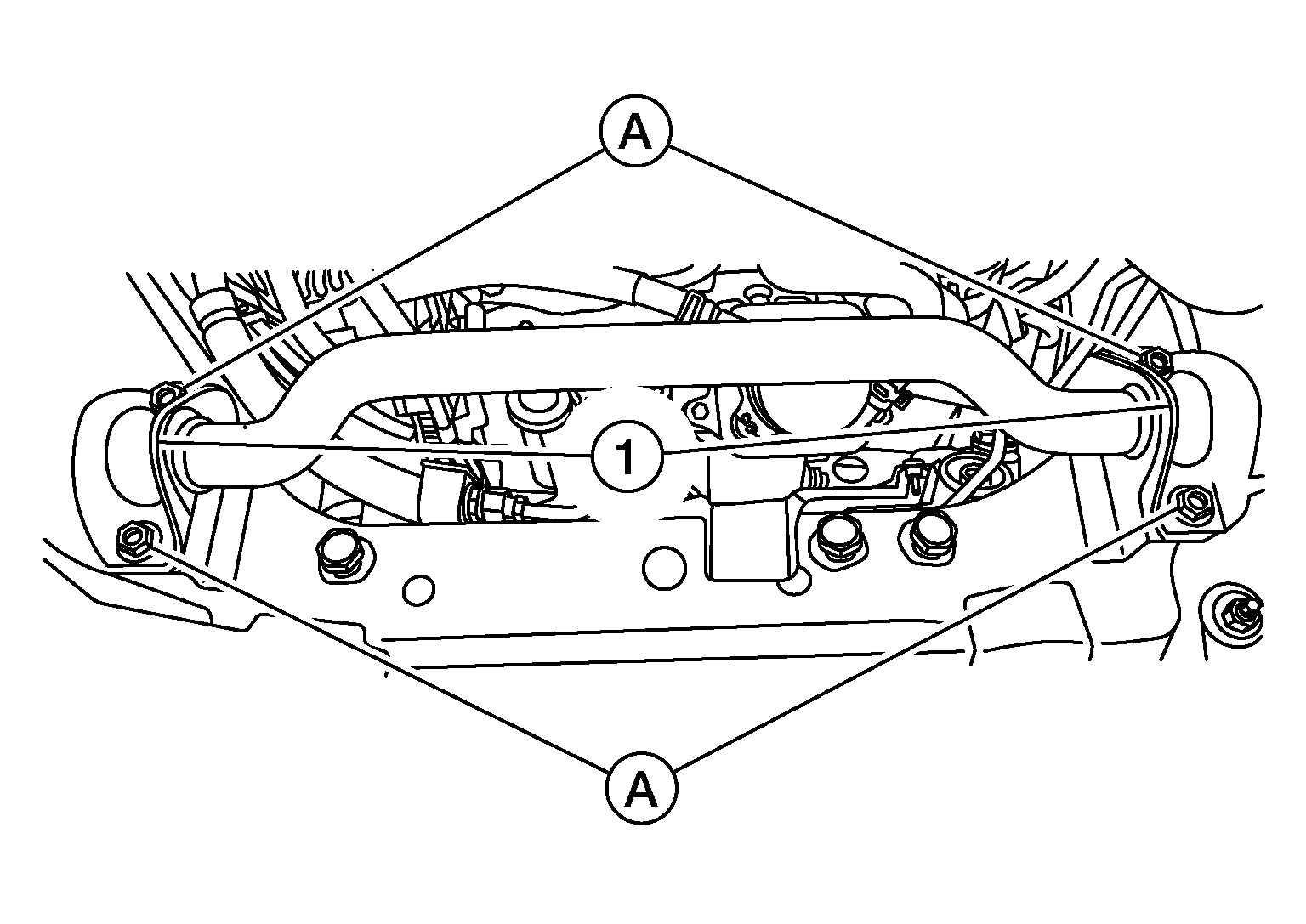

For 4WD remove bolts (A) from the stabilizer bar clamp (1).

CAUTION: Do not reuse connecting rod nuts.

Courtesy of NISSAN NORTH AMERICA, INC.

For 2WD remove bolts (A) from the stabilizer bar clamp (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Remove the stabilizer bar clamp (RH/LH).
Remove the stabilizer bar.
Remove the stabilizer bar bushings from the stabilizer bar.
