Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

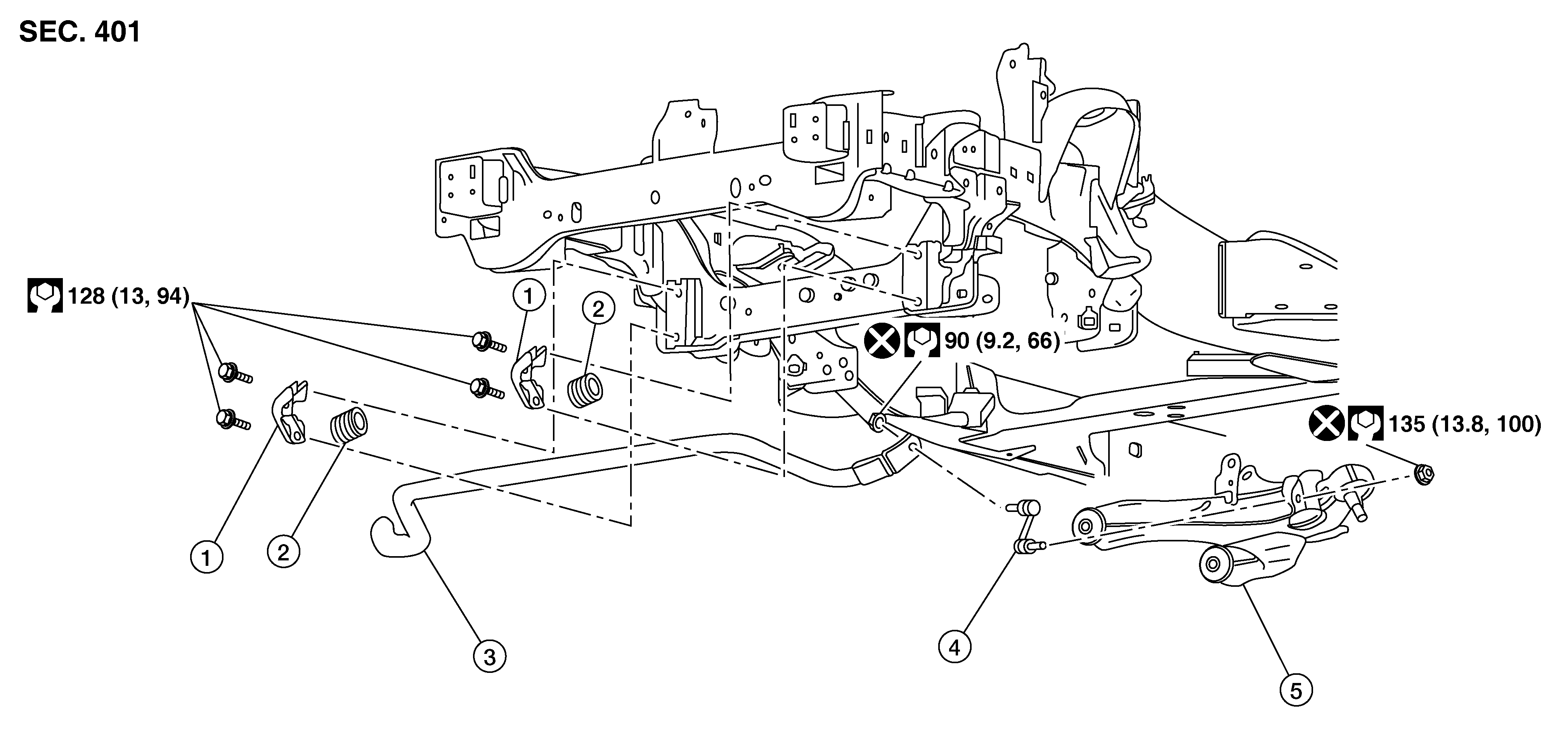

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications (XD models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Stabilizer bar bushing	3.	Stabilizer bar clamp
4.	Stabilizer bar connecting rod	5.	Lower link

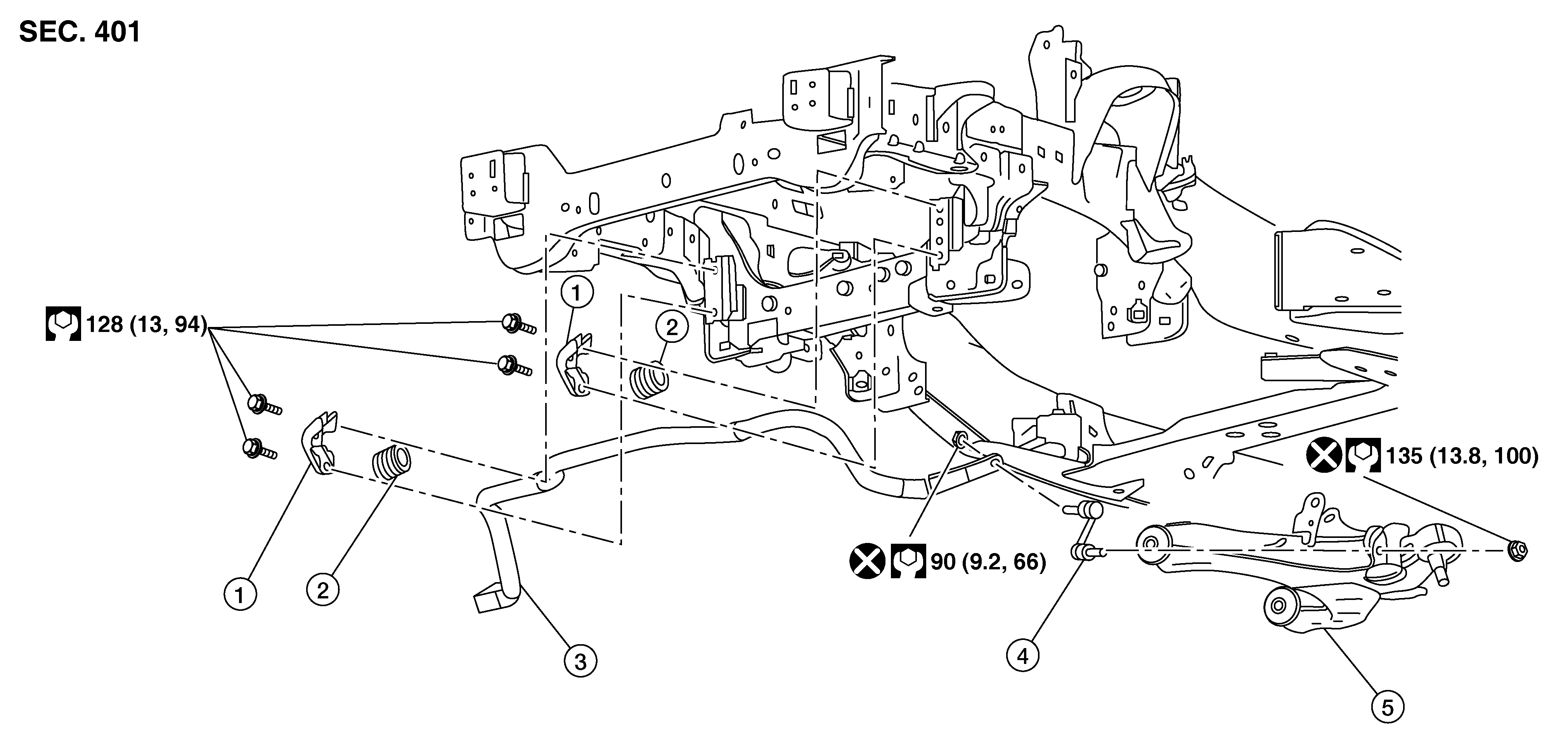

Fig 2: Stabilizer Bar Replacement Components With Torque Specifications (Non - XD Models 4WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar clamp	2.	Stabilizer bar bushing	3.	Stabilizer bar
4.	Stabilizer bar connecting rod	5.	Lower link

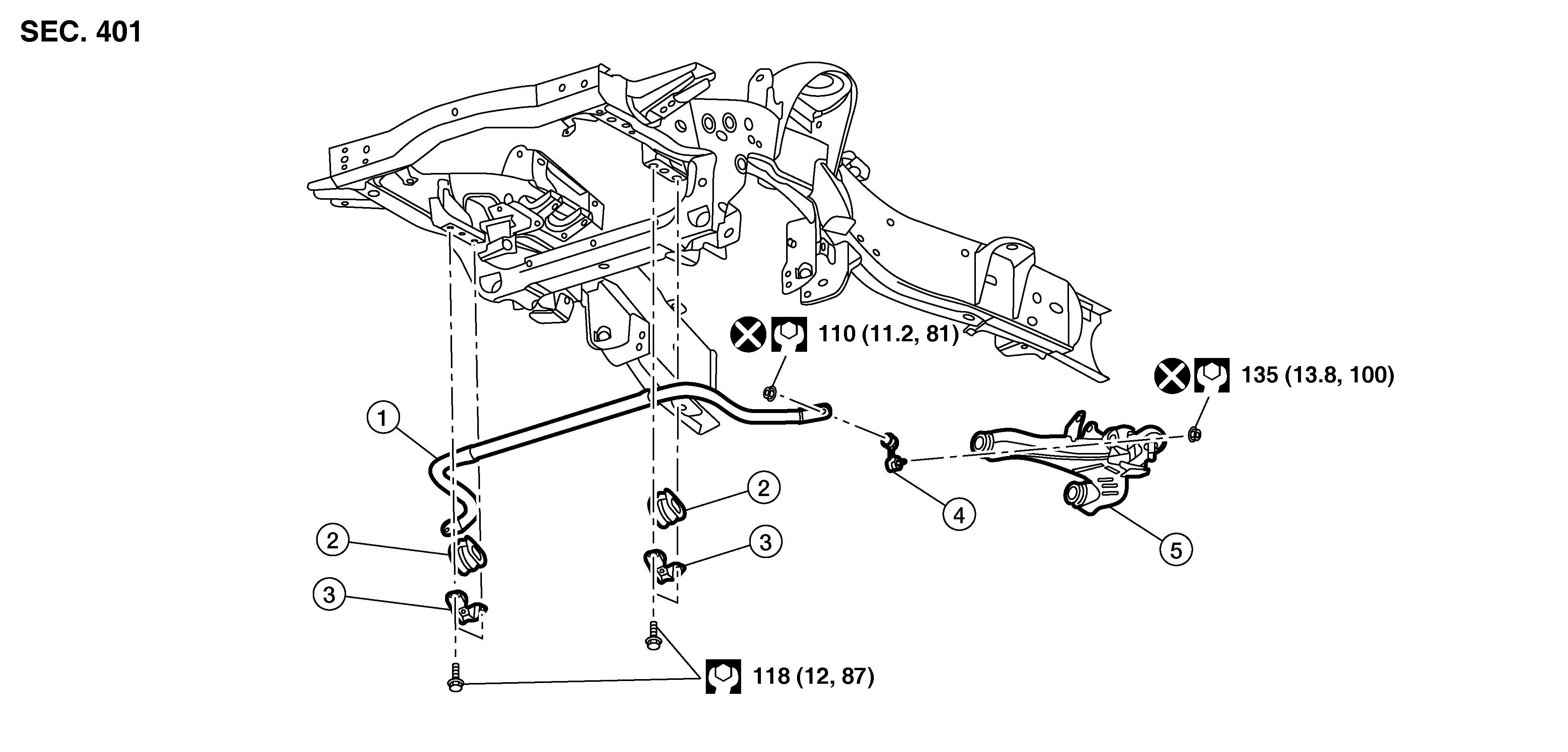

Fig 3: Stabilizer Bar Replacement Components With Torque Specifications (Non - XD models 2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar clamp	2.	Stabilizer bar bushing	3.	Stabilizer bar
4.	Stabilizer bar connecting rod	5.	Lower link
