Removal and Installation - 2WD: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool. Refer to Removal and Installation .
  2. Support the lower link using a suitable jack.
    WARNING: Place a suitable jack under the lower link.
    CAUTION: Do not damage the lower link with the suitable jack.
  3. Remove the front disc brake rotor. Refer to Removal and Installation .
  4. Remove the lower shock absorber bolt. Refer to Exploded View .
  5. Remove the stabilizer bar connecting rod lower nut.
  6. Separate the stabilizer bar connecting rod from the lower link.
  7. Separate the lower ball joint from the steering knuckle using the following steps:

    XD Models

    1. Remove the cotter pin (A).

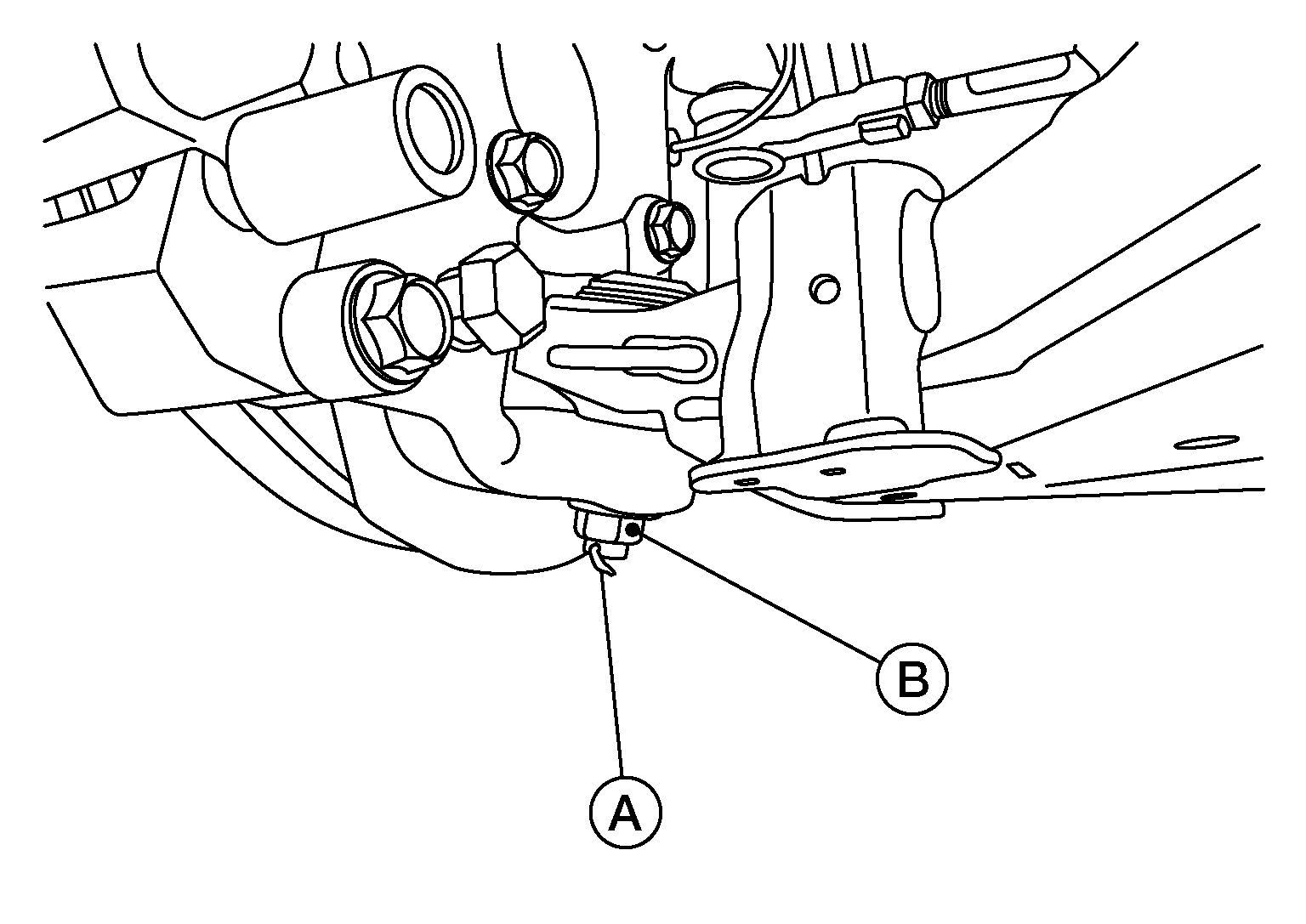

      GNSALEIA0311Z-311Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse the cotter pin.
    2. Remove nut (B) from the lower link ball joint.
    3. Separate the lower link ball joint from the steering knuckle using suitable tool.

    Non-XD Models

    1. Remove the steering knuckle lower pinch nut (B) and bolt (A).

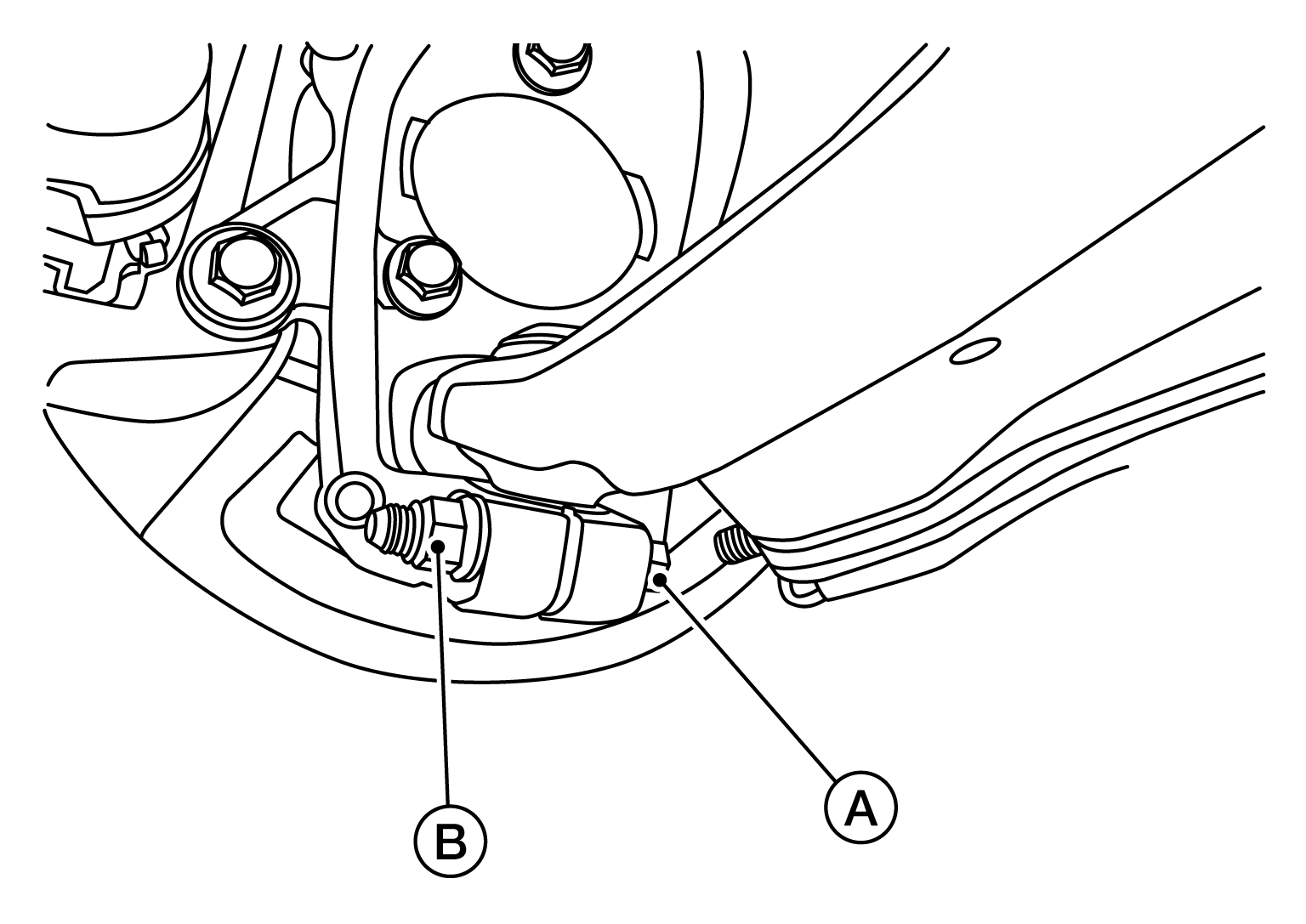

      GNSALEIA0312Z-312Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse the lower pinch bolt nut.
    2. Separate the lower link ball joint from the steering knuckle using suitable tool.
  8. Remove the lower link nuts and bolts and remove the lower link.
