Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

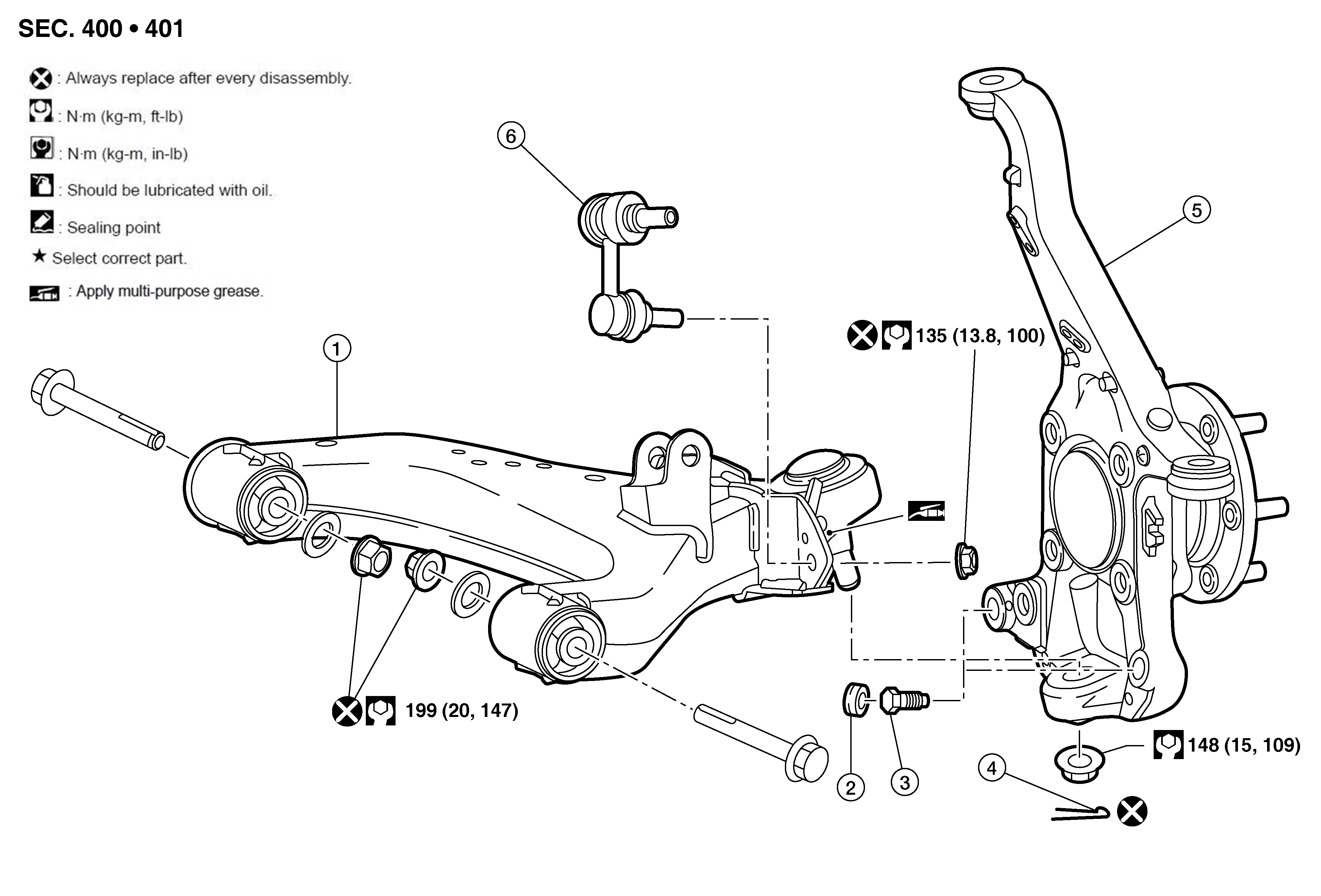

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Lower link
|
2.
|
Steering stopper cap
|
3.
|
Steering stopper
|
|
4.
|
Cotter pin
|
5.
|
Steering knuckle
|
6.
|
Stabilizer bar connecting rod
|

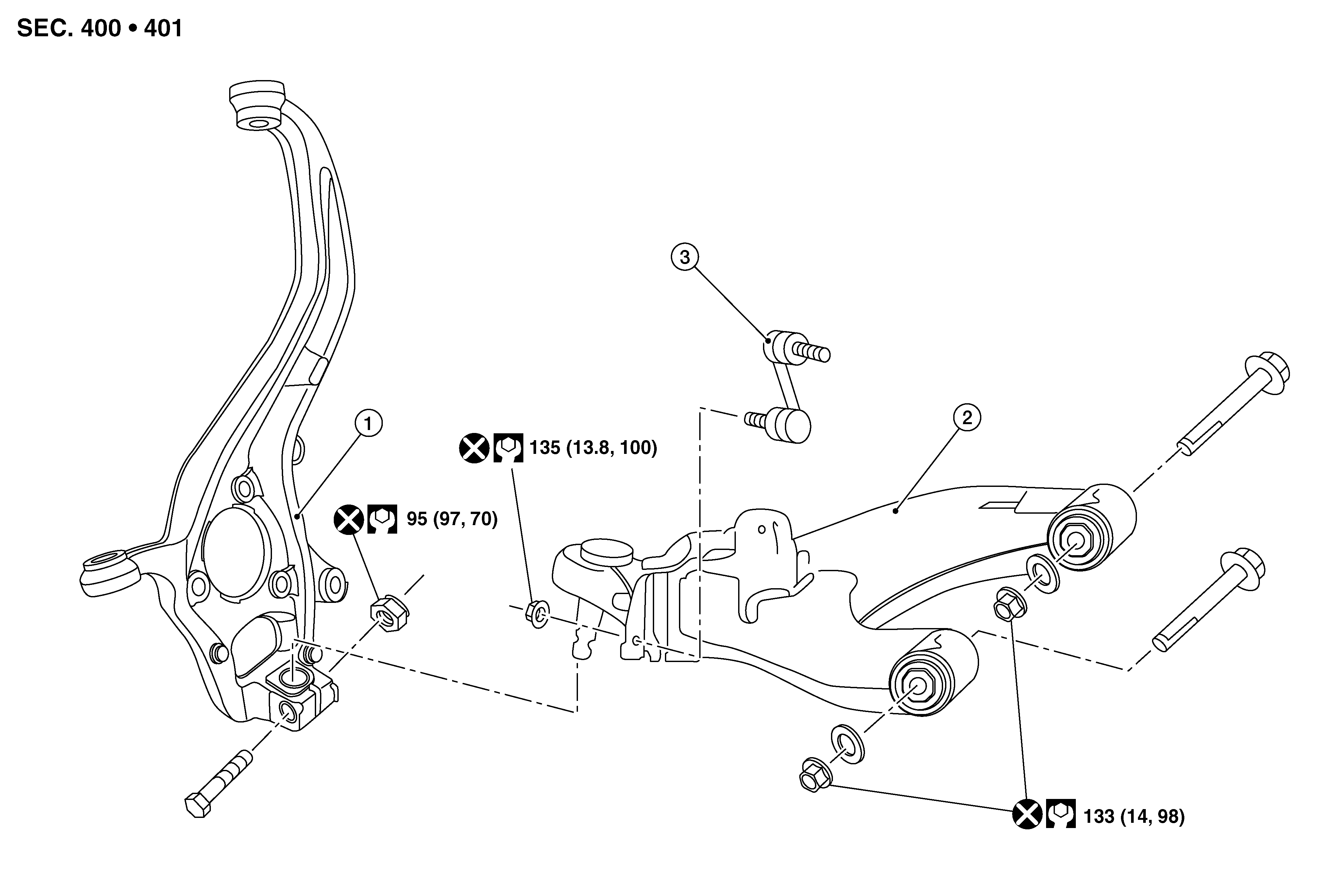

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Steering knuckle
|
2.
|
Lower link
|
3.
|
Stabilizer bar connecting rod
|
