Removal and Installation - 4WD: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

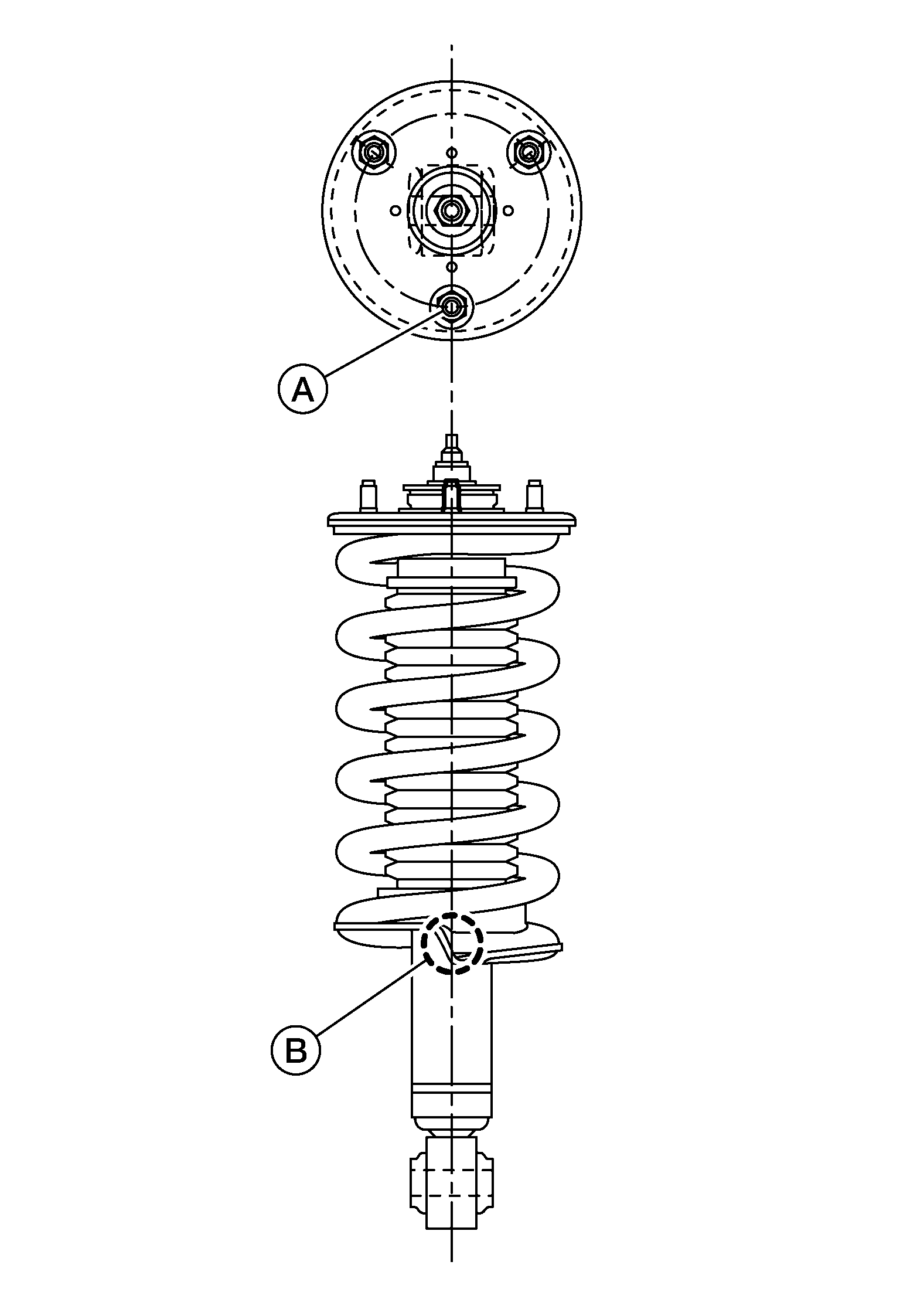

- When installing the front coil spring and shock absorber, be sure that one nut (A) which is aligned with the lower end of the front coil spring (B) is installed facing the inboard direction of the vehicle.
- If replacing the shock absorber, follow the disposal procedure to discard old shock absorber. Refer to Disposal .
- Check the wheel alignment. Refer to Inspection .
- Adjust the neutral position of the steering angle sensor. Refer to Description .
